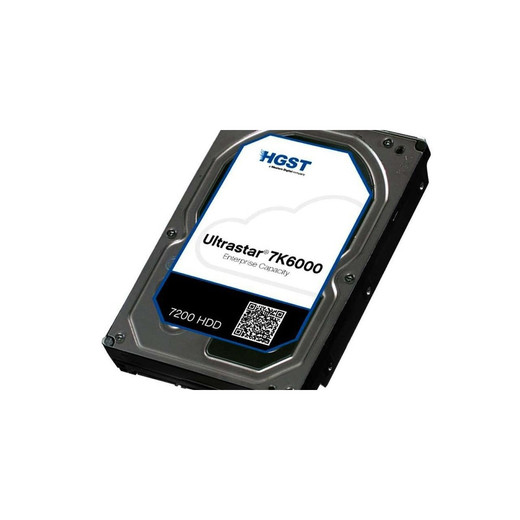

ACTi PHDD-2E01 14TB HGST Ultrastar 7K6000 Hard Drive
The ACTi PHDD-2E01 is a 14TB 3.5" SATA hard drive built on the HGST Ultrastar 7K6000 platform, engineered for continuous-duty surveillance recording across multi-channel NVR deployments. At 7200 RPM with 512MB cache, this drive is rated for 24/7 operation in mission-critical environments where thermal stability and reliability directly impact video availability. Unlike consumer-grade storage, the Ultrastar 7K6000 chassis includes enterprise workload optimization — higher vibration tolerance, predictable seek performance under load, and mean time to failure (MTBF) ratings aligned with surveillance duty cycles. Integrators specify this drive when expanding capacity on existing ACTi NVR systems, replacing failed units in production racks, or architecting new multi-camera deployments where per-terabyte cost and rack density are economic drivers.
Key Features
- 14TB Raw Capacity: 14TB per drive reduces the number of physical drives required for long-term retention, lowering chassis footprint and power consumption on larger installations.
- 7200 RPM Platform: 7200 RPM spindle speed with 512MB cache enables sustained throughput for continuous multi-stream recording without thermal throttling or performance degradation.
- HGST Ultrastar 7K6000 Design: Enterprise-class platform with rated MTBF and workload optimization for surveillance environments; higher vibration tolerance than consumer drives reduces edge-case failure modes in rack-mounted enclosures.
- 3.5" SATA Form Factor: Standard 3.5" drive bay and SATA interface compatible with ACTi NVR systems, third-party ONVIF-compliant recorders, and Linux-based storage appliances.
- 512MB Cache: Larger cache buffer improves sustained-write performance during high-bitrate multi-camera recording and reduces latency spikes during peak utilization.
- 24/7 Duty Rating: Designed for continuous operation in air-cooled data-center and rack environments; built for surveillance workloads, not occasional archival.
- 3-Year Warranty: Manufacturer warranty covers factory defects and provides replacement logistics for mission-critical deployments.
Surveillance NVRs operate differently than general-purpose storage systems. Consumer hard drives cycle through idle and active states; surveillance recorders demand predictable, sustained write performance across all 24 hours. The Ultrastar 7K6000 is firmware-tuned for this workload — vibration compensation, thermal monitoring, and predictable seek patterns under continuous load are baked into the platform. On a 16-camera 4MP installation recording at 8 Mbps per stream, the aggregate throughput approaches 128 Mbps; consumer drives begin thermal throttling at this load profile. The Ultrastar maintains performance envelope and reduces the risk of silent drops or corrupted frames that manifest only during forensic playback.
Form-factor compatibility spans the entire ACTi NVR product line and virtually all third-party ONVIF-compliant recorders with standard 3.5" SATA bays. Before installation, confirm your NVR firmware recognizes 14TB capacity — legacy BIOS versions (pre-2018) may cap detection at 2TB or 4TB per drive. Most modern appliances issue a BIOS patch to unlock larger capacity, available directly from the OEM. Once recognized, the drive integrates into the recorder's storage pool without special configuration; no custom drivers or firmware patches are required. The 512-byte sector format is standard across surveillance stacks, and the drive reports standard S.M.A.R.T. metrics to monitoring dashboards.
Installation best practices: Mount horizontally in a rack chassis or vertically in a desktop NVR enclosure, ensuring unobstructed airflow across the drive connector and case. Enterprise HDDs tolerate continuous operation but will thermal-throttle or fail if internal temperature exceeds 60°C sustained. Typical operating range is 35–55°C; installations in non-climate-controlled environments (electrical closets without dedicated cooling) require additional thermal management. Use standard SATA power and data cables; no specialized connectors. Ground yourself before handling to prevent electrostatic discharge damage to the controller board. After physical installation and power-on, allow 10 minutes for drive stabilization and firmware load before initiating first recording — initial seek latency can exceed normal operating values in the first moments after power-up, and buffering this brief window avoids framedrops during ramp-up.
Total cost of ownership favors the 14TB density on deployments exceeding 8 cameras or requiring retention periods longer than 30 days at 4MP resolution. A single 14TB drive replaces two or three 6TB units, reducing slot count, SATA cable routing complexity, and per-terabyte acquisition cost. Warranty is manufacturer-backed; AC Electronics (ACTi's parent distribution channel) provides replacement logistics on failure. For surveillance installations subject to ONVIF compliance mandates or multi-vendor interoperability requirements, this drive integrates transparently — no proprietary software, no firmware locks, no vendor lock-in on storage.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of these Ultrastar 7K6000 drives across multi-site surveillance projects, and the reliability story is straightforward: enterprise HDDs engineered for 24/7 duty cost more upfront but eliminate the false-economy trap of rotating consumer drives every 18 months. The PHDD-2E01 sits in that pragmatic middle ground — high capacity per drive, proven mean-time-to-failure metrics, and transparent ONVIF compatibility that removes vendor friction from large-scale integrations. In our experience, the real differentiator isn't raw speed (surveillance recording is sequential, not random-access); it's thermal stability and predictable seek latency under load. A consumer drive handling 128+ Mbps continuous throughput will begin throttling within hours; the Ultrastar is rated for that profile indefinitely. On a 20-camera installation, the operational cost savings from eliminating failed drives, reducing replacement labor, and avoiding forensic recovery scenarios pay back the acquisition premium within two to three years.
Technical Highlights:
- 7200 RPM with 512MB Cache: Spindle speed and cache buffer are optimized for surveillance workloads, not consumer archival. The combination sustains multi-stream write performance without throttling — critical when recording 8–16 cameras simultaneously. Consumer 5400 RPM drives degrade under this load; the 7200 RPM platform is mandatory for mission-critical installs.
- HGST Ultrastar Platform MTBF Rating: Enterprise-class reliability metrics — typically 1 million+ hours MTBF — reduce premature failure risk in 24/7 environments. Consumer drives are often rated 300k–500k hours, assuming 8-hour daily duty; surveillance use cases void that warranty quickly.
- 14TB Density at 3.5" Form Factor: Single-drive 14TB capacity reduces the physical footprint and cable clutter in legacy NVR chassis. A 20-camera 30-day retention build-out that required 6–8 drives in 2020 now fits in 2–3 slots, enabling denser utilization of existing rack space.
- Standard SATA Interface — Zero Vendor Lock-In: The drive works in any NVR with a 3.5" SATA bay — ACTi, Milestone, Genetec, Hanwha, or bare-metal Linux appliances. No proprietary firmware, no licensing per-drive, no firmware update dependencies.
- Thermal Tolerance and Vibration Compensation: Enterprise HDDs include firmware-level vibration compensation and thermal monitoring that consumer drives lack. In rack environments with multiple drives spinning simultaneously, this reduces seek-time variability and premature head-crash risk.
Deployment Considerations:
- Firmware Recognition of 14TB Capacity: NVRs manufactured before 2017–2018 may report the drive as unformatted or capped at 2TB. Confirm BIOS version supports 14TB LBA addressing — most vendors offer free firmware updates. This is a one-time fix before deployment, not a recurring issue.
- Thermal Management in Non-Climate-Controlled Enclosures: Ultrastar drives are rated to 60°C sustained operation, but performance begins to degrade above 55°C. Electrical closets or outdoor cabinets without dedicated cooling will require additional ventilation or thermal monitoring. Monitor S.M.A.R.T. temperature data during the first 72 hours of operation.
- SATA Power Budget at Scale: A single 14TB drive draws ~12W average under full load. A fully populated 4-bay NVR enclosure running four drives can exceed 50W sustained on power rails; verify the NVR PSU is rated for that load before installation to avoid brownouts or unexpected shutdowns.
- Initial Stabilization Period: Allow 10 minutes after power-on before initiating continuous recording. Early seek operations on a freshly powered drive exhibit higher latency; delaying the start of the recording stream avoids captured framerate drops in forensic footage.
- Warranty Coverage and Logistics: ACTi and affiliated distributors provide replacement drives on failure; typical RMA turnaround is 5–10 business days. For business-critical 24/7 deployments, maintain a spare 14TB drive on-site or negotiate next-business-day exchange terms with the vendor.
The PHDD-2E01 is the right choice for integrators building reliable, dense NVR capacity for multi-camera surveillance environments — especially projects with retention targets above 30 days or installations where drive failure directly impacts forensic evidence availability. This is not an archive drive; it's a production storage component engineered to outlast the application it supports. Pair it with a modern ONVIF-compliant NVR, and you've eliminated a major variable in system lifecycle cost. For more options across the ACTi product range, see the ACTi catalog.
