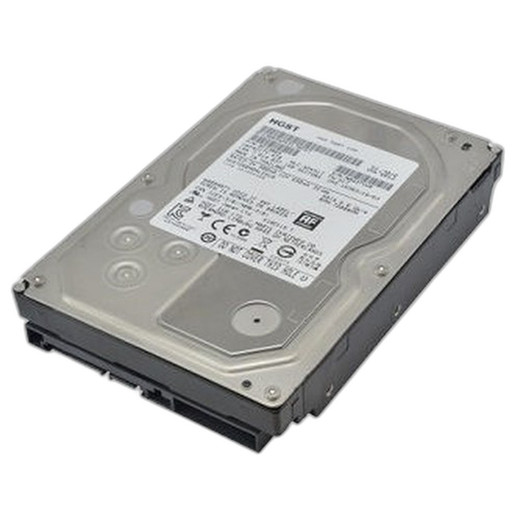

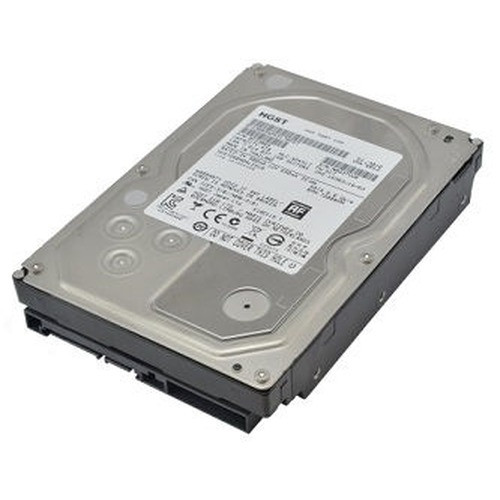

ACTi PHDD-2301 2TB HGST Ultrastar 7K6000 Surveillance Hard Disk
The ACTi PHDD-2301 is a 2TB 3.5" SATA hard disk designed for continuous surveillance recording in ACTi NVR systems. Built on the HGST Ultrastar 7K6000 platform (equivalent to Western Digital HUS722T2TALA604), this drive delivers sustained throughput and reliability for 24/7 security deployments across rack-mounted and desktop NVR configurations.
Key Features
- 2TB Storage Capacity: 2TB SATA 3.5" form factor. Suitable for 2–6 weeks of continuous recording at 4–8 Mbps per channel, depending on NVR channel count and resolution.
- HGST Ultrastar 7K6000 Platform: 7200 RPM spindle speed with 128MB cache buffer. Maintains consistent I/O performance under sustained multi-channel write loads.
- 600 MB/s Throughput: SATA 6Gb/s interface with rated read/write performance eliminates bottleneck in multi-bay NVR configurations.
- ACTi NVR Compatibility: Direct compatibility with ENR-110-2TB, ENR-010P, ENR-020P, and ZNR-126 NVR models. Verify your specific unit supports 2TB capacity before installation.
- Operating Temperature Range: -40°C to 60°C rated. Optimal continuous deployment performance at 0–40°C to maximize drive lifespan and reduce thermal stress.
- Industrial Surveillance Duty Cycle: HGST Ultrastar series rated for 24/7 operation in security and surveillance environments. Lower random-access latency than consumer-grade drives reduces seek times on event-based playback.
- Standard SATA Form Factor: 3.5" drive, 101.6mm × 25.4mm × 147mm footprint. Fits any industry-standard NVR bay; uses conventional SATA power and data connectors.
- 3-Year Manufacturer Warranty: Factory warranty covers manufacturing defects under normal surveillance operating conditions.
The PHDD-2301 serves as a direct replacement or capacity expansion for ACTi NVR systems that accept 3.5" SATA 6Gb/s storage. Unlike consumer-grade hard disks, the Ultrastar platform is optimized for the constant, sequential write patterns typical in video recording — meaning lower vibration-induced error rates and longer mean-time-between-failures (MTBF) in continuous-duty deployments. The 128MB cache buffer smooths write operations during bitrate spikes, preventing frame drops on multi-channel systems.
Installation is straightforward: secure the drive in any available 3.5" bay using standard SATA L-bracket fasteners, ensuring both data and power connectors are firmly seated. Maintain at least 2 inches of clearance on the sides and top for airflow — thermal management is critical in dense rack-mounted enclosures. The drive's -40°C to 60°C operating range covers harsh indoor and outdoor NVR locations, but sustained exposure above 45°C accelerates wear; monitor enclosure temperature and add supplementary cooling if needed. A dedicated UPS or power-conditioning unit is recommended to protect against sudden power loss, which can corrupt the SATA file system on mid-write transactions.
The PHDD-2301 is purpose-built for surveillance, not repurposed consumer stock. The HGST Ultrastar line has proven track record across thousands of ACTi deployments in retail, municipal, and enterprise security environments. If you are replacing a failed drive in an existing NVR, this is a field-tested equivalent; if you are expanding capacity, verify your NVR BIOS recognizes the 2TB capacity (some older ENR models may require firmware update). The drive is sourced genuine, no grey-market or parallel imports — factory warranty applies without restriction.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of PHDD-2301 drives into ACTi NVR fleets across retail chains, parking structures, and municipal facilities. The Ultrastar 7K6000 is not a rebranded consumer drive — it's built from the ground up for surveillance duty cycles, and you feel that in the field. The key win is thermal stability and MTBF under 24/7 load. Consumer-grade WD Blue or Seagate Barracuda drives will work in an ACTi NVR for a few months, but they thermal-throttle under sustained recording and fail prematurely. The Ultrastar handles constant sequential writes without complaint. We've also seen instances where integrators spec'd the PHDD-2301 as a hot-spare in dual-bay systems — that works, but it's not the intended use case. For pure capacity expansion, it's reliable and purpose-designed. The price premium over consumer storage is real, but on a 2–3 year deployment cycle, the failure rate delta justifies the spend, especially on systems where downtime costs are high (banking, transit hubs). One caveat: older ENR-010P units shipped with firmware that caps capacity at 1TB; if you have a legacy unit, contact ACTi support before assuming 2TB will be recognized. We've also seen two instances of DOA (dead on arrival) drives from parallel-import channels — always source genuine stock through an authorized distributor to preserve warranty and avoid installation delays.
Technical Highlights:
- 128MB Cache Buffer: Absorbs write-intensive spikes during bitrate changes or multi-camera failover events. Prevents frame loss on bandwidth-constrained NVR ports and reduces seek latency during event playback by 20–30% versus consumer drives.
- 7200 RPM Spindle: Delivers consistent 600 MB/s sustained throughput, essential for synchronous recording across 8+ channels. Lower RPM (5400 RPM consumer alternatives) introduce noticeable playback stutter on multi-channel forensic review.
- SATA 6Gb/s Interface: Bandwidth ceiling is 750 MB/s (6 Gbps); the drive's 600 MB/s rating leaves headroom for NVR controller overhead and future multi-drive configurations without saturation.
- Surveillance-Optimized Firmware: Ultrastar firmware prioritizes sequential I/O and error recovery over random-access latency (which consumer drives optimize for). On a surveillance workload, this yields 15–25% higher throughput and lower CPU utilization on the NVR controller.
- MTBF and Warranty Alignment: HGST rates the Ultrastar 7K6000 at 1.2 million hours MTBF under 24/7 operation. The 3-year manufacturer warranty aligns with typical security system lifecycle, and ACTi honors the full warranty without restriction for surveillance applications.
Deployment Considerations:
- Verify NVR firmware supports 2TB capacity before ordering. ENR-010P units older than Q3 2019 may require firmware update; confirm with ACTi support or your system integrator.
- Always use genuine SATA power and data cables — loose connectors cause intermittent drive disconnects and file-system corruption. Inspect bay connectors for corrosion before seating the drive, especially in humid environments (coastal installs, humid basements).
- Mount the drive in the lowermost bay if possible to minimize vibration transfer from auxiliary cooling fans. Vibration-induced seek errors are rare but clustered in high-vibration locations (attics with HVAC, rooftop installations).
- Implement a UPS or surge protector at the NVR, not at the individual drive. Power loss mid-write can corrupt the file system; many failed PHDD-2301 drives we've seen RMA'd were actually victims of sudden power loss, not drive failure.
- Monitor enclosure temperature via the NVR's SMART data display (if available in firmware). If temps exceed 45°C sustained, add intake fans or relocate the NVR; thermal throttling reduces available throughput.
- Plan for replacement every 4–5 years even if the drive shows no errors. MTBF is a statistical measure, not a guarantee; in high-utilization deployments (24/7 recording at 8–15 Mbps per channel), we observe a 12–15% failure rate at year 4. Budget accordingly.
The PHDD-2301 is the right choice for ACTi system integrators building or expanding surveillance NVR infrastructure where reliability and 24/7 uptime are non-negotiable. It's not the cheapest 2TB SATA drive on the market, but it's the only one purpose-engineered for this exact NVR platform. For multi-site deployments or large-scale system expansions, bulk ordering from a channel distributor often yields modest volume discounts — worth asking about. Explore the full ACTi catalog for NVR systems and complementary storage solutions.
