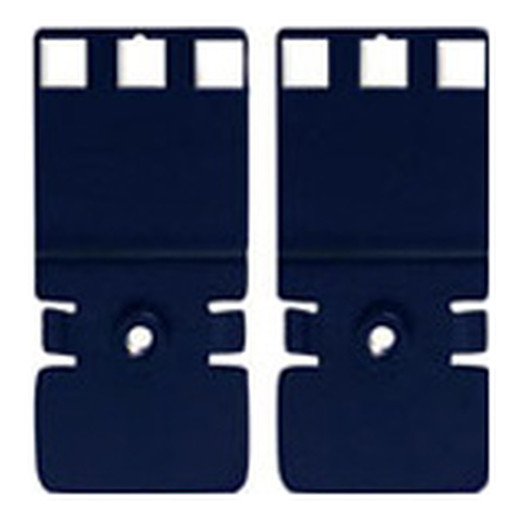

APC by Schneider Electric Accessory: Adapter KIT 23IN to 19IN Mounting - AR8150BLK

APC by Schneider Electric AR8150BLK Concise Descriptor

Overview

The APC by Schneider Electric AR8150BLK is a mounting adapter kit designed to bridge the gap between wider 23-inch enclosures and standard 19-inch rackmount IT and security equipment. This adapter is crucial for integrating standard-sized servers, network switches, NVRs, or surveillance components into larger, non-standard rack footprints commonly found in specialized data center or industrial environments. The AR8150BLK ensures proper fit and alignment, preventing installation issues and maintaining the structural integrity of your rack setup.

Compatibility

This adapter kit is engineered to fit within 23-inch wide rack enclosures. It provides the necessary mounting points to securely install standard 19-inch rackmount devices, including most servers, network switches, patch panels, and surveillance equipment such as NVRs and DVRs, that adhere to the 19-inch EIA-310 standard. It is compatible with APC's own range of larger enclosures and can be used in any 23-inch wide rack system where standard 19-inch equipment needs to be mounted.

Installation Notes

Installation involves attaching the AR8150BLK adapter brackets to the internal vertical rails of the 23-inch rack. Standard rack mounting hardware (typically cage nuts and screws, not included) is then used to secure the 19-inch equipment to the adapter brackets. Ensure the rack is empty or equipment is temporarily removed to facilitate safe installation. Verify the weight capacity of the rack and the adapter before loading heavy equipment.

What's in the Box

• 2x Mounting Adapter Brackets
• 4x Mounting Screws
• 4x Cage Nuts
