IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Vivotek

SKU: AM-11F

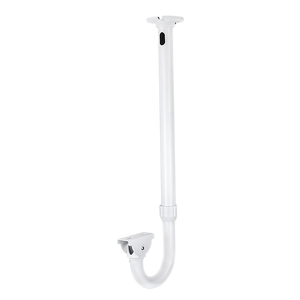

Vivotek AM-11F Ceiling Mount Bracket 120-180cm

Adjustable ceiling mount, 120–180cm reach, 360° rotation & ±80° tilt
- Aluminum construction with 96-hour outdoor protection for indoor/outdoor use
- 360-degree pan and ±80-degree tilt range for comprehensive camera positioning
- Complete mounting hardware included; fits ceiling heights from 120–180cm
Special Order · Ships in 2-3 weeks

$104.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-11G

Vivotek AM-11G Wall Mount Bracket

Aluminum wall mount bracket for secure outdoor camera installation
- Corrosion-resistant aluminum alloy construction rated for outdoor use
- Compact Ø 70 x 149 mm design at 340 g for space-constrained deployments
- Includes mounting hardware for quick wall installation and secure positioning
Special Order · Ships in 2-3 weeks

$159.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-216

Vivotek AM-216 15-Degree Wall Mount Bracket

Fixed 15-degree wall mount bracket for indoor/outdoor surveillance
- 15-degree fixed tilt angle optimizes camera positioning without pan-tilt
- Durable ABS+PC composite construction rated for indoor and outdoor use
- Compact 90.5 mm diameter design with complete mounting hardware included
Special Order · Ships in 2-3 weeks

$40.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: AM-218_V02

Vivotek AM-218_V02 Modular Wall Mount Bracket

Wall, pendant, and rack mounting from one modular bracket
- Supports wall, ceiling pendant, and rack installations without swapping hardware
- Compatible with AM-5xx adapter series for mixed camera models and sizes
- Integrates with AM-714/AM-719 junction boxes for organized cable routing
In stock · Ships same business day

$61.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-219

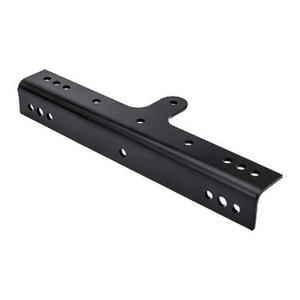

Vivotek AM-219 Dual AI-104 Illuminator L-Shaped Bracket

L-shaped bracket for dual AI-104 illuminators, 12 kg capacity
- Mounts two AI-104 illuminators with adjustable L-shaped positioning
- SPCC steel construction with black powder coat for outdoor durability
- Compact 310 x 90 x 40 mm design, includes complete mounting hardware
Special Order · Ships in 2-3 weeks

$90.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: AM-21A_V02

Vivotek AM-21A L-Shaped Wall Mounting Bracket

L-shaped aluminum wall bracket for fixed and varifocal cameras
- Aluminum alloy construction resists corrosion in commercial installations
- Compact 170 × 110 × 150 mm footprint minimizes wall protrusion
- Pre-drilled mounting holes with included hardware for quick setup
In stock · Ships same business day

$60.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-21B

Vivotek AM-21B Dome Camera L-Shape Mounting Bracket

L-shaped aluminum bracket for Vivotek dome cameras with compact, discreet mounting
- Aluminum alloy construction resists corrosion in indoor and outdoor installations
- L-shaped design optimizes camera angle flexibility and positioning in tight spaces
- Lightweight at 220g with included hardware for quick wall or corner installation
Special Order · Ships in 2-3 weeks

$59.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-21E

Vivotek AM-21E Box Camera Wall Mount Bracket

Aluminum wall mount bracket for Vivotek box cameras, indoor/outdoor
- Aluminum alloy construction rated for indoor and outdoor installations
- Compact 318 x 226 x 108 mm design minimizes visual footprint on walls
- Compatible with Vivotek box camera models for straightforward mounting
Special Order · Ships in 2-3 weeks

$137.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-21G_V01

Vivotek AM-21G L-Shape Dome Camera Bracket

L-shaped aluminum bracket for compact FD8366-V dome camera mounting
- Aluminum alloy construction at 320g fits tight spaces with 135 x 60 mm footprint
- L-shaped design mounts to walls or ceilings for discreet corner and edge placement
- Engineered specifically for Vivotek FD8366-V camera with full hardware included
Special Order · Ships in 2-3 weeks

$53.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-21L

Vivotek AM-21L Stainless Steel Wall Mount Bracket

Stainless steel wall mount for AE-510/510-I access readers
- Stainless steel construction resists corrosion in indoor/outdoor use
- Adjustable positioning angles for flexible reader alignment at entry points
- Wall-mount design simplifies installation across retrofit and new builds
Special Order · Ships in 2-3 weeks

$271.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: AM-21M

Vivotek AM-21M L-Shape Turret Dome Camera Bracket

L-shape wall bracket for Vivotek IT9380-HF2 turret dome camera
- Aluminum alloy construction resists corrosion and UV in outdoor/semi-outdoor
- L-shaped design positions camera tight to wall, reducing visual profile
- 354g weight dampens vibration for stable video in wind or movement
In stock · Ships same business day

$60.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: AM-21N

Vivotek AM-21N Multi-Sensor Camera Tilt Wall Mount

Adjustable wall mount for Vivotek MS9390 multi-sensor cameras
- Tilt positioning locks in place after installation for stable panoramic coverage
- Aluminum alloy construction resists corrosion in indoor and outdoor environments
- 3/4" NPF thread compatible with MS9390-HV and MS9390-EHV-v2 models
In stock · Ships same business day

$106.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-21O

Vivotek AM-21O L-Shape Dome Camera Mounting Bracket

L-shaped aluminum bracket for corner mounting FD93xx/FE93xx domes
- Aluminum alloy construction supports 9 Vivotek dome camera models
- Corner and edge mount design optimizes coverage in constrained spaces
- Complete fastener and hardware kit included for quick installation
Special Order · Ships in 2-3 weeks

$135.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-21P_V01

Vivotek AM-21P_V01 Universal Modular Mount Bracket

Universal modular bracket for wall, pole, corner, and rack mounting
- Compatible with SD9368-EHL, SD9384-EHL, SD9394-EHL IP cameras
- Aluminum alloy construction supports multiple mounting types without replacement
- Works with AM-314, AM-315, AM-414, AM-718 accessory ecosystem
Special Order · Ships in 2-3 weeks

$274.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-231

Vivotek AM-231 Parapet Mount Kit

Parapet mount kit for Vivotek SD83xxE speed domes on rooflines
- Purpose-built for parapet and roofline mounting on building edges
- Compatible with Vivotek SD83xxE series compact speed dome cameras
- Professional-grade construction for perimeter and facade surveillance
Special Order · Ships in 2-3 weeks

$775.99 $740.99 Save $35.00

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: AM-312_V03

Vivotek AM-312_V03 Pole Mount Adapter

Pole mount adapter for Vivotek cameras, 60–152mm diameter, outdoor rated
- Dual pole sizes (60mm or 90–152mm) with separate part numbers for exact fit
- SECC and stainless steel construction resists corrosion in outdoor environments
- Clamp-based installation requires no drilling, welding, or wall infrastructure
In stock · Ships same business day

$117.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Vivotek AM-11F Ceiling Mount Bracket 120-180cm

Vivotek AM-11G Wall Mount Bracket

Vivotek AM-216 15-Degree Wall Mount Bracket

Vivotek AM-218_V02 Modular Wall Mount Bracket

Vivotek AM-219 Dual AI-104 Illuminator L-Shaped Bracket

Vivotek AM-21A L-Shaped Wall Mounting Bracket

Vivotek AM-21B Dome Camera L-Shape Mounting Bracket

Vivotek AM-21E Box Camera Wall Mount Bracket

Vivotek AM-21G L-Shape Dome Camera Bracket

Vivotek AM-21L Stainless Steel Wall Mount Bracket

Vivotek AM-21M L-Shape Turret Dome Camera Bracket

Vivotek AM-21N Multi-Sensor Camera Tilt Wall Mount

Vivotek AM-21O L-Shape Dome Camera Mounting Bracket

Vivotek AM-21P_V01 Universal Modular Mount Bracket

Vivotek AM-231 Parapet Mount Kit

Vivotek AM-312_V03 Pole Mount Adapter

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
