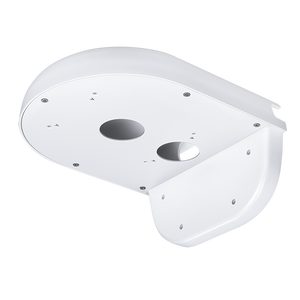

Vivotek AM-218_V02 Modular Wall Mount Bracket
The Vivotek AM-218_V02 is a modular mounting bracket engineered for integrators managing multi-site deployments where mounting configurations vary by location. Unlike single-configuration brackets that force you to stock multiple SKUs, the AM-218_V02 handles wall, pendant pipe, and rack mounting from one chassis—eliminating inventory complexity and reducing lead times when site conditions change mid-project.
Key Features
- Wall, pendant, and rack mounting from a single bracket— Deploy the same AM-218_V02 across ceiling-mounted dome cameras, wall-mounted turrets, and organized rack installations without purchasing separate hardware. This cuts your spare-parts inventory and accelerates swaps when a site requires configuration changes.
- Full compatibility with AM-5xx adapter series (AM-520, AM-519, AM-525, AM-527, AM-528)— The modular design accepts a wide range of camera mounting adapters, so you can pair the bracket with different Vivotek camera models and optical head sizes without mechanical rework or custom backing plates.
- Pendant pipe installation via AM-116 and AM-117 options— Mount directly to existing structural pipe or conduit for elevated, angled camera positioning. Particularly valuable in warehouses, transportation terminals, and retail ceiling grids where standard wall mounting isn't feasible. No custom drilling or structural modifications required.
- Integrated junction box compatibility (AM-714, AM-719)— Cable routing and termination stays organized behind a single junction point, improving both visual aesthetics and field serviceability. No dangling cable runs or exposed connectors that invite physical damage or become trip hazards in high-traffic areas.
- Standard 4-electrical box configuration— Integrates directly with existing building infrastructure: drywall, concrete, or aluminum framing. Installation crews can use standard electrical rough-ins and existing conduit runs without adapter plates or custom backing. This cuts labor time compared to brackets requiring mechanical modifications.
- Rated for permanent indoor and outdoor installations— Built to handle thermal cycling, humidity, and vibration without creep or material degradation. Suitable for climate-controlled offices, unheated warehouses, covered outdoor areas, and light-weather exterior installations. Confirm local environmental conditions before final mounting to ensure compliance with your site's thermal and moisture exposure.
Integration and Compatibility
The AM-218_V02 anchors a modular mounting ecosystem. Its architecture lets you standardize on a single bracket model across multiple buildings and retrofit projects—site-specific camera angles and heights are achieved by swapping adapters and pipe mounts rather than replacing the bracket itself. This modularity simplifies spare-parts management across dozens of installations and reduces the technical debt of maintaining multiple bracket variants.
When paired with Vivotek IP cameras and a network video recorder, the AM-218_V02 becomes part of a unified, OEM-validated mounting and cabling strategy. This reduces compatibility surprises and warranty disputes during commissioning and handover.
When to Choose a Different Approach
If your deployment requires ceiling-mount-only installations, or if you're standardizing on pendant-only configurations across a single facility, consider the manufacturer's dedicated pendant bracket line to reduce parts complexity. Similarly, if you need specialized thermal camera alignment, microphone mounting, or multi-unit gang installation (four or more cameras in a single enclosure), consult the Vivotek accessory catalog for purpose-built solutions tailored to those scenarios.
Deployment Considerations
The AM-218_V02's flexibility requires upfront planning: installers must determine the final configuration (wall vs. pendant vs. rack) and source appropriate adapters separately—this is not a single-SKU plug-and-play bracket. Before ordering, confirm your mounting surface type (drywall vs. masonry vs. aluminum framing), as fastener selection and installation time vary significantly. If you're retrofitting into existing electrical boxes, verify box depth and orientation to ensure the bracket mounts flush without rework.
Frequently Asked Questions
Q: Can the AM-218_V02 be mounted directly to concrete or masonry without a backing plate?
A: Yes, the standard 4-electrical box configuration allows direct installation into concrete and masonry with appropriate concrete anchors or expansion fasteners. Verify your fastener type matches the concrete strength rating; consult local building codes or the installation team on-site for compliance.
Q: What adapters do I need to pair the AM-218_V02 with my Vivotek camera?
A: The AM-218_V02 is compatible with the AM-5xx series: AM-520, AM-519, AM-525, AM-527, and AM-528. The specific adapter depends on your camera's optical head size and mount thread. Confirm your camera model and lens configuration before ordering.
Q: Does the AM-218_V02 work with junction boxes?
A: Yes, the bracket is compatible with Vivotek junction boxes AM-714 and AM-719 for organized cable termination and routing. These are sourced separately and should be ordered along with the bracket and adapters.
Q: Is the AM-218_V02 suitable for outdoor installations?
A: The bracket is rated for permanent indoor and outdoor installations and handles thermal cycling and humidity. However, confirm that your specific site environment (temperature range, rain exposure, UV intensity) aligns with the bracket's material specifications. For extreme weather or coastal salt-spray environments, verify with the manufacturer.
Q: Can I use the AM-218_V02 for both wall and pendant mounting on the same project?
A: Yes. The modular design supports wall, pendant (via AM-116 and AM-117 pipe mounts), and rack configurations on the same bracket. Plan your configuration upfront and order the appropriate adapters for each installation site.
Q: What fasteners are included with the AM-218_V02?
A: Fastener inclusion is not detailed in the available evidence. Consult the installation documentation or contact the manufacturer to confirm which anchors, screws, or bolts are included versus sourced separately for your mounting surface type.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Vivotek AM-218_V02 solves a real integrator pain point: managing mounting inventory across sites with different physical constraints. I've deployed brackets from single-purpose lines where you end up with a drawer full of unused hardware. This one—the AM-218_V02—collapses that problem through modular architecture. Wall, pendant, rack: one bracket, swapped adapters.
Technical Highlights:
- Standard 4-electrical box footprint— Works with existing drywall, masonry, and aluminum framing without custom backing plates. Installation time drops when you can use existing rough-in infrastructure instead of engineering workarounds on-site.
- AM-5xx adapter ecosystem (AM-520, AM-519, AM-525, AM-527, AM-528)— Five compatible adapters means you scale the bracket across multiple camera head sizes and optical configurations without re-designing the mechanical interface. Parts standardization reduces SKU sprawl and commissioning delays.
- Junction box integration (AM-714, AM-719)— Cable termination stays organized and hidden, which matters in visible retail or office environments. Eliminates the aesthetic liability of dangling connectors or exposed runs.
Deployment Considerations:
- Configuration planning upfront— The AM-218_V02's flexibility is only valuable if you decide wall vs. pendant vs. rack before ordering. Late-stage configuration changes mean adapter sourcing delays. Plan the mounting approach in your site survey.
- Fastener verification on mounting surface— Concrete, masonry, and aluminum framing each require different anchors. Confirm your fastener selection matches your surface type before installation—mismatches are a common cause of bracket creep or failure under load.
- Outdoor thermal cycling— Rated for outdoor permanent installations, but confirm your site's temperature extremes and humidity. Unheated warehouses in cold climates or salt-spray coastal zones may require additional corrosion mitigation or material certification beyond standard specs.
The AM-218_V02 makes sense for multi-site retail roll-outs, warehouse camera retrofits where you're mixing wall and ceiling mounts, and integrator shops managing 50+ installations where bracket standardization cuts labor and parts management overhead. Skip it if you're doing a single-building deployment with a locked mounting strategy—a dedicated bracket will be cheaper and faster.
