IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Hanwha

SKU: SPP-C08020E

Hanwha SPP-C08020E M12 Ethernet Cable 2M

M12-to-RJ45 cable with PoE++ power and IP68 sealed connectors
- PoE++ (802.3bt) delivers 51W at device for powered cameras in one cable
- IP68-rated M12 connectors seal out dust and moisture in outdoor deployments
- Dual-layer shielding (foil + braid) rejects EMI in industrial environments
Special Order · Ships in 2-3 weeks

$79.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPP-C08050E

Hanwha SPP-C08050E M12 Ethernet Cable 5M

M12-to-RJ45 Ethernet cable, 5M, IP68 rated for outdoor camera networks
- CAT6 S/FTP dual shielded construction handles -10°C to 50°C environments
- M12 8-pin x-coded connector with gold-plated contacts resists corrosion
- 5-meter length supports PoE++ (802.3bt) at 1 Gbps for security cameras
Special Order · Ships in 2-3 weeks

$97.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPP-C08100E

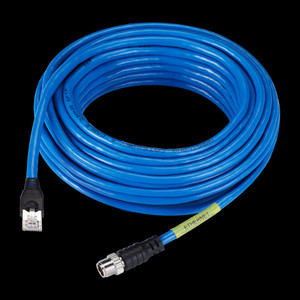

Hanwha SPP-C08100E M12 Ethernet Cable 10M

M12 to RJ45 industrial cable, 10m CAT6 S/FTP with PoE++ support
- IP68-rated for dust and moisture; operates −10°C to +50°C outdoors
- PoE++ (802.3bt) delivers 51W at device for high-power cameras
- CAT6 S/FTP dual shielding with gold contacts; 1 Gbps speed
Special Order · Ships in 2-3 weeks

$116.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPP-C12020P

Hanwha SPP-C12020P M12 Power Cable 2M

2M M12 power cable, IP67-rated for outdoor camera systems
- 12-pin female M12 L-coded connector with gold-plated contacts
- IP67 protection rated for dust and moisture in harsh environments
- 4.6A current capacity, ≥10 million bending cycles for field durability
Special Order · Ships in 2-3 weeks

$79.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPP-C12050P

Hanwha SPP-C12050P M12 Power Cable 5M

5M M12 power cable, IP67 sealed, 50–60VAC rated for industrial cameras
- Female M12 L-coded 12-pin straight connector with gold-plated contacts
- IP67 dust and moisture protection rated for 10M+ bending cycles
- 4.6A max at 80°C with TPU jacket for outdoor and high-vibration use
Special Order · Ships in 2-3 weeks

$97.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPP-C12100P

Hanwha SPP-C12100P M12 Power Cable 10M

10m M12 power cable with IP67 protection for surveillance installations
- IP67-rated L-coded connector handles dust and moisture in outdoor setups
- Gold-plated brass contacts resist corrosion; rated for 4.6A at 50–80VAC
- 10 million bending cycle rating withstands vibration in demanding environments
Special Order · Ships in 2-3 weeks

$116.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SPP-C1900

Hanwha SPP-C1900 HDMI Cable Pack 3-Pack

3-pack micro-HDMI cables 670mm for Hanwha surveillance camera setups
- Three 26.4-inch micro-HDMI cables per pack with copper coil construction
- Female-to-monitor, male-to-camera connectors for direct camera-to-display links
- Lightweight black cables designed for standard surveillance control room layouts
In stock · Ships same business day

$100.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPP-C45W

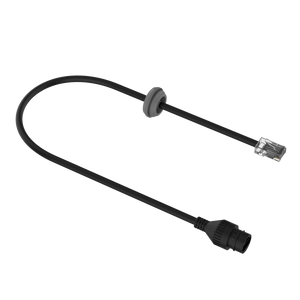

Hanwha SPP-C45W RJ45 Converting Cable

RJ45 converting cable for Hanwha QNV cameras, 335mm, 5-pack
- RJ45 plug-in to pigtail conversion simplifies field installations
- 335mm cable length enables flexible routing in tight spaces
- Five cables per pack support multi-camera deployments and spares
Special Order · Ships in 2-3 weeks

$67.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPP-C45WA

Hanwha SPP-C45WA RJ45 Converting Cable

RJ45 plugin-to-pigtail converter for Hanwha ANV/LNV dome cameras
- 335mm cable length with copper coil and black plastic sheath for outdoor use
- Pack of 5 cables at 22g each for flexible multi-camera installations
- Compatible with Hanwha ANV and LNV series outdoor dome camera lineup
Special Order · Ships in 2-3 weeks

$67.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SPP-C7200

Hanwha SPP-C7200 Audio and Alarm Cable

Audio and alarm cable for QND-C8013R and QND-C8023R dome cameras
- 700mm length with copper coil conductor for stable signal transmission
- 3-piece cable set with plastic sheath rated for indoor environments
- Black connectors for audio and alarm integration on Hanwha camera systems
Special Order · Ships in 2-3 weeks

$50.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: FC23-000011A

Hanwha SRN-4000 64-Channel 5MP Network Video Recorder

64-channel 5MP NVR with 400Mbps throughput and redundant storage
- Record all 64 channels simultaneously at 5MP with H.264 compression
- 12 hot-swap HDD bays with RAID 5/6 protection and iSCSI expansion
- Motion detection and object classification (people, car ID) on 4 channels
Special Order · Ships in 2-3 weeks

$8.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: STB-1520VW

Hanwha STB-1520VW Swivel Hanging Mount

360° swivel hanging mount for TNM-3620TDY camera positioning
- Full 360-degree rotation enables precise angle adjustment without moving camera
- 1.5" NPT thread standard with durable indoor/outdoor rated construction
- IP66 and IK10 ratings handle harsh environments from -40°C to +55°C
Special Order · Ships in 2-3 weeks

$130.00 $97.99 Save $32.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: STB-4150V

Hanwha STB-4150V Fixed Camera Mount

Pedestal mount for all box cameras—aluminum construction, floor or surface mount
- Universal compatibility with any box camera eliminates remounting between deployments
- Aluminum pedestal design resists corrosion in indoor and outdoor surveillance settings
- Floor or surface mounting option for elevated camera placement without wall infrastructure
Special Order · Ships in 2-3 weeks

$29.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: STB-5075W

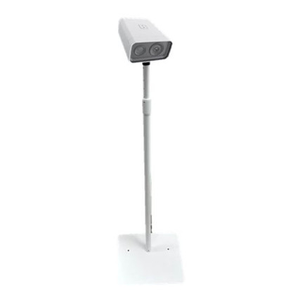

Hanwha STB-5075W Floor Stand for Box Cameras

Adjustable floor stand for box cameras, 50–75 inches with pan/tilt
- Height range 50–75 inches for optimal vertical positioning in any space
- Pan/tilt swivel adjustment to target specific coverage zones without repositioning
- Tool-free setup compatible with TNM-3620TDY and SPI-35B box cameras
Special Order · Ships in 2-3 weeks

$450.00 $337.99 Save $112.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: TNM-C4940TD

Hanwha TNM-C4940TD Dual-Sensor VGA-4K AI Bi-Spectrum Thermal Outdoor Varifocal IP Camera

4K + thermal dual-sensor outdoor camera with AI fire & intrusion detection
- 8MP 4K visual + uncooled thermal sensor; 30fps H.265 with 120dB WDR
- 2.2x motorized varifocal (4.4–9.3mm); sees in 0 lux with IR or thermal
- AI object detection, intrusion alerts, and temperature-based fire detection
Special Order · Ships in 2-3 weeks

$10,400.00 $6,973.99 Save $3,426.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: TNM-C4950TD

Hanwha TNM-C4950TD VGA-4K Dual-Sensor AI Bi-Spectrum Thermal Outdoor Varifocal Dome IP Camera

8MP 4K thermal + RGB dual-sensor dome for detection in darkness
- Dual 4K visible + thermal sensors with AI fire detection & temp anomaly
- Varifocal 2.6x zoom (10.9–29mm) with 120dB WDR for high-contrast scenes
- Outdoor-rated PoE dome, H.265 @ 30fps, uncooled thermal with <60mK NETD
Special Order · Ships in 2-3 weeks

$10,500.00 $7,040.99 Save $3,459.01

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Hanwha SPP-C08020E M12 Ethernet Cable 2M

Hanwha SPP-C08050E M12 Ethernet Cable 5M

Hanwha SPP-C08100E M12 Ethernet Cable 10M

Hanwha SPP-C12020P M12 Power Cable 2M

Hanwha SPP-C12050P M12 Power Cable 5M

Hanwha SPP-C12100P M12 Power Cable 10M

Hanwha SPP-C1900 HDMI Cable Pack 3-Pack

Hanwha SPP-C45W RJ45 Converting Cable

Hanwha SPP-C45WA RJ45 Converting Cable

Hanwha SPP-C7200 Audio and Alarm Cable

Hanwha SRN-4000 64-Channel 5MP Network Video Recorder

Hanwha STB-1520VW Swivel Hanging Mount

Hanwha STB-4150V Fixed Camera Mount

Hanwha STB-5075W Floor Stand for Box Cameras

Hanwha TNM-C4940TD Dual-Sensor VGA-4K AI Bi-Spectrum Thermal Outdoor Varifocal IP Camera

Hanwha TNM-C4950TD VGA-4K Dual-Sensor AI Bi-Spectrum Thermal Outdoor Varifocal Dome IP Camera

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
