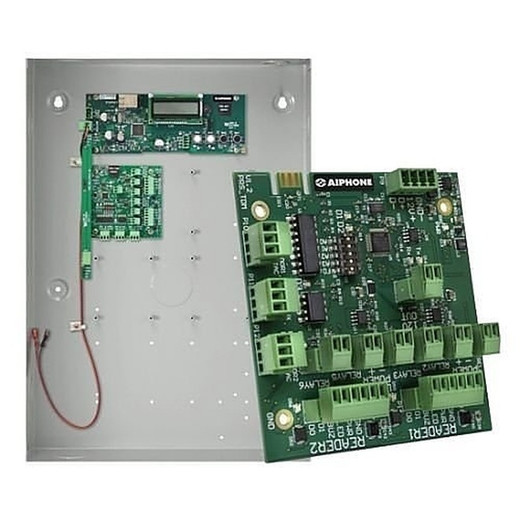

Aiphone AC Series 2-DOOR Starter Kit - the ACS-2DR-C Starter Kit Is a 2-8 Door Master Door

Aiphone ACS-2DR-C Concise Descriptor

Overview

The Aiphone ACS-2DR-C is a starter kit designed to manage two doors of access control, expandable up to eight doors. It provides the core components for integrating card readers, lock control, and door monitoring into a networked security system. This kit is suitable for small to medium-sized deployments requiring robust credential management and event logging.

Compatibility

This starter kit is built around the Aiphone AC Series access control system. It is designed to work with Aiphone AC-2DE controller boards, which handle the reader inputs and board communication. The system supports standard Wiegand readers and can store up to 100,000 users and 50,000 events. It utilizes IPv4 and IPv6 for network communication.

Installation Notes

The enclosure dimensions are 19-3/8" H x 13-5/8" W x 3" D, featuring 1-1/8" and 2" diameter knockouts for wiring. The system requires a 12V DC power source, drawn from the main board, and provides 12V DC at 500mA for lock and option power. Dry contact relays (two per door) and dry contact inputs (three per door) are available for alarm and lock status signaling. The system is UL 294 and ULC S319-05 listed.

What's in the Box

• 1x Steel Enclosure (19-3/8" H x 13-5/8" W x 3" D)
• 1x Lock/Option Power Supply (12V DC, 500mA)
• 2x Reader Inputs per AC-2DE
• 3x Dry Contact Inputs per door
• 2x Dry Contact Relays per door
