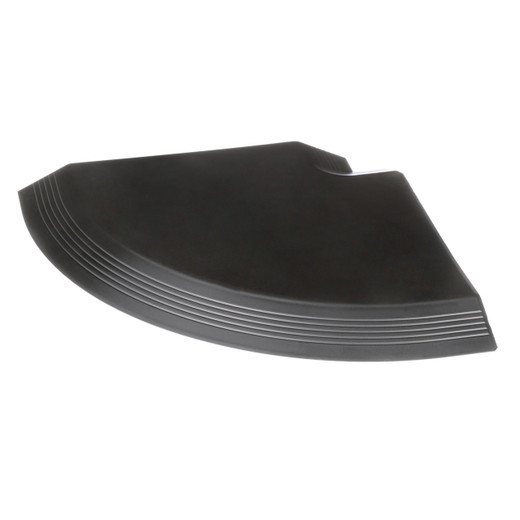

Panduit AFR4RAOS Pan-Way® Right Angle Outside Elbow
The Panduit AFR4RAOS delivers clean 90-degree cable routing around outside corners in surface raceway installations. Designed for the Pan-Way system, this right-angle outside elbow maintains proper bend radius for low-voltage, fiber optic, and power cabling while presenting a finished, professional appearance in commercial spaces. The 8.03-inch square footprint provides ample channel width for multi-cable runs, and the Office Slate finish integrates with modern workspace aesthetics.
Key Features
- Right-angle outside elbow fitting for Pan-Way surface raceway systems
- Office Slate ABS construction with UL94V-0 flame rating for fire safety compliance
- 8.03" × 8.03" footprint accommodates multi-conductor low-voltage and fiber bundles
- UL-5A and CSA C22.2 No. 62.1-03 rated for 600VAC applications
- Compatible with Panduit Pan-Net and Net-Key communication systems
- RoHS compliant for environmentally responsible installations
Surface raceway systems solve the cable-routing challenge in retrofit and open-plan environments where in-wall or overhead runs aren't feasible. The AFR4RAOS outside elbow handles the specific geometry of outside corners—where standard raceways leave gaps or require field-cutting workarounds. The molded ABS fitting snaps into place, creating a continuous channel that protects cables from foot traffic and rolling equipment while maintaining the minimum bend radius required by TIA-568 and fiber optic standards. The 14.7mm height profile keeps the raceway low enough to avoid trip hazards yet tall enough to stack multiple Cat6A, fiber, or 18 AWG power cables without crushing.
In commercial deployments—office expansions, open workstations, retail point-of-sale islands, or conference room builds—this fitting pairs with Panduit's straight raceway sections, inside elbows, tees, and base/cover components to route structured cabling along baseboards, up columns, and across floor transitions. The Office Slate color coordinates with Panduit's raceway family and blends into typical commercial interiors without the visual clutter of exposed cable bundles or the cost of core-drilling concrete floors.
The UL94V-0 flame rating and 600VAC electrical rating meet National Electrical Code requirements for plenum-adjacent and general-use spaces. The ABS material resists impact from carts and chairs, won't yellow under fluorescent lighting, and maintains dimensional stability across typical HVAC temperature swings. Each fitting ships individually packaged; cartons of 10 simplify job-lot ordering for phased deployments or multi-floor installations.
