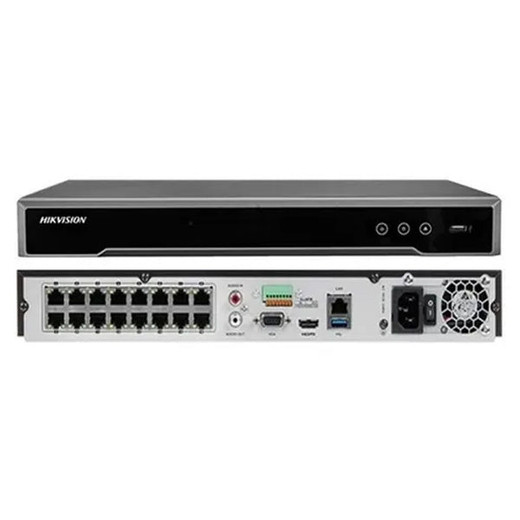

Hikvision DS-7616NI-Q2/16P 16-Channel 8MP Network Video Recorder
The Hikvision DS-7616NI-Q2/16P is a professional 16-channel network video recorder engineered for mid-to-large deployments where high-resolution recording and operational efficiency matter equally. This compact 1U unit records all 16 channels simultaneously at 8MP (3840×2160) and 30fps—delivering the image detail necessary for facial identification and license plate verification across retail, enterprise campus, transportation, and municipal environments.
Core Recording and Playback
- 16-Channel 8MP at 30fps: Records across all 16 channels without bitrate rotation or compromise. At this resolution, you capture fine detail needed for forensic investigation and liability documentation without overprovisioning for overkill resolution.
- H.265+ Video Compression: Cuts bandwidth and storage footprint roughly 50% compared to H.264—measurable when you're running 24/7 recording across 16 channels. Lower bandwidth means less strain on your network infrastructure; lower storage demand reduces annual drive replacement cycles.
- Dual Simultaneous Playback Outputs: 4K HDMI (3840×2160 at 30Hz) and VGA (1920×1080 at 60Hz). Run live monitoring on the HDMI while presenting forensic evidence on the VGA to another team—no recorder restart, no output switching.
- Synchronous 16-Channel Playback: Step through all 16 streams frame-by-frame or search by time across all channels at once. Critical for incident timelines spanning multiple camera angles.
- Flexible Resolution Recording: Scale down to 1080p, 720p, or QCIF per channel to optimize bandwidth for low-traffic zones while maintaining 8MP in high-value areas. No one-size-fits-all penalty.
Storage, Power, and Network
- Up to 16TB Local Storage: Two SATA drive bays accept 8TB drives each. Retention calculations: at 8MP H.265+ with moderate scene complexity, 16TB typically holds 30–45 days of continuous 16-channel recording. Upgrade or add external storage as deployments expand.
- Integrated 16-Port PoE Switch: Eliminates the need for a separate PoE switch. Power and data travel over one cable to each camera—simplifies installation, reduces cabinet clutter, and keeps power delivery consolidated. Supports IEEE 802.3af/at standards.
- Single Gigabit Ethernet: 160 Mbps incoming, 80 Mbps outgoing bandwidth. Sufficient for remote access and multi-user playback without saturation in typical deployments. TCP/IP, DHCP, DNS, DDNS, NTP, HTTPS, and Hik-Connect protocol support enable cloud-assisted remote viewing and management.
- microSD Card Backup: Portable backup slot for critical event footage or configuration export without tying up a SATA bay.
Intelligence and Connectivity
- Human and Vehicle Analysis: On-board deep learning flags human and vehicle events, reducing false alarm volume from lighting changes or foliage movement. Allows security teams to focus investigation time on genuine incidents rather than noise.
- Audio In/Out: 1-channel RCA audio output; 2-way audio input support. Enables two-way intercom from the NVR or audio playback during forensic review—useful for retail loss-prevention scenarios or facility access control integration.
- USB Connectivity: Two USB 2.0 ports for external storage export and peripheral pairing (keyboard, mouse, external drive).
Physical and Environmental
Ultra-compact 1U form factor: 385mm W × 315mm D × 52mm H, weighs 2.6kg. Mounts in standard 19-inch racks or wall-hung on a shelf. Operating range -10°C to +55°C with 10–90% humidity tolerance—suitable for climate-controlled equipment rooms, not outdoor or unheated spaces. Power consumption under 150W ensures modest electrical draw and cooling overhead.
Integration Considerations
The DS-7616NI-Q2/16P integrates with any ONVIF Profile S/T-compliant IP camera and supports network video recorders compatible with standard VMS platforms via ONVIF. Hik-Connect cloud service simplifies remote mobile access without complex firewall rules. If you require advanced analytics (people counting, loitering detection, heat mapping), evaluate complementary Hikvision IP cameras with built-in deep learning—offloading analytics to edge devices reduces NVR processor load and improves responsiveness.
Frequently Asked Questions
Q: Can I mix camera resolutions—some 8MP, some 1080p—on the DS-7616NI-Q2/16P?
A: Yes. The NVR records whatever resolution each camera sends; you're not forced to normalize across channels. Useful for deploying 8MP in high-value zones (entrance, parking lot) and 1080p in corridors where detail is secondary.
Q: What happens if I exceed the 16TB storage limit?
A: Oldest footage is overwritten automatically in circular recording mode—no video is lost, but retention is finite. Plan retention using the manufacturer's capacity calculator based on your average bitrate and review the NVR storage planning guide for retention math specific to your scene type.
Q: Does the DS-7616NI-Q2/16P support external NAS storage?
A: No, the unit does not include NAS connectivity. Storage is limited to local SATA drives and microSD backup. If you need unlimited retention or multi-site archival, consider a separate NAS paired with the unit's USB export function, or evaluate higher-end models in the Hikvision catalog that support NAS integration.
Q: Can I decode 8MP video while recording—for live monitoring?
A: Yes, but with limits: one channel at 8MP/30fps or five channels at 1080p/30fps decoded simultaneously for display. Monitor all 16 channels live by viewing the grid on the HDMI/VGA output without individual decode overhead.
Q: Is the integrated PoE switch sufficient for all 16 cameras?
A: Yes, if each camera draws under 30W. IEEE 802.3af/at limits apply per port. Verify camera power specifications before commissioning—high-power PTZs or 20+ watt cameras may require a separate external PoE supply or dedicated PoE++ switch for that channel.
Q: What's the warranty coverage for the DS-7616NI-Q2/16P?
A: Standard manufacturer warranty applies; review the terms supplied at point of purchase for defects coverage and RMA procedures. Extended warranty options may be available through authorized dealers.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Hikvision DS-7616NI-Q2/16P solves a genuine problem in mid-market surveillance: you need high-resolution recording across many channels without the complexity and cost of distributed edge storage or external NAS dependency. The integrated 16-port PoE switch eliminates a separate infrastructure component—one less thing to power, cool, and maintain. H.265+ compression at 8MP is the efficiency win here; dropping bitrate by 40–50% without resolution compromise means you can deploy longer retention or accept tighter network budgets than H.264 would allow.
Technical Highlights:
- 8MP simultaneous 16-channel recording at 30fps: Ensures consistent detail across all channels—no frame-rate dropping, no resolution rotation. Critical for deployments where any single zone might be the focus of forensic investigation.
- H.265+ compression delivering 50% bandwidth/storage savings: A measurable operational cost reduction. On a 16-channel recorder running 24/7, that savings compounds monthly. You recover drive replacement cycles and network headroom.
- Integrated 16-port PoE switch (802.3af/at): Eliminates external PoE infrastructure for standard-power cameras. Simplifies rack or wall-mount installations and reduces total cost of ownership by folding power delivery into the recorder footprint.
- Dual 4K HDMI + VGA simultaneous output: Independent monitoring and evidence playback without recorder reconfiguration. Practical for SOCs running live walls while investigators pull forensic clips to a secondary display.
Deployment Considerations:
- Storage calculation is critical: 16TB at 8MP H.265+ yields roughly 30–45 days of continuous 24/7 recording depending on scene motion and complexity. If you need 60+ day retention, plan for external backup or NAS integration before deployment.
- The single Gigabit Ethernet port (160 Mbps in, 80 Mbps out) is adequate for typical multi-user remote access, but don't expect this unit to stream all 16 channels at full 8MP to external viewers simultaneously. Local playback and occasional remote clips are the design intent.
- Deep learning analytics (human/vehicle detection) run on the NVR CPU—if you deploy high-bandwidth streams and enable analytics on all 16 channels, processor load becomes a factor. Test your camera mix and analytics load before full deployment.
Best suited for enterprise campuses, retail chains, municipal facilities, and transportation hubs where 8MP detail across 16 zones is non-negotiable but where you can accept local storage limits and want to avoid NAS overhead. The 1U compact form factor and integrated PoE make this a natural fit for distributed edge recording in multi-building environments where each site runs one or two recorders rather than a centralized hub.
