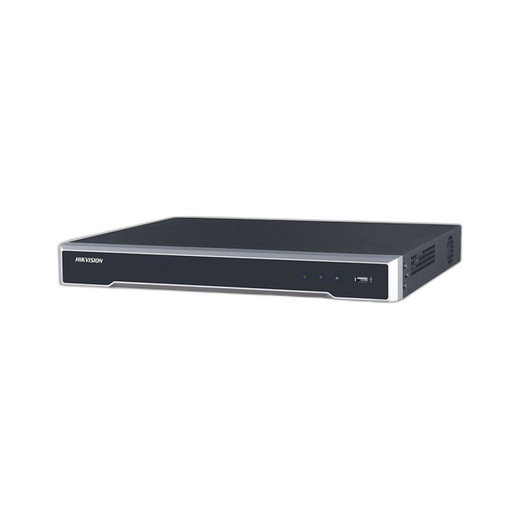

Hikvision DS-7616NI-Q2/16P-4TB 16-Channel 4K NVR with 4TB Storage

The DS-7616NI-Q2/16P-4TB is a compact 1U network video recorder designed for mid-to-large surveillance deployments requiring simultaneous 4K recording across 16 camera feeds. Pre-loaded with 4TB of internal storage, this unit ships ready to deploy and scales to 8TB per drive for extended retention. The architecture prioritizes efficiency: H.265+ compression reduces storage and bandwidth consumption by roughly 50% versus H.264, a meaningful savings when recording continuously across 16 channels. Incoming bandwidth load reaches 160 Mbps, so dedicated Gigabit connectivity is required rather than shared office networks.

Key Features

• 12MP (4K) Simultaneous Recording on All 16 Channels: Captures full 4K resolution at 30 fps across every connected camera feed without degradation, enabling detailed forensic review and real-time monitoring of separate zones without resolution compromise.
• H.265+ Codec: Advanced compression cuts bitrate and storage footprint roughly in half compared to H.264. At 16 channels continuous, this difference translates to halving your hard-drive replacement cycle or doubling retention window with the same storage budget.
• Dual SATA Hard Drive Bays: Supports two 3.5-inch drives up to 8TB each, permitting either redundant mirroring for critical installations or expanded capacity for long-term retention. Pre-installed 4TB drive gets you operational immediately; upgrade or add a second drive as retention demands grow.
• Integrated 16-Port PoE Switch (IEEE 802.3 af/at): Eliminates the need for a separate PoE injector or managed switch for camera power distribution. Powered cameras connect directly to the NVR's RJ-45 ports, simplifying rack integration and reducing cabinet footprint.
• Dual Video Outputs (4K HDMI + VGA): Permits independent monitoring on two displays—one for live viewing, one for incident playback—without switching cables or loss of signal. Both outputs run simultaneously and independent.
• 16-Channel Synchronous Playback: Review all 16 feeds at once during investigation and forensic analysis, critical for correlation of events across zones without manual switching between channels.
• Human and Vehicle Analytics: On-device AI detection reduces false alarms by classifying moving objects as people, vehicles, or animals, lowering operator fatigue from spam alerts and improving response prioritization.
• Two-Way RCA Audio: Supports both audio input from cameras and output for two-way voice communication, enabling remote instructions or incident response coordination without separate intercom hardware.
• 1U Rack-Mount Form Factor: Compact 385 × 315 × 52mm footprint integrates into standard server racks alongside switching and patch infrastructure. Weighs under 2.6kg—minimal weight for secure shelf or rack mounting in populated network cabinets.

Network and Playback Capability

The DS-7616NI-Q2/16P supports standard IP protocols (TCP/IP, DHCP, DDNS, DNS, NTP, SMTP, NFS, iSCSI, UPnP, HTTPS) for both local and remote monitoring. Decoding capacity allows either 1 channel of 8MP at 30 fps or 5 channels of 1080p simultaneous playback—useful when reviewing multiple zones during incident investigation without taxing the processor. Single Gigabit Ethernet (10/100/1000 Mbps) handles 160 Mbps incoming bandwidth from cameras; ensure your network backbone and switches support this throughput without congestion.

Power and Operating Environment

Operating power draw is under 150W, with 15W standby consumption—typical for a compact NVR. Accepts 100–240V AC input and complies with IEEE 802.3 af/at PoE standards for powering connected devices. Temperature tolerance of –10 to +55°C and humidity range of 10–90% suits typical server rooms and secure facilities; outdoor or uncontrolled environments may require additional thermal management or enclosure upgrades.

Integration and Compatibility

The NVR supports Hikvision IP cameras and complies with ONVIF standards for third-party camera integration. MicroSD card support provides local backup capability separate from the hard drives. For deployments requiring integration with a video management system (VMS), confirm your VMS vendor's ONVIF Profile support and test compatibility before full deployment.

Frequently Asked Questions

Q: What is the storage duration on the pre-installed 4TB drive?

A: With H.265+ compression at 12MP across all 16 channels, expect approximately 15–20 days of continuous recording. Actual duration varies based on scene complexity, motion activity, and frame-rate adjustments. High-motion retail environments record faster; static warehouse scenes record longer.

Q: Can I upgrade to 8TB drives later?

A: Yes. The dual SATA bays support up to 8TB per drive. You can replace the pre-installed 4TB or add a second 8TB drive for redundancy or expanded retention without replacing existing hardware.

Q: Does the DS-7616NI-Q2/16P-4TB support ONVIF-compliant cameras from other brands?

A: Yes, the NVR supports standard ONVIF Profile S cameras. Non-Hikvision cameras may lack some advanced analytics features, but basic recording and playback operate normally. Test compatibility with your target camera models before purchase.

Q: What bandwidth does this NVR require from my network?

A: Incoming bandwidth from cameras reaches 160 Mbps. You need a dedicated Gigabit Ethernet link (not shared with office traffic) and a network switch capable of sustained 160 Mbps throughput to avoid packet loss and dropped frames.

Q: Can I monitor remotely over the internet?

A: Yes. The unit supports HTTPS, DDNS, and standard IP protocols for secure remote access. Configure firewall rules and DDNS on your network gateway, then use Hikvision mobile apps or a web browser for remote viewing.

Q: Is there redundancy or failover if a hard drive fails?

A: The two SATA bays permit drive mirroring for redundancy, but you must configure this in the NVR settings. The pre-installed 4TB is a single drive—add a second 8TB drive and enable mirroring to protect against single-drive failure.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-7616NI-Q2/16P-4TB sits at the crossroads of compact form and real throughput demand. This is not a small-office NVR—the 160 Mbps incoming bandwidth and 16 simultaneous 12MP streams require dedicated network infrastructure and careful capacity planning. If your facility treats surveillance as an afterthought on a shared office network, this unit will drop frames and frustrate operators. Plan accordingly.

Technical Highlights:

• H.265+ Codec Impact: Cutting bitrate in half versus H.264 means 4TB supports 15–20 days of continuous 4K recording instead of 7–10 days. On a 5-year NVR lifecycle, that's fewer drive replacements and lower TCO for storage—quantifiable savings on repeat capital expense.
• Integrated 16-Port PoE Switch: Eliminates a separate switch or injector. Each powered camera connects directly to the NVR's RJ-45 port, drawing power under 802.3af/at limits. Simplifies rack cabling and reduces single points of failure in power distribution.
• 1U Rack Profile: 385 × 315 × 52mm footprint and sub–2.6kg weight fit standard server racks without thermal or weight constraints. Sits easily alongside network switches, patch panels, and UPS infrastructure in tight cabinet spaces.

Deployment Considerations:

• Network Backbone Validation: 160 Mbps is not trivial. Your Gigabit switch must support sustained throughput to multiple downstream devices. Test or provision a dedicated VLAN and monitor switch CPU/memory during peak recording to avoid oversubscription.
• Storage Math: The 4TB base drives 15–20 days at 12MP 30 fps. If you need 30–60 days, add the optional second 8TB drive. Mirroring halves usable capacity but adds resilience—weigh retention risk against drive-failure risk for your facility's tolerance.
• Heat and Power Density: Under-150W operation is favorable for most server rooms, but confirm your rack's power distribution and cooling can handle the NVR plus 16 powered cameras (aggregate could reach 300–500W depending on camera models). Plan ventilation.

Choose this NVR for retail centers, corporate campuses, warehouses, or transportation facilities where simultaneous multi-zone 4K recording and compact rack mounting are non-negotiable. Avoid it if your network cannot sustain 160 Mbps or if you need archival-grade 90+ day retention on a single appliance.
