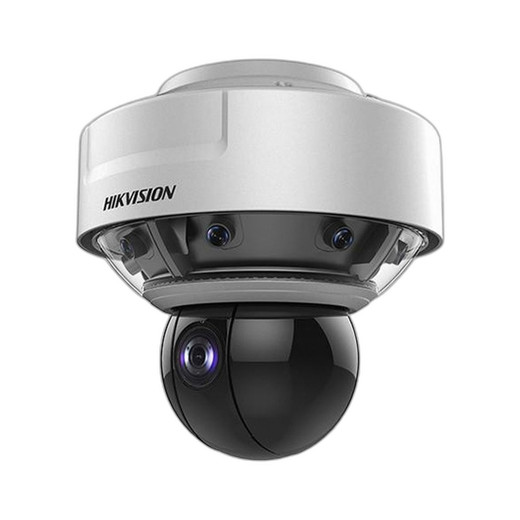

Hikvision DS-2DP1636ZIX-D 16MP Panoramic PTZ Dome

Hikvision DS-2DP1636ZIX-D 16MP Panoramic PTZ Dome Camera

The Hikvision DS-2DP1636ZIX-D represents a breakthrough in panoramic surveillance, combining eight 1/1.8" progressive scan CMOS sensors to deliver seamless 360° horizontal coverage with 80° vertical field of view. This innovative multi-sensor architecture eliminates blind spots entirely, while an integrated 36× optical zoom PTZ module enables operators to zoom into specific areas of interest without sacrificing panoramic context. Purpose-built for large outdoor deployments—city centers, transportation hubs, industrial campuses, and critical infrastructure—this camera merges wide-area situational awareness with precision detail capture in a single unit.

Key Features

• 360° Panoramic + PTZ Hybrid: Eight sensors provide complete horizontal coverage; integrated PTZ delivers 62.5° to 1.9° horizontal zoom with 36× optical magnification
• 16MP Resolution: Main stream up to 4096×1800 at 30fps (60Hz); multiple compression formats including H.265+, H.265, H.264+, and H.264
• Extreme Low-Light Performance: Color imaging at 0.002 Lux, B/W at 0.0002 Lux, and 0 Lux with smart IR (200m range)
• Advanced Smart Analytics: Intrusion detection, line crossing, region entrance/exit detection, face capture, and multiple target tracking (up to 30 simultaneous targets)
• Intelligent Tracking: Auto/manual/mixed tracking modes with <1s target switch time and up to 60s tracking duration
• Professional PTZ Controls: 300 presets, 8 patrol paths (32 presets per patrol), 4 recordable patterns, and 7 park action modes
• Superior Image Processing: 120 dB WDR, 3D DNR, optical defog, HLC, and EIS for optimal clarity in challenging conditions
• Industrial-Grade Durability: IP66 rated, 6000V lightning protection, surge protection, and operation from -40°C to 70°C

Technical Specifications

• Sensor & Optics: Eight 1/1.8" progressive scan CMOS; 5.0mm F2.0 lens with 5.6–208mm focal range
• Connectivity: 1× Gigabit Ethernet, 1× 1000M fiber interface (FC, 20km range), 7-ch alarm input/2-ch output, 1-ch audio in/out
• Power & Network: PoE (36 VDC, 130W max); supports TCP/IP, IPv4/IPv6, RTSP, RTCP, RTP, SNMP, DDNS, NTP, and UPnP
• API & Integration: Open-ended architecture with ONVIF, Hikvision SDK, and third-party platform support
• Storage: 128GB onboard capacity; microSD card support for flexible backup options
• Pan/Tilt: 360° pan, -15° to 90° tilt; manual speed 0.1–210°/s (pan) and 0.1–150°/s (tilt); preset speeds up to 240°/s

Applications

Ideal for securing expansive outdoor environments requiring both panoramic situational awareness and rapid zoom-in capability: transportation terminals, airports, city centers, parking facilities, perimeter security, industrial complexes, and large commercial properties.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-2DP1636ZIX-D addresses a critical gap in surveillance: the need to monitor vast areas without sacrificing detail. Traditional panoramic cameras sacrifice zoom capability; pure PTZ cameras create coverage gaps. This camera's hybrid architecture—eight panoramic sensors plus integrated PTZ—delivers true situational awareness.

The 36× optical zoom (1.9° horizontal FOV) with 5.6–208mm focal range ensures facial recognition and license plate capture at distance. Smart IR with adjustable brightness and angle, combined with 0.002 Lux color sensitivity, enables continuous monitoring across night and day cycles. The H.265+ compression—standard across main, sub, and tertiary streams—optimizes bandwidth and storage for enterprise deployments.

Advanced tracking (30 simultaneous targets, <1s switch time) and intelligent event detection (intrusion, line crossing, face capture) automate threat identification. The fiber optic interface (20km transmission, 1310/1550nm wavelengths) supports long-distance backbone deployment without signal degradation. IP66 protection, 6000V surge suppression, and -40° to 70°C operation rating ensure year-round reliability in harsh outdoor conditions.

For large-scale surveillance requiring panoramic coverage plus zoom-capable PTZ in a single form factor, this camera eliminates costly multi-unit deployments.
