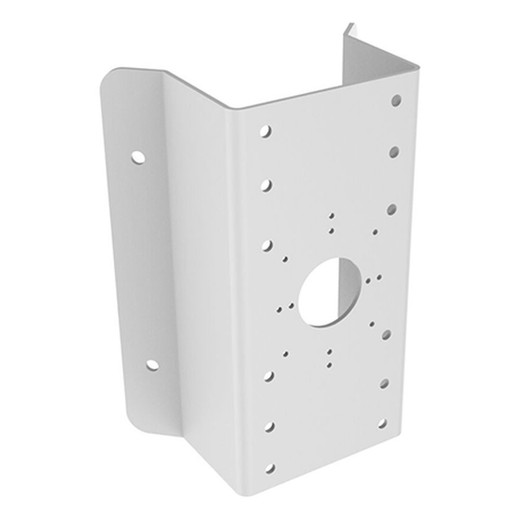

Hikvision CM Corner Mount Adapter, White

Hikvision CM Corner Mount Adapter, White

The Hikvision CM is a precision corner mount adapter engineered to position surveillance cameras in corner installations where standard brackets fall short. Built from die-cast aluminum alloy and finished in white, the CM delivers the mechanical stability needed for both indoor and outdoor deployments without aesthetic compromise.

Key Features

• Die-cast aluminum alloy construction: Resists corrosion and UV degradation across temperature swings—a real factor in outdoor perimeter or dock installations where steel brackets would rust within months and plastic would warp.
• 22 lbs (10 kg) maximum load capacity: Accommodates most standard surveillance cameras including compact bullets, small turrets, and lightweight PTZ models. Know your camera weight in advance; exceeding this limit risks bracket failure and liability.
• Corner mount geometry: Positions cameras at building corners, eaves, or structural protrusions where coverage overlaps meet. Tighter fields of view and reduced glare compared to wall-flush mounting.
• White finish: Blends into light-colored building surfaces, reducing visual profile in office, retail, or campus environments. Easier to match architectural trim than black or unpainted metal.
• Installation on flat surfaces: Mounting surface must support 3x the combined bracket-and-camera weight. Concrete, steel, or heavy-gauge wood work; drywall alone does not. Pre-drill and use appropriate anchors—this is non-negotiable for safety and warranty.
• Includes mounting hardware: Ship-ready with fasteners; no separate trip to the parts bin required.

Integration & Compatibility

The CM is compatible with Hikvision IP cameras and most third-party surveillance cameras weighing under 22 lbs. Verify camera mounting interfaces before order—some lightweight models use non-standard thread patterns or proprietary bases. Pair the CM with Hikvision IP cameras or compatible models from other vendors. If you're designing a multi-camera system, consult your mounting hardware guide to confirm all bracket selections share the same anchor type and load ratings.

Deployment Contexts

Ideal for retail environments, office buildings, warehouses, and perimeter security where corner positioning optimizes coverage overlap and reduces blind zones. High-vibration or exposed outdoor conditions (loading docks, industrial sites) benefit from the aluminum rigidity—plastic or thin-wall brackets deflect under wind load or impact, causing drift and FOV loss over time.

Frequently Asked Questions

Q: Can I mount the CM on drywall or plaster alone?

A: No. The mounting surface must support 3x the combined bracket-and-camera weight. Use concrete, steel, or solid wood. On drywall, use heavy-duty toggle bolts or find a wall stud, and verify the anchor rating meets the load requirement.

Q: What camera weight should I target for the CM?

A: Stay well below 22 lbs—aim for 10–15 lbs maximum to leave safety margin. Heavier loads reduce bracket lifespan and risk creep or sudden failure under vibration or wind.

Q: Is the CM suitable for outdoor use?

A: Yes. The die-cast aluminum resists rust and UV. Ensure fasteners are stainless steel or galvanized to prevent corrosion at the mounting interface.

Q: Will the white finish discolor or yellow over time?

A: Outdoor UV exposure and pollution may cause slight color shift after 12–24 months. Power-wash occasionally if soiling is visible. The structural integrity remains unaffected.

Q: How do I ensure the bracket is level?

A: Use a spirit level on the bracket before final tightening. Corner geometry can be forgiving, but misalignment causes keystoning in the camera image and reduces coverage prediction accuracy.

Q: Can I use the CM for multiple camera types?

A: Yes, provided each camera weighs under 22 lbs and uses standard 1/4"-20 or M6 threaded mounts. Check your camera's mounting interface documentation to confirm compatibility.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Hikvision CM corner mount is a straightforward but underrated piece of infrastructure. I see integrators default to wall brackets because they're cheaper upfront, then discover that corner angles create blind spots or force suboptimal camera height. The CM solves that, but only if you respect its load limits and installation prerequisites.

Technical Highlights:

• 22 lbs capacity: Covers most compact and mid-weight surveillance cameras. Standard turrets (5–8 lbs) and small PTZs (12–18 lbs) are safe; full-size PTZs and heavy industrial cameras often exceed this and need a different bracket class entirely.
• Die-cast aluminum alloy: Thermal cycling and salt spray won't corrode it like steel, and it won't warp like plastic under UV. Longevity in exposed outdoor environments is measurably better—expect 8–10 years minimum before finish wear is visible.
• Corner geometry advantage: Reduces glare reflection from direct sun and improves coverage overlap at building corners. Keystoning risk is real if the bracket isn't level, so commission with a spirit level on every installation.

Deployment Considerations:

• Surface preparation is non-negotiable: mounting surface must support 3x bracket-and-camera weight. Drywall alone will fail. Concrete, steel, or wood stud anchoring is mandatory. Many field failures trace back to anchors rated for 5 lbs in drywall when the real load is 30–40 lbs.
• Fastener corrosion is the silent killer in outdoor salty or industrial air. Stainless steel hardware costs 15% more than galvanized but pays for itself in the first maintenance cycle. If the bracket is white powder-coat and the fasteners are regular steel, you'll have rust stains within 6 months in coastal or high-pollution areas.

Deploy the CM where corner positioning meaningfully improves coverage geometry and where you've confirmed the mounting surface and anchors can handle the real load. Avoid it if your camera is a heavy industrial PTZ or if the installation surface is compromised drywall or corroded steel—add a backing plate or choose a heavier-duty bracket instead.
