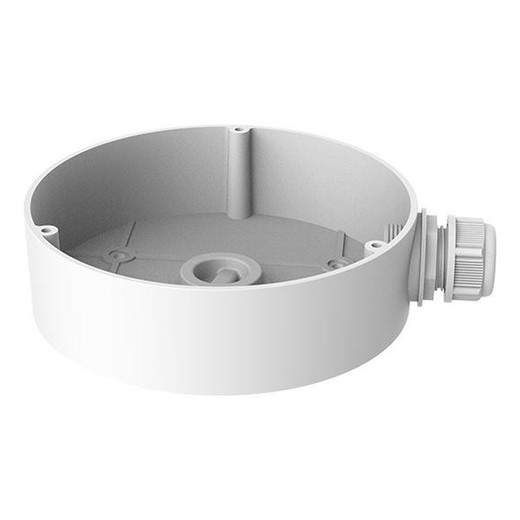

Hikvision CB140-DM45 Weatherproof Junction Box
The Hikvision CB140-DM45 is a surface-mounted aluminum alloy junction box engineered to protect camera cable connections and hardware from environmental exposure during outdoor surveillance deployments. IP66 rating means rain, dust, and high-pressure water spray won't compromise your wiring—a critical consideration for perimeter installations, parking facilities, and building facades where moisture ingress can degrade signal integrity or cause equipment failure.
Key Features
- Aluminum Alloy Construction: Corrosion-resistant material resists salt spray and oxidation, extending service life in coastal or chemically harsh environments. Lighter than steel, simplifying single-technician mounting.
- IP66 Rating: Dust-tight and resistant to high-pressure water jets. This protects against driving rain and washdown scenarios, though it does not support full submersion—if your installation requires underwater housing, specify IP67 or higher instead.
- Waterproof Gasket: Included rubber gasket seals cable entry points and the bottom cover, preventing moisture ingress at the weakest points in any outdoor junction box. Replace gaskets every 3–5 years in harsh climates to maintain seal integrity.
- Interchangeable Bottom Cover: Tool-free access allows you to reconfigure cable routing without breaking the seal. Useful during maintenance or when adding or relocating camera feeds without powering down the entire circuit.
- Side Gland Nut: Multiple cable entry points enable organized wire management and reduce stress on individual connections. Supports standard M20 and M25 conduit knockouts for industrial-grade cable routing.
- Surface-Mount Installation: No cutting or drilling into walls; simply attach the mounting plate with supplied fasteners. Reduces installation time and avoids structural damage, important in buildings where drilling voids warranties or violates lease agreements.
- White Finish: Reflects sunlight and heat, reducing internal temperature rise in high-solar environments. This is often preferred in data centers and equipment rooms where thermal management matters.
Integration & Compatibility
The CB140-DM45 is a cable and connection housing—not a powered device—and works with any IP camera or surveillance accessory that uses standard RJ-45, M20, or M25 connectors. Common deployment pairs include Hikvision turret and bullet cameras with PoE runs from network switches. No software compatibility or firmware updates required.
Typical Deployment Scenarios
Use the CB140-DM45 at wall-to-camera transition points, where PoE cables enter buildings, or at pole-mounted camera bases. Integrates cleanly into outdoor IP surveillance networks where cable runs exceed 300 feet and intermediate junction protection prevents water damage. Also suitable for protecting splice points when combining multiple short cable runs into a single conduit.
Frequently Asked Questions
Q: Can I use the CB140-DM45 underwater or partially submerged?
A: No. IP66 protects against spray and high-pressure jets, but not submersion. For underwater or semi-submerged applications, specify an IP67 or IP68 enclosure.
Q: What size cables does the CB140-DM45 accept?
A: The box supports standard M20 and M25 gland nuts (industry metric sizes). Verify your cable diameter matches the gland size before ordering.
Q: Do I need to caulk or seal the mounting plate?
A: Not required if you use the included gasket and gland nuts correctly. However, exterior caulk around the mounting plate improves weather resistance in extreme rain or salt-spray environments.
Q: How often should I replace the gasket?
A: In temperate climates, every 3–5 years. In coastal or UV-heavy regions, inspect annually and replace if hardened or cracked.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CB140-DM45 solves a real problem in outdoor camera deployments: unprotected cable runs fail in wet climates. An IP66 aluminum enclosure isn't exotic, but when you're speccing a 20-camera perimeter system and your integrator tries to save $15 per junction by running bare cable, you're buying yourself moisture-related downtime six months in. The CB140-DM45 forces proper cable discipline and costs roughly what you'd spend diagnosing one fried PoE injector.
Technical Highlights:
- IP66 Weatherproofing: High-pressure water jets (80–100 bar) won't penetrate the sealed enclosure. This matters on rooftop installations and building faces exposed to cleaning equipment or tropical downpours. Skip this if your cameras are under eaves or in low-moisture areas.
- Interchangeable Bottom Cover: Reconfiguring cable runs or adding a second camera feed takes minutes without breaking the weatherproof seal. This is not common in budget junction boxes and saves you from buying multiple single-use enclosures.
- White Aluminum Finish: Reflects 60–70% of solar radiation compared to black enclosures. In direct sun, internal temperature can drop 15–25°F, extending the service life of connectors and reducing thermal stress on PoE components during summer months.
Deployment Considerations:
- The gasket is a consumable—plan to replace it every 3–5 years in temperate zones, annually in coastal environments. Budget spare gasket kits into your maintenance schedule or face repeat failures after year four.
- M20/M25 gland nuts are standard metric, but verify your cable jacket diameter (typically 5–8 mm for Ethernet and power bundled together). Oversized cables won't seal properly; undersized cables will rattle and expose copper to moisture.
- Surface mounting means the box hangs off your wall—don't forget to verify the mounting location can handle a loaded enclosure (typically 2–3 lbs when full of connectors). Older masonry or composite siding may require pilot holes and anchors.
Deploy the CB140-DM45 at every cable transition point in exposed outdoor surveillance networks—perimeter fences, building corners, pole-mounted camera bases, and data center roof penetrations. It's the difference between a camera staying online for five years and starting to fail by year two.
