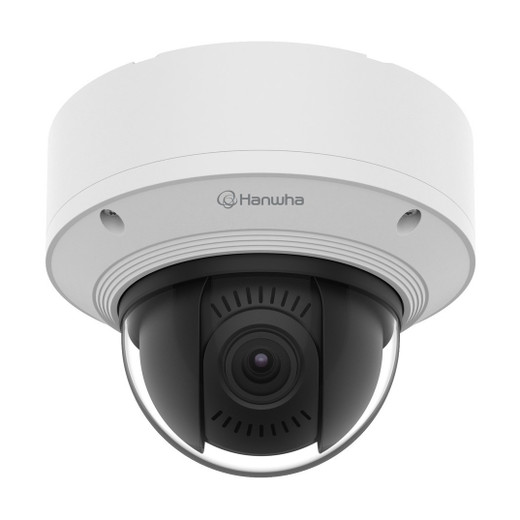

Type:
Dome
Frame Rate:
30fps
Imaging Device:
1/1.8" 6MP CMOS
Resolution:
2560×1920
Max. Framerate:
30fps
Min. Illumination:
0.07 Lux color / 0.007 Lux B/W
Video Out:
USB: Micro USB type B, 1280x720 for installation
Focal Length (Zoom Ratio:
3.6~9.4mm(2.6x) motorized varifocal
Max. Aperture Ratio:
F1.2(Wide) ~ F2.4(Tele)
Angular Field of View:
H: 102.5°, V: 74.2°
Min. Object Distance:
0.5m(1.64ft)
Focus Control:
Simple focus, Manual
Lens Type:
DC auto iris, P iris(IR corrected)
Pan / Tilt / Rotate Range:
Remote adjustment (Max. 200cycles); ±175˚ / 0~85˚ / ±175˚
Camera Title:
Displayed up to 85 characters
Day & Night:
Auto(ICR)
Backlight Compensation:
BLC, HLC, WDR, SSDR
Wide Dynamic Range:
120dB
Digital Noise Reduction:
SSNRⅤ
Digital Image Stabilization:
Support
Defog:
Support
Motion Detection:
8ea, 8point Polygonal zones
Privacy Masking:
32ea, 4point Quadrangle zones; - Color : Gray, Green, Red, Blue, Black, White; - Mosaic
Gain Control:
Support
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
LDC:
Support
Electronic Shutter Speed:
Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation:
Flip, Mirror, Hallway view(90˚/270˚)
Analytics:
Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence:
People counting, Queue management, Heatmap
Alarm Inputs/Outputs:
Input 1ea / Output 1ea
Alarm Triggers:
Analytics, Network disconnect, Alarm input
Alarm Events:
When alarm trigger occurred; - File upload(image) : e-mail/FTP; - Notification : e-mail; - Recording : SD/SDHC/SDXC or NAS recording at event triggers; - Alarm output; - Handover; - Audio clip playback
Audio In:
Selectable(mic in/line in/built-in mic); Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out:
Line out, Max.output level: 1Vrms
Ethernet:
RJ-45(10/100BASE-T)
Video Compression:
H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression:
G.711 u-law /G.726 Selectable, G.726(ADPCM) 8KHz, +more
Smart Codec:
Manual(5ea area), WiseStreamⅡ
Bitrate Control:
H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming:
Unicast(20 users) / Multicast; Multiple streaming(Up to 10 profiles)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security:
HTTPS(SSL) Login Authentication; Digest Login Authentication; IP Address Filtering; User access Log; 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface:
ONVIF Profile S/G/T; SUNAPI(HTTP API); Wisenet open platform
Webpage Language:
English, Korean, Chinese, French, Italian, +more
Edge Storage:
Micro SD/SDHC/SDXC 2slot 512GB
RAM:
1024MB RAM, 256MB Flash
Operating Temperature / Humidity:
-25°C ~ +60°C (-13°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity:
-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification:
IP52, IK10
Input Voltage:
PoE(IEEE802.3af, Class3), 12VDC
Power (Max:
11W
Color / Material:
White / Aluminum
RAL Code:
RAL9003
Product Dimensions / Weight:
Ø160x125mm(Ø6.3x4.9") / 1.45kg(3.2lb)
Product Type:
Dome
Connectivity:
Wired
IP Rating:
IK10
Features:
WDR
Night Vision:
IR
Power Type:
PoE
PoE Class:
3
Form Factor:
Dome
Vandal Rating:
IK10
Compatibility:
ONVIF
IR Distance:
0.5m
Built-in IR:
Yes
Day/Night:
Yes
Storage Support:
microSD
HTTPS Encryption:
Yes
WDR:
WDR
Weight Lbs:
0.0
Housing Color:
White
Environment Rating:
Indoor
Warranty:
3-year warranty
Poe Power:
PoE (802.3af)
Ir Lowlight:
IR
Compression:
H.265; H.264; MJPEG
Onvif:
Yes
Lens:
Audio:
In Selectable(micin/linein)
Ethernet Rate:
RJ-45(10/100BASE-T)
Application:
ONVIF S,G,T
Memory:
RAM 1GB
Storage:
256MB
Material:
Aluminum
Certifications:
&Standards
Environment:
IEC60529IP52,IEC62262IK10
