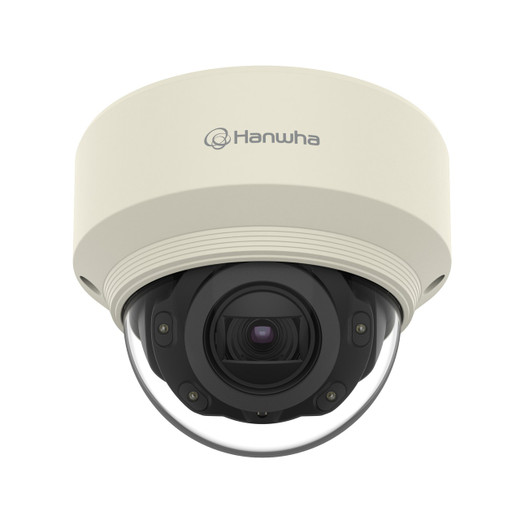

Hanwha XND-6080RV 2MP Motorized Dome IR Camera

Hanwha XND-6080RV 2MP Motorized Dome IR Camera

The Hanwha XND-6080RV is a professional-grade 2MP day/night dome camera engineered for reliable surveillance in indoor and outdoor environments. Built with a 1/2.8" CMOS sensor and motorized 2.8–12mm varifocal lens (4.3x zoom), this camera delivers sharp, adaptable imagery across diverse security applications including retail, offices, parking facilities, and perimeter monitoring.

Key Features

• 2MP resolution with 1/2.8" CMOS imaging device
• Motorized varifocal lens (2.8–12mm, F1.4–F3.6) with 119.5°–27.9° horizontal field of view
• IR illumination with 30-meter night vision range
• 150dB Wide Dynamic Range (WDR) for high-contrast lighting scenarios
• H.265/H.264/MJPEG multi-codec compression with WiseStream II smart coding
• Advanced video analytics: motion detection, face detection, defocus detection, line crossing, loitering, tampering alerts, and digital auto-tracking
• PoE powered (IEEE 802.3af, Class 3; max 10W) with optional 12VDC input
• IP66 weatherproof rating; IK08 vandal resistance
• Dual microSD card slots (up to 512GB edge storage per slot)

Technical Highlights

The XND-6080RV combines exceptional low-light performance with flexible zoom capability. Its motorized iris lens automatically adapts to lighting changes, while true day/night (ICR) switching preserves detail across 24/7 operations. The 150dB WDR technology handles extreme contrast—critical for backlighting scenarios like lobby entrances or outdoor perimeters with mixed sunlight and shadow.

Video compression efficiency is paramount in modern surveillance. This camera supports H.265 encoding at up to 60fps, reducing bandwidth and storage demands by up to 50% compared to H.264 while maintaining quality. Multiple streaming profiles (up to 10 simultaneous) enable flexible client access without performance degradation.

Intelligent analytics empower proactive security. Built-in detection algorithms identify motion, loitering, line crossing, tampering, and face presence—triggering immediate alerts and edge recording via microSD or NAS. Directional detection and audio classification add contextual intelligence for reduced false positives.

Network security is robust: HTTPS/SSL encryption, 802.1X authentication (EAP-TLS/EAP-LEAP), IP filtering, and comprehensive user access logs protect against unauthorized viewing. ONVIF Profile S/G/T compatibility ensures integration with third-party VMS platforms and control systems.

Installation & Deployment

The compact dome form factor (Ø140.8mm, 724g) mounts flush in standard ceiling cavities. PoE delivery simplifies wiring—single Ethernet cable provides both data and power. Composite and Micro-USB outputs enable rapid on-site commissioning and focus verification. Operating range of –10°C to +60°C suits diverse climates.

Applications

Ideal for retail analytics, access-control verification, parking surveillance, office security, and outdoor perimeter monitoring where zoom flexibility and low-light clarity are essential.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-6080RV represents a solid mid-range surveillance choice for integrators prioritizing optical zoom and intelligent analytics over fixed-focal simplicity. The motorized 4.3x lens eliminates the need for multiple camera SKUs across wide/narrow coverage zones, reducing deployment complexity. Its 150dB WDR outperforms budget alternatives and approaches high-end specifications, making it competitive in mixed-lighting retail and transportation applications.

The dual microSD architecture and multi-profile streaming suit edge-centric deployments where local buffering and multi-client access prevent single points of failure. WiseStream II codec optimization is particularly valuable for bandwidth-constrained sites or large camera counts. IK08 rating provides modest vandal protection suitable for moderately hostile indoor/covered outdoor environments, though it falls short of full-perimeter hardening (IK10).

Network security features are enterprise-grade, supporting 802.1X authentication critical for healthcare and regulated finance deployments. Limitation: fixed P-iris lens limits extreme backlight scenarios compared to motorized iris designs; users in high-contrast outdoor applications may benefit from additional external shading or repositioning.
