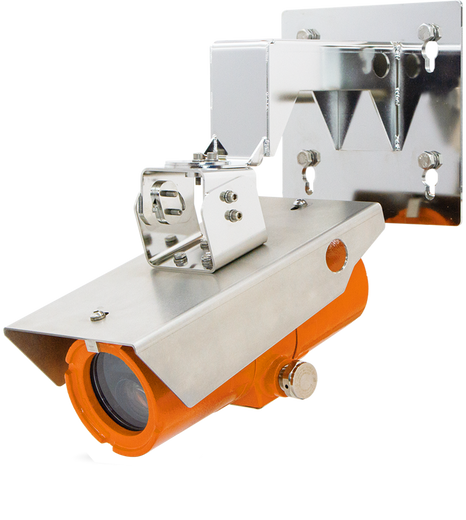

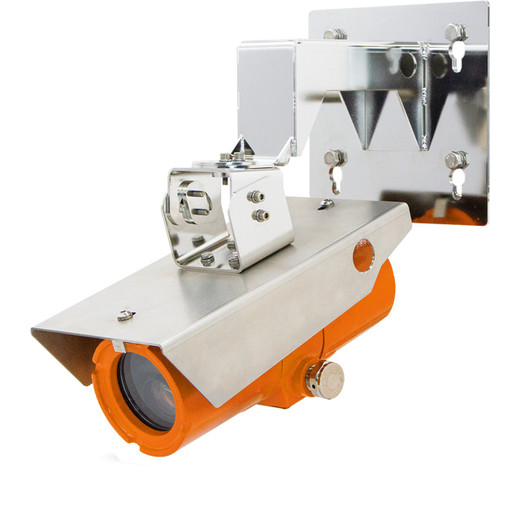

Hanwha TNO-X8072EPT1-Z 5MP Explosion Proof Bullet Camera

Hanwha TNO-X8072EPT1-Z 5MP Explosion Proof Outdoor Fixed Bullet IP Camera

The Hanwha TNO-X8072EPT1-Z is a specialized 5MP explosion-proof outdoor IP camera engineered for hazardous industrial environments including oil refineries, chemical plants, and other volatile atmospheres. This fixed bullet camera combines high-resolution imaging with intrinsic safety design to deliver reliable surveillance where standard cameras cannot operate.

Key Features

• 5MP resolution (2616 x 1976 effective pixels) with 1/1.8" 6MP CMOS sensor
• Explosion-proof casing rated for potentially explosive environments
• IP66 weather-resistant rating for harsh outdoor conditions
• Advanced low-light performance: 0.07 Lux color / 0.007 Lux B/W (F1.2)
• 120dB wide dynamic range with WDR, BLC, and HLC support
• Motorized 4.1-9mm lens with auto iris (82° to 43° field of view)
• Day/night capability with automatic ICR and B/W mode
• Digital image stabilization with built-in gyro sensor
• Built-in IR night vision for low-light detection
• Motion detection with 8-point polygonal zones
• Digital PTZ with 24x zoom and preset groups

Video & Analytics Capabilities

The camera features intelligent video and audio analytics including tampering detection, loitering alerts, directional detection, defocus and fog detection, virtual line crossing, enter/exit detection, face detection, and digital auto tracking. Advanced codec support includes H.265/H.264 and MJPEG at up to 30fps with WiseStream II bandwidth optimization. Multiple streaming profiles (up to 10) enable flexible deployment across network infrastructure.

Connectivity & Integration

PoE (IEEE802.3af) powered design simplifies installation while the optional heater (-40°C to +60°C operation with heater) ensures year-round performance. Dual SD/SDHC/SDXC card slots (up to 512GB each) provide local edge storage with continuous recording capability. Full ONVIF compliance and SUNAPI HTTP API support enable seamless integration with Wisenet WAVES, smartViewer, and third-party management platforms. IP address filtering, 802.1X authentication, and HTTPS/SSL security provide enterprise-grade access control.

Technical Specifications

Operating temperature ranges from -40°C to +60°C with optional heating, IP66 rated for complete dust and water protection. Dimensions are 7.2" x 5.97" x 13.85" (14 lb). Camera power consumption is maximum 7.5W on PoE; heater draws 25W at 12-24V DC. Dual alarm input/output with RS-485 interface supports multiple PTZ protocols including Pelco-P/D, Honeywell, and Bosch standards.

Applications

Ideal for mission-critical surveillance in classified hazardous locations (Division 1 & 2 facilities), petrochemical processing, explosive material storage, and industrial sites requiring both safety compliance and comprehensive visual monitoring.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-X8072EPT1-Z addresses a niche but critical market segment where standard IP cameras are prohibited by safety regulations. The explosion-proof certification combined with 5MP resolution and modern codec support makes this camera suitable for industrial operators requiring both compliance and operational intelligence. Low-light performance (0.007 Lux B/W) ensures visibility in poorly illuminated hazardous areas.

The inclusion of dual SD card slots and NAS support provides operational resilience in environments where network interruptions may occur. Advanced analytics like virtual line detection and directional analysis add situational awareness beyond basic recording, though end-users should verify ATEX/IECEx certifications for their specific jurisdiction before deployment.
