Discontinued — No Longer Available New
This model has been discontinued by Hanwha. Shop current Hanwha products → or see the recommended alternatives below.

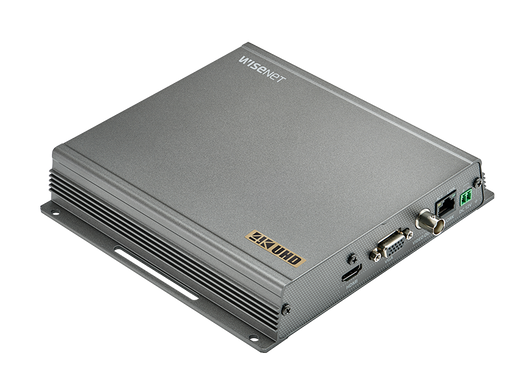

Elevate your surveillance capabilities with the Hanwha SPD-150 49 Channel Decoder. This powerful decoder brings cutting-edge technology to the world of IP surveillance, offering an array of technical features that enhance its business relevance. In this comprehensive product description, we delve into the key features, compatibility, and specifications of the Hanwha SPD-150, tailored for a semi-technical audience in the business and IT sectors.
Key Features:
-
Video Decoding Excellence: The Hanwha SPD-150 is designed to decode video feeds from up to 48 cameras on HDMI/VGA, ensuring you have a comprehensive view of your surveillance network.
-
Multi-Monitor Capability: Experience flexibility like never before with support for three different monitors. Achieve a maximum of 36/32 channels on HDMI, 16 channels on VGA, and 1 channel on BNC, all simultaneously.
-
Resolution Prowess: Enjoy exceptional image quality with support for up to 4K resolution on HDMI and 1080p on VGA. The decoder can handle decoding tasks for cameras up to 12MP, accommodating a wide range of surveillance scenarios.
-
Codec Support: The SPD-150 is equipped with the latest codec technology, including H.265, H.264, and MJPEG, ensuring efficient video processing while maintaining high-quality output.
-
Versatile View Modes: Choose from various view modes, including Hallway View, to tailor your surveillance setup according to your specific requirements. The decoder supports multiple view configurations, making it adaptable to diverse surveillance environments.
-
Layout Flexibility: Benefit from up to 20 layouts and sequence options, allowing you to customize your display and streamline your monitoring workflow.
-
User-Friendly Management: Easily configure and manage your decoder using the local UI and a USB mouse. Additionally, the decoder supports configuration export/import, simplifying setup and maintenance.
-
Power Options: The SPD-150 can be powered via PoE (Power over Ethernet) or a 12VDC power source, offering flexibility in installation and power management.
Compatibility:
The Hanwha SPD-150 49 Channel Decoder is compatible with a wide range of surveillance cameras, making it a versatile addition to your IP surveillance ecosystem. It supports multiple codecs and ONVIF standards, ensuring seamless integration with various camera models and manufacturers.
Specifications:
- Video Decoding: Up to 48 cameras on HDMI/VGA, 1 camera on BNC
- Maximum Resolutions: 4K@HDMI, 1080p@VGA
- Supported Decoding Resolutions: 12MP, 8MP, 5MP, 3MP, 1080p, 720p, 4CIF
- Codec Support: H.265, H.264, MJPEG
- View Modes (HDMI): 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 36 (32) / 2V / 3V
- View Modes (VGA): 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V
- Layout Options: Up to 20 layouts and sequence configurations
- Power Options: PoE or 12VDC
- User Interface: Local UI & USB mouse
- Configuration Management: Export/import and USB-based upgrades
Package Contents:
The Hanwha SPD-150 49 Channel Decoder package includes:
- 1 x SPD-150 49 Channel Decoder
Transform your surveillance experience with the Hanwha SPD-150 49 Channel Decoder. Its exceptional decoding capabilities, versatile compatibility, and user-friendly features empower you to make the most of your IP surveillance network. Whether you require high-resolution monitoring or seamless integration with your existing cameras, the SPD-150 delivers on all fronts.
