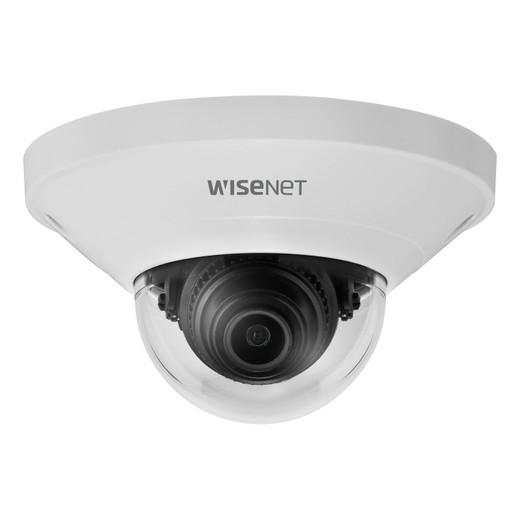

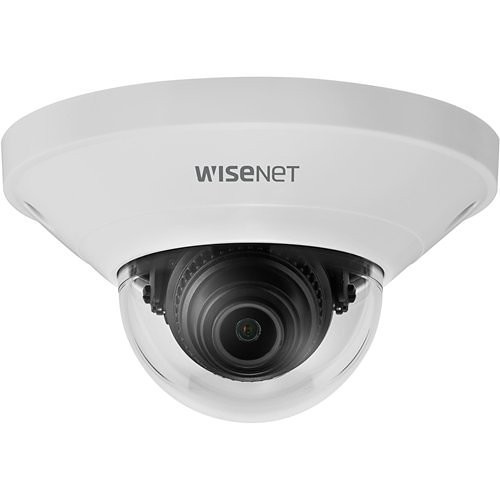

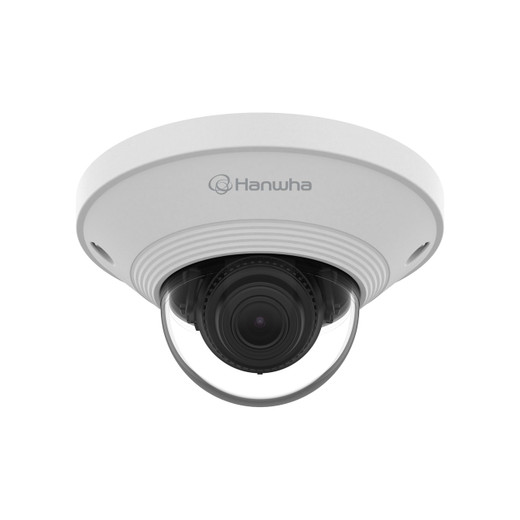

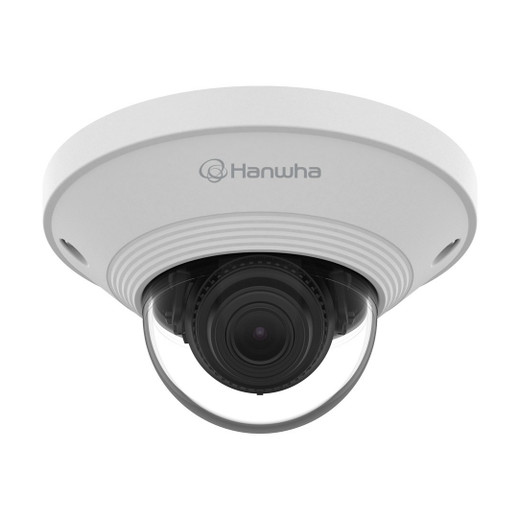

Hanwha QND-8011 5MP Mini Dome IP Camera

Hanwha QND-8011 5MP Mini Dome IP Camera

The Hanwha QND-8011 is a compact 5MP day/night dome camera engineered for indoor surveillance in controlled environments—offices, retail spaces, lobbies, building entrances, and access control points. The discrete mini dome form factor delivers professional image quality without visual intrusion, while the 1/2.8" CMOS sensor and F2.0 fixed lens capture sharp detail across varying light conditions. This is a straightforward tool for organizations that need reliable, cost-effective indoor monitoring with strong baseline performance and minimal operational overhead.

Key Features & Deployment Benefits

• 5MP Resolution (2592 × 1944): Delivers enough clarity to identify faces and read signage at typical indoor mounting heights (8–12 feet). Enough detail for forensic review without consuming excessive storage or bandwidth.
• 2.8mm Fixed Lens, 105° Horizontal Field of View: Wide angle suitable for corridor monitoring, lobby coverage, and small-to-medium rooms. Fixed lens eliminates mechanical wear and motorized zoom complexity—mount once and maintain image clarity indefinitely.
• Auto Day/Night Capability with 0.15 Lux Minimum Illumination (F2.0): Switches to infrared automatically as ambient light drops. At 0.15 lux, the camera captures usable monochrome footage in near-darkness—hallways with emergency exit lighting or retail spaces after hours. No separate illuminator needed in most indoor environments.
• Wide Dynamic Range (WDR) at 120dB: Balances exposure in high-contrast scenes—backlit lobbies, storefronts with bright windows, or mixed indoor/outdoor transitions. 120dB WDR prevents blown-out backgrounds and crushed shadows, preserving detail across the frame for forensic value.
• H.265 with WiseStream II Smart Codec: Reduces file size 40–60% versus H.264 at equivalent quality. Over 30 days of continuous recording across multiple cameras, this difference translates into measurable storage savings and lower network bandwidth. Falls back to H.264 or MJPEG if required by legacy NVRs or edge recorders.
• PoE Powered (IEEE 802.3af Class 2), 4W Typical Draw: Runs on standard PoE injectors or PoE switches without pulling dedicated power circuits. At 4W typical consumption, a single 24-port 802.3af PoE switch can power 15–20 QND-8011 cameras with comfortable headroom, simplifying cabling infrastructure.
• IP42 and IK08 Ratings: IP42 protects against dust ingress and low-angle water spray—suitable for indoor mounting with occasional humidity or light dust exposure. IK08 withstands casual impact (e.g., accidental bumps from ladders or facility maintenance) without housing damage. Not rated for outdoor weather or heavy-duty physical abuse.
• Micro SD Card Support (up to 128GB): Local edge storage acts as failover recording. If network connectivity drops, the camera continues recording to onboard storage for up to 2–3 days depending on codec and frame rate, allowing incident recovery without relying on NVR availability.
• Pan/Tilt/Rotate Capability (0°–350°/0°–69°/0°–355°): Adjust image orientation during installation without rotating the physical housing. Ceiling-mounted cameras can be rotated to correct lens angle without dismounting, saving installation time.

Motion Detection & Analytics

Built-in motion detection supports up to 4 polygonal zones, allowing you to define specific areas (e.g., cash registers, entry doors) and ignore others (e.g., rotating signage or moving reflections). Defocus and tampering alerts trigger immediate notifications, and people counting enables basic traffic analysis for retail or building operations. Motion and analytics events can initiate event-based recording, email notifications, or FTP uploads—streamlining incident workflows without requiring a separate VMS.

Security & Integration

Enterprise-grade security includes 802.1X network authentication, HTTPS/SRTP encryption, and firmware encryption to prevent unauthorized device firmware modification. The camera supports ONVIF Profile S/G/T for vendor interoperability—integrates with Milestone XProtect, Axis Companion, and other standards-based VMS platforms. Hanwha's SUNAPI HTTP API and Wisenet open platform enable custom integrations for organizations with proprietary backend systems. Multi-stream capability (up to 3 profiles) and unicast/multicast support allow a single camera feed to be distributed to multiple clients—VMS, edge recorders, and mobile apps—without duplicating bandwidth.

Specifications at a Glance

• Sensor: 1/2.8" CMOS
• Compression: H.265, H.264, MJPEG
• Max Frame Rate: 30fps @ 5MP (H.265/H.264); 15fps @ 5MP (MJPEG)
• Electronic Shutter: 1/5–1/12,000 sec
• Noise Reduction: SSNR (Smart Spatial Noise Reduction)
• Dimensions: ø99 × 56mm (ø3.9 × 2.2 in); Weight: 165g (5.8 oz)
• Operating Temperature: -10°C to 50°C (14°F to 122°F)

When to Choose a Different Model

If you need outdoor all-weather surveillance (rain, high wind, temperature extremes), choose a higher-rated IP camera with IP66 or IP67 and extended operating temperature range. If high-traffic retail environments require facial recognition or license plate capture, consider a higher-megapixel variant in the Hanwha dome line—the QND-8011's 5MP is solid for general surveillance but less forgiving for detailed identification at 20+ foot distances. For applications requiring motorized zoom (e.g., large warehouses or parking garages), evaluate a PTZ camera in the Hanwha catalog instead.

Typical Deployment & Architecture

Deploy the QND-8011 on ceiling or wall mounts using standard 1/2-inch or M12 bracket hardware (not included). Wire PoE via Cat6 or Cat6A cabling to a PoE switch located in a network closet or equipment rack. Configure the camera's IP address via DHCP or static assignment, assign credentials, and add to your NVR or VMS. A network video recorder or edge storage system should be sized to retain 7–30 days of continuous H.265 footage depending on storage budget. For bandwidth planning, allocate roughly 2–4 Mbps per camera stream in H.265, lower if motion-triggered recording is enabled.

Frequently Asked Questions

Q: Can the QND-8011 be wall-mounted?

A: Yes. The camera supports standard wall and ceiling mounts via a 1/2-inch threaded mounting point. Mounting templates are provided to simplify installation. Pan/tilt/rotate adjustment is available during setup to correct lens angle without removing the camera.

Q: What's the maximum IR range indoors?

A: The QND-8011 includes integrated IR illumination but does not publish a specific range specification. In typical indoor spaces (offices, lobbies) with dark interiors and distances under 20 feet, IR illumination is sufficient. For larger open warehouse spaces, supplemental auxiliary IR lighting is recommended.

Q: Does it work with Milestone XProtect or other vendor VMS platforms?

A: Yes. The camera supports ONVIF Profile S/G/T, enabling integration with Milestone XProtect, Axis Companion, and other standards-based video management systems. HTTPS and SRTP encryption are supported for secure video transport.

Q: How much local storage does the microSD card provide?

A: The camera supports microSD cards up to 128GB. At 5MP H.265 with 30fps, a 128GB card typically stores 24–48 hours of continuous recording depending on scene complexity and motion. This provides failover protection if NVR connectivity drops.

Q: What's the power consumption?

A: Typical power draw is 4W via PoE (IEEE 802.3af). This low consumption allows a 24-port 802.3af PoE switch to comfortably power 15–20 cameras without exceeding power budget limits.

Q: Is firmware update process automated?

A: Firmware updates are managed via the camera's web interface or through integration with Hanwha's management platform. Firmware is encrypted to prevent unauthorized modification, and updates should be tested on a non-production camera first to verify compatibility with your VMS and recording infrastructure.

James Everett

The QND-8011 is a reliable workhorse for organizations building controlled-environment surveillance systems. Its 5MP resolution and 120dB WDR deliver professional baseline performance in mixed-lighting office and retail settings without requiring exotic optics or computational overhead. H.265 with WiseStream II compression is the real differentiator—cutting bandwidth and storage costs by 40–60% versus legacy H.264, a concrete advantage when you're managing dozens of simultaneous streams.

Technical Highlights:

• 4W PoE Draw (802.3af): Exceptionally lean power budget. A standard 24-port 802.3af PoE switch supports 15–20 QND-8011 units without auxiliary power or PoE+ upgrades. Reduces infrastructure cost and eliminates need for dedicated power circuits at ceiling mounts.
• 0.15 Lux Sensitivity (F2.0): Sufficient IR illumination for typical indoor low-light scenarios—hallways, back offices after hours, retail floor perimeters. Embedded IR avoids supplemental illuminator cost in most deployments; reserve external IR for large open spaces (warehouses, parking structures).
• 128GB MicroSD Local Failover: Records 24–48 hours of continuous H.265 footage to onboard storage. If NVR or network connectivity drops, the camera survives gracefully without losing incident evidence. Critical for incident investigation workflows.

Deployment Considerations:

• IP42/IK08 Limits: Indoor-only. Dust and humidity tolerance is moderate—suitable for controlled office and retail environments but inadequate for outdoor, high-dust (warehouses with grinding/cutting), or high-moisture (kitchens, carwashes) settings. Skip this if you need outdoor or harsh-environment durability.
• Fixed 2.8mm Lens: 105° FOV works well for small-to-medium room coverage, but larger open spaces (parking garages, warehouse floors >40 feet) may demand either higher mounting density or motorized zoom. Evaluate space layout and mounting height before committing to fixed-lens geometry.

The QND-8011 excels in distributed multi-camera indoor deployments—chain retail stores, corporate office networks, government facility lobbies—where simplicity, low operational cost, and vendor-neutral integration (ONVIF) matter more than cutting-edge analytics or PTZ capability. Pair it with a standards-based NVR or cloud storage backend, and you've got a sustainable, maintainable surveillance baseline.
