Middle Atlantic 8SP Cabinet Frame RK 16D - CFR-8-16

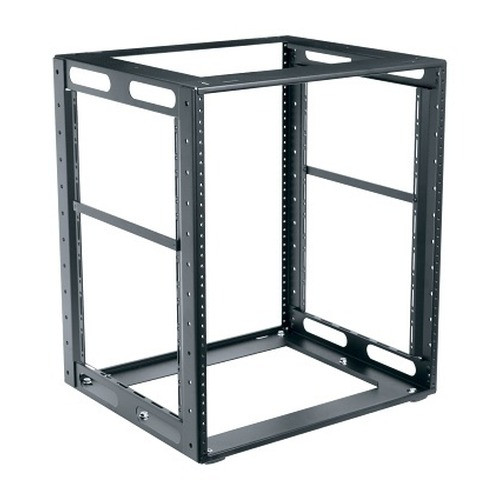

Middle Atlantic CFR-8-16 8U In-Cabinet Frame Rack

Overview

The Middle Atlantic CFR-8-16 is an 8U in-cabinet frame rack designed to mount inside existing enclosures where you need organized, rail-based equipment support without a freestanding open-frame structure. At 16 inches of usable depth and 14 inches of usable height across 8 rack units, the CFR-8-16 suits shallow-depth cabinet interiors — a common constraint in wall-mount AV and security equipment enclosures where full 24-inch rails simply won't fit. The 10-32 threaded rail pattern is the standard used across Middle Atlantic rack systems and compatible with the vast majority of rackmount security appliances, NVRs, and AV gear. UL-listed with a 250 lb rated load capacity, it handles dense equipment loads without flex. TAA compliant, making it viable for government and federally funded installations. Steel construction with a flat black powder coat finish keeps it from standing out inside open enclosures.

Compatibility

The CFR-8-16 is engineered as an in-cabinet insert for rack enclosures and furniture-style cabinets that accept a standard 19-inch EIA rail layout. The 19.25-inch overall width fits cabinets built to the EIA-310 standard. At 16 inches of usable depth, it accommodates most 1U and 2U network video recorders, managed PoE switches, and patch panels designed for shallow-depth installations — verify your deepest unit does not exceed 16 inches before ordering. The 10-32 rail tapping is the dominant standard for commercial rackmount hardware; confirm your equipment uses 10-32 cage nuts or pre-tapped 10-32 (not M6 or 12-24) before mounting. Compatible with Middle Atlantic's broader rack accessory ecosystem including blanks, cable managers, and shelves sized for the same rail spacing.

Installation Notes

Overall height is 14.94 inches (38 cm) — measure your cabinet's internal clearance before ordering, particularly in wall-mount enclosures with fixed interior dimensions. Product weight is 12.5 lbs unloaded; shipping weight is 18 lbs. The flat black powder coat finish is applied at the factory and does not require field treatment. Mount within a cabinet that provides its own structural support — this frame does not stand independently.
