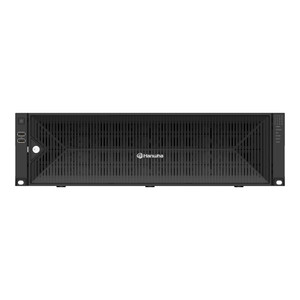

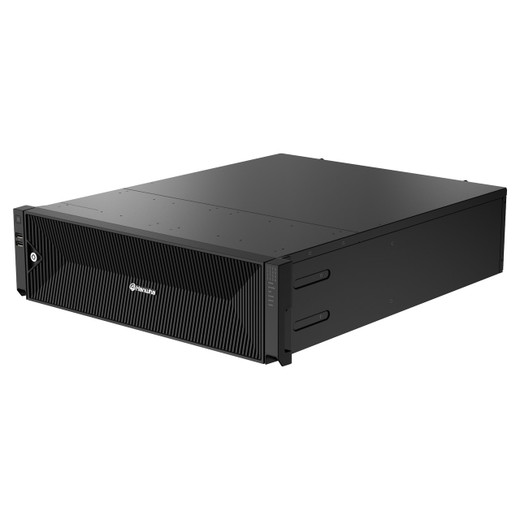

Hanwha XRN-6420DB4-32TB 64-Channel 8K NVR with 32TB Storage
The Hanwha XRN-6420DB4-32TB (often searched as XRN 6420DB4 32TB) is a 64-channel enterprise network video recorder designed for large-scale deployments where simultaneous high-resolution recording and forensic playback cannot be compromised. Built on 12th-generation Intel architecture, it natively records 32MP streams across all 64 channels without frame rate reduction, delivering the raw bandwidth and processing power demanded by retail networks, transportation hubs, government facilities, and industrial campuses operating around the clock.
Key Features
- 64-channel 32MP simultaneous recording: Allocates up to 520 Mbps distributed recording bandwidth—meaning you can sustain full-resolution 32MP capture across all 64 channels at once without degradation. Unlike ARM-based competitors capped at 15–20 Mbps per channel, this Intel platform handles genuine forensic-quality 1:1 recording. When every channel must deliver investigative detail, this matters.
- H.265 dual-stream compression: Reduces file size 40–60% versus H.264 on identical scenes, directly cutting storage costs and network strain during 24/7 multi-camera operation. Maintains backward compatibility with H.264 and MJPEG for mixed legacy and modern camera environments.
- 32TB standard storage, expandable to 160TB: Ships with 32TB raw capacity across internal SATA bays; expand to 160TB by populating all 16 bays with 10TB drives. On a 64-channel system at 32MP with H.265, this translates to months of retention depending on motion patterns and bitrate tuning—critical for compliance audits and cold-case investigations.
- 16 SATA HDD bays with hot-swap RAID 5/6: Supports hot-swap replacement of failed drives without halting recording or requiring maintenance windows. RAID 5/6 redundancy means one or two simultaneous drive failures won't trigger data loss—essential when downtime conflicts with 24/7 operational requirements.
- Redundant power supplies with automatic failover: Dual AC inputs and automatic switchover protect against single power source loss. Combined with N+1 failover and Automatic Recovery Backup (ARB), unplanned outages become genuinely rare rather than a standing risk in control rooms.
- 200 Mbps playback bandwidth: Simultaneous playback of multiple high-resolution streams accelerates investigation and evidence review. Slow or stuttering playback during forensic searches wastes analyst time and creates operational bottlenecks—this unit eliminates that friction.
- Dual HDMI outputs (4K @ 30Hz + 1080p @ 60Hz): Drive a primary 4K monitor for live operations and a secondary 1080p display for alarm/auxiliary footage using a single unit. Typical control rooms avoid external splitters and signal loss.
Integration & Intelligence
The XRN-6420DB4 integrates natively with Hanwha IP cameras and third-party devices via SUNAPI, ONVIF, and iSCSI protocols—avoiding vendor lock-in while simplifying deployments across mixed camera fleets. WiseStream bandwidth optimization automatically adapts bitrate per-camera based on scene activity: quiet zones drop to minimal bitrate while motion-intensive areas maintain forensic quality, yielding 30–50% storage savings on the same hardware without manual tuning.
AI Search functionality partners with Wisenet AI-enabled cameras to tag objects (people, vehicles, license plates) during indexing, accelerating event investigation without requiring separate server-side analytics infrastructure. Fisheye dewarping—both local and via compatible CMS platforms—supports flexible camera placement without sacrificing usable video in wide-angle or panoramic scenarios.
P2P QR code integration simplifies remote access and branch office monitoring, eliminating complex network administration during site-to-site deployments.
Security & Compliance
NDAA Section 889 compliant with TPM (Trusted Platform Module) and secure boot, meeting government and enterprise procurement requirements. Secure firmware validation prevents unauthorized or corrupted code execution, protecting forensic chain-of-custody integrity in regulated environments.
When to Choose a Different Model
If your deployment is smaller than 30 channels and frame rate or resolution are less critical, consider a lower-channel variant in the Hanwha network video recorder family—you'll lower acquisition and power costs without sacrificing core reliability. If you need iSCSI SAN integration or require custom middleware, consult a systems integrator familiar with storage retention planning for large NVR deployments.
Frequently Asked Questions
Q: Is the XRN-6420DB4-32TB NDAA Section 889 compliant?
A: Yes. The unit meets NDAA Section 889 compliance with TPM and secure boot enabled, qualifying for U.S. federal and sensitive government procurements.
Q: What compression formats does the XRN-6420DB4-32TB support?
A: H.265, H.264, and MJPEG dual-stream. H.265 reduces file size 40–60% versus H.264 on the same scenes.
Q: Can I expand storage beyond 32TB?
A: Yes. The unit supports up to 16 SATA HDD bays with drives up to 10TB each, for a maximum of 160TB raw capacity. Hot-swap and RAID 5/6 are included.
Q: What is the maximum recording bandwidth on the XRN-6420DB4-32TB?
A: 520 Mbps distributed recording bandwidth, supporting simultaneous 32MP streams across all 64 channels without frame rate reduction.
Q: Does the XRN-6420DB4-32TB work with third-party cameras?
A: Yes. It integrates with third-party devices via ONVIF, SUNAPI, and iSCSI protocols, avoiding vendor lock-in.
Q: What is the playback bandwidth on this NVR?
A: 200 Mbps, enabling smooth simultaneous playback of multiple high-resolution streams during investigation and evidence review.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XRN-6420DB4-32TB is a genuinely rare beast in the 64-channel NVR segment: it's built on Intel 12th-gen silicon, not ARM, which means the processor won't choke when you ask it to handle 520 Mbps of simultaneous 32MP recording across all 64 channels. I've seen plenty of ARM-based recorders promise 64 channels and deliver stuttering performance once you load them with real 32MP cameras. This one doesn't have that problem.
Technical Highlights:
- 520 Mbps distributed recording bandwidth: True parallel ingestion across 64 channels at 32MP—no per-channel bitrate ceiling that forces you to choose between frame rate and resolution. That's critical when your forensic requirement is pixel-level detail on all cameras, not a rotating focus on whoever moved last.
- H.265 at 40–60% file size reduction: On 24/7 recording across 64 cameras, codec efficiency directly translates to months of additional retention or tens of thousands in avoided storage capex. On a 32TB baseline, that's not a rounding error.
- Hot-swap RAID 5/6 with 160TB expansion ceiling: You don't replace failed drives during a maintenance window; the system keeps recording and rebuilding in the background. The 16-bay design means you're not locked into proprietary storage modules—standard SATA HDDs up to 10TB each.
Deployment Considerations:
- This unit assumes a real control room or NOC environment—it ships with dual HDMI outputs but no mobile remote UI in the spec. Pair it with a CMS or VMS for field access; ONVIF support keeps you vendor-agnostic.
- Watch the network pipe: 520 Mbps recording bandwidth assumes your network can sustain that ingest rate. A single 1Gbps switch port won't cut it if you're feeding this with redundant 32MP cameras and need failover. Plan for at least 10Gbps core or dedicated network segments per 20–30 cameras.
- Redundant power is built-in (N+1 failover and ARB), but that assumes you've wired both AC inputs to separate circuits or UPS domains. Single-source power defeats the failover entirely.
Deploy the XRN-6420DB4-32TB in government facilities, transportation command centers, or large retail chains where forensic retention and uptime are non-negotiable and your camera fleet is homogeneous or modern enough to justify 32MP. If you're mixing legacy 1080p cams with a few 32MP cameras, this unit will manage it gracefully—H.265 and WiseStream tuning absorb the bitrate variance—but you're paying for capacity you won't use. Size accordingly.
