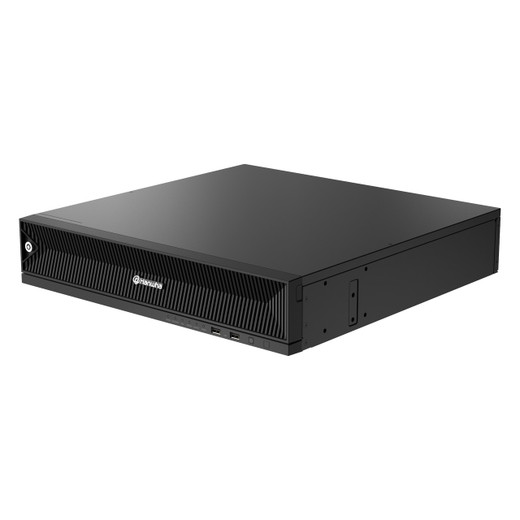

The Hanwha XRN-3220RB2-60TB is a high-performance 32-channel 8K network video recorder designed for large-scale surveillance deployments requiring extended storage and advanced analytics capabilities.
Image Quality and Recording Capability
This Intel-based NVR supports up to 32 MP resolution and 20 MP+ capture, delivering exceptional clarity across multi-camera installations. Triple codec support—H.265, H.264, and MJPEG—provides flexibility in bandwidth optimization and compatibility with diverse camera ecosystems. H.265 compression ensures efficient storage utilization without sacrificing image fidelity, critical for facilities managing high-resolution streams around the clock.
Storage and Expansion
The XRN-3220RB2-60TB accommodates eight SATA HDD bays, each supporting drives up to 10 TB, delivering a maximum raw capacity of 60 TB. This configuration supports extended retention periods for compliance-heavy environments such as banking, transportation hubs, and large retail operations. The modular storage architecture allows for future capacity upgrades without replacing the entire system.
Integration and Deployment Flexibility
Built on Embedded Linux, the recorder natively supports ONVIF and SUNAPI protocols, enabling seamless integration with third-party IP cameras and control systems. Three RJ-45 Gigabit Ethernet ports (1 Gbps each) provide redundancy and network segmentation options. Advanced analytics including Defocus Detection, Dynamic Events, and User Event triggers enable proactive monitoring and alarm response across enterprise networks.
Audio and Environmental Specifications
Integrated audio support via G.711, G.726, and AAC (16/48 kHz) compression facilitates two-way communication and event correlation in mixed-media surveillance scenarios. The ruggedized metal chassis operates reliably across 0°C to +40°C (32°F to 104°F), making it suitable for both climate-controlled server rooms and light industrial environments. At 19.4 kg with compact 3U form factor dimensions, the unit fits standard server rack installations.
Key Features:
- 32-channel capacity with 8K and 20 MP+ resolution support
- 60 TB raw storage across eight SATA HDD bays (10 TB max per drive)
- Triple codec support: H.265, H.264, MJPEG for bandwidth efficiency
- ONVIF and SUNAPI compatibility for open ecosystem integration
- Advanced analytics: Defocus Detection, Dynamic Events, User Events
- Three 1 Gbps Ethernet ports with dual LAN/WAN capability
The XRN-3220RB2-60TB is purpose-built for organizations that demand both scale and longevity in their surveillance infrastructure. The 60 TB native capacity, combined with H.265 codec support, positions this recorder for installations where 30+ days of retention at high resolution is non-negotiable. Its support for up to 32 MP feeds and multi-codec flexibility makes it equally at home in modernized IP deployments and heterogeneous camera estates. Verify your network bandwidth allocation—three 1 Gbps ports may require careful load balancing in edge-case deployments with densely packed high-bitrate cameras.
