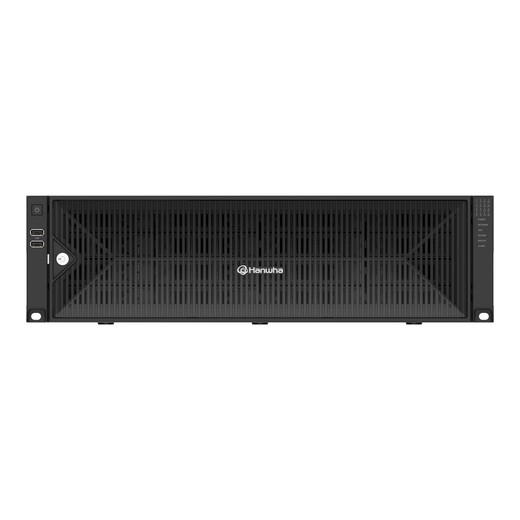

Hanwha XRN-3220B4-16TB 32-Channel 8K NVR
The Hanwha XRN-3220B4-16TB is an enterprise-grade 32-channel network video recorder engineered for large-scale surveillance deployments requiring maximum resolution and reliability. Built on 12th-generation Intel architecture, this NVR delivers exceptional performance with 520 Mbps recording bandwidth and native support for 32 MP camera streams, making it ideal for organizations demanding high-definition multi-site monitoring.
Key Features
- 32-channel capacity with up to 32 MP resolution support
- 520 Mbps distributed recording bandwidth; 300 Mbps standard mode
- H.265, H.264, and MJPEG video compression with WiseStream bandwidth optimization
- Two-way audio support for integrated communication
- PoE compatible for seamless IP camera integration
- 16TB pre-installed storage with hot-swap SATA HDD bays (expandable to 160TB)

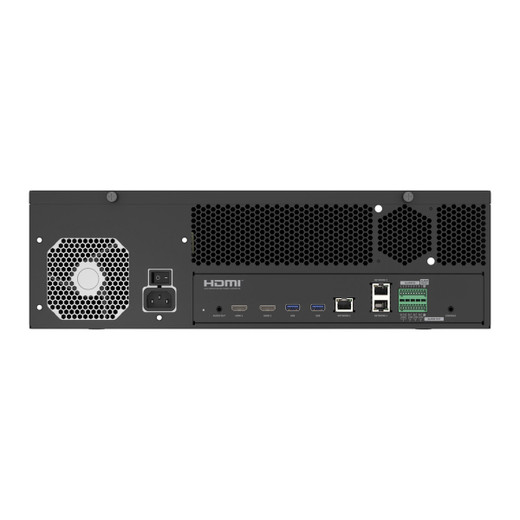

- Dual HDMI outputs: 4K at 30Hz and 1080p at 60Hz
- RAID 5/6 redundancy and N+1 failover via Automatic Recovery Backup
Recording & Performance
The XRN-3220B4-16TB supports dual-stream recording for simultaneous multi-bitrate capture, enabling efficient storage management without sacrificing image quality. With 200 Mbps playback bandwidth, operators can instantly review critical footage. Advanced features include dynamic layout with virtual channel view, local display capability up to 32 divisions, and flexible web viewing in multiple configurations (1/2H/2V/3V/4/6/8/9). Fisheye dewarping support adds flexibility for panoramic camera deployments.
Storage & Redundancy
Featuring 16 SATA HDD bays with hot-swap capability, this NVR supports RAID 5/6 configurations for critical data protection. Storage is expandable up to 10TB per drive bay, delivering maximum 160TB capacity for extended recording retention. iSCSI support enables network-attached storage integration for distributed architectures, while WiseStream technology reduces bandwidth consumption during periods of low activity.
Applications
- Enterprise campuses and multi-site facilities
- Government and critical infrastructure surveillance
- Large retail chains and distribution centers
- Transportation hubs and parking facilities
- Manufacturing and industrial monitoring
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XRN-3220B4-16TB represents Hanwha's commitment to scalable enterprise surveillance. The 12th-gen Intel processor ensures stable operation under sustained high-bandwidth loads typical in 32-channel deployments. H.265 compression paired with WiseStream delivers meaningful TCO reduction, particularly valuable when storage costs scale linearly with channel count.
The dual HDMI architecture supports control room requirements, while RAID 5/6 with N+1 failover addresses mission-critical uptime demands. For organizations expanding from analog or older IP infrastructure, this NVR's PoE compatibility and multi-codec support enable gradual technology migration without full system replacement.
