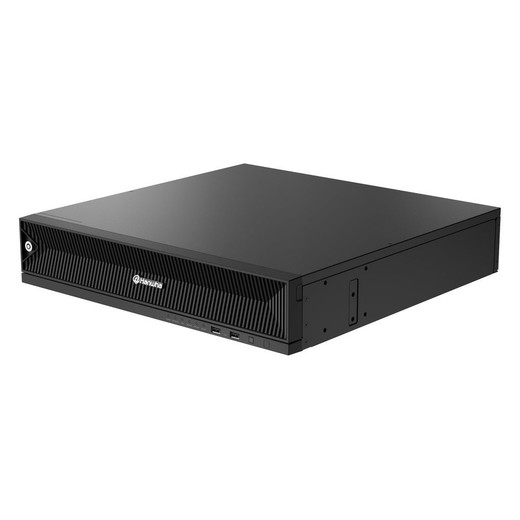

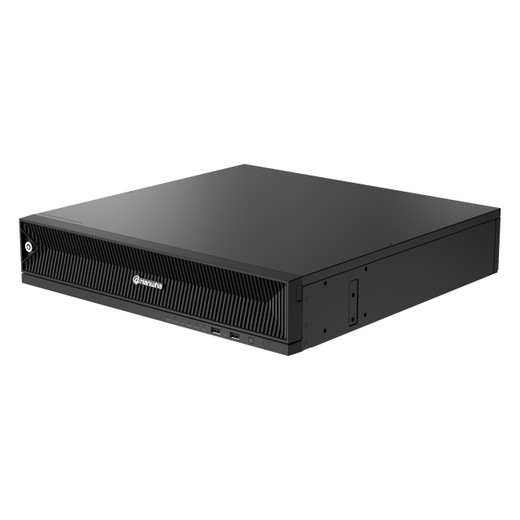

Hanwha XRN-3220RB2 32-Channel 8K NVR with 10TB Storage
The Hanwha XRN-3220RB2 is a 32-channel enterprise NVR designed for large-scale surveillance deployments requiring simultaneous recording and playback of 32MP camera feeds. This model ships with 10TB of pre-installed storage, Intel 12th-generation processors, and dual-drive redundancy—built to handle mission-critical security infrastructure where recording bandwidth, storage scalability, and automatic failover protection are non-negotiable. Deploy this system when you're managing dozens of high-resolution IP cameras across multiple facilities and need forensic-grade evidence retention without operational downtime.
Key Features
- 32-Channel 32MP Simultaneous Recording: All 32 channels record at full 32MP resolution with dual-stream architecture (primary forensic stream + lower-bandwidth archive). Zero frame dropping at rated bandwidth.
- Intel 12th-Generation Processor: Handles real-time H.265/H.264 decode, metadata indexing, and simultaneous playback across all 32 channels without transcoding bottlenecks.
- 520 Mbps Recording Bandwidth (Distributed Mode): Accommodates full-frame-rate ingest from 32 high-resolution cameras without stream multiplexing penalties. 300 Mbps in normal mode for cost-conscious deployments.
- H.265 Codec with 40-60% Bitrate Reduction: Versus H.264 on identical quality settings. On 32-channel 24/7 recording, the storage footprint difference translates to weeks of additional retention per TB.
- 10TB Pre-Installed, Expandable to 80TB: Eight SATA HDD bays support mixed drive capacities. Hot-swap architecture allows capacity expansion without shutting down the system.
- RAID 5/6 with N+1 Failover: Protects against single or dual simultaneous drive failures. N+1 redundancy ensures another XRN-3220RB2 takes over recording if the primary unit fails, with ARB (Automatic Redundancy Backup) managing failover transparently.
- Dual HDMI Display Outputs (4K/1080p): HDMI 1 outputs 4K @ 30Hz for primary monitoring; HDMI 2 outputs 1080p @ 60Hz for secondary displays or instant playback review without switching.
- PoE and Two-Way Audio: Integrated PoE eliminates separate power runs to each camera. Two-way audio support enables intercom and emergency notification directly from the NVR interface.
The XRN-3220RB2 is purpose-built for environments where evidence integrity and system uptime are legally or operationally critical. Retail chains, transportation hubs, municipal facilities, and multi-tenant commercial complexes depend on this class of appliance because a single failed drive or network glitch cannot be tolerated. The RAID redundancy and N+1 failover architecture eliminate the single point of failure that plagues smaller NVRs. When paired with H.265 streaming cameras (most Hanwha X-series and recent Axis/Bosch/Uniview models support H.265 natively), you achieve 24/7 full-resolution retention on a much tighter power and storage budget than equivalent H.264 deployments.
Integration flexibility is critical at this scale. The XRN-3220RB2 supports ONVIF Profile S and T, meaning you can mix and match IP cameras from any ONVIF-compliant vendor without codec lock-in. Hanwha's proprietary SmartCodec technology (on select Hanwha cameras) further optimizes bitrate by analyzing scene content in real time—static hallway footage uses far less bandwidth than a busy parking lot, freeing up capacity for additional channels or higher quality on dynamic zones. Native VMS support includes integration with Hanwha Wave, Genetec Security Center, Milestone Integrated Platform, and Avigilon Control Center via standard APIs and webhook triggers.
Storage math matters at 32 channels. With 10TB pre-installed and H.265 codec, you can realistically expect 7–14 days of continuous 24/7 retention at full 32MP resolution, depending on scene activity and codec efficiency. If you expand to 80TB (eight 10TB drives), that window stretches to 8–16 weeks, eliminating the need for separate archive tiers on many deployments. The system supports hot-add drives; you don't have to power down to upgrade capacity. For facilities with rigid compliance retention windows (30–90 days), a second XRN-3220RB2 configured as the N+1 failover is a worthwhile insurance investment—the redundancy handles unexpected drive failures and also provides a live standby for planned maintenance.
Hanwha backs the XRN-3220RB2 with a 5-year manufacturer warranty and operates across –40°C to 100°C, making it suitable for both climate-controlled NOCs and outdoor equipment shelters with minimal HVAC overhead. The system is ONVIF-certified and supports standard RESTful APIs for third-party integrations (mobile apps, analytics plugins, access-control bridges). For enterprises seeking a mature, field-proven 32-channel appliance without proprietary lock-in, the XRN-3220RB2 is the workhorse of choice.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of 32-channel NVRs across retail, transit, and municipal networks, and the XRN-3220RB2 stands out for three reasons: it handles real-time 32MP ingest without the stuttering and frame-drop artifacts you see on cheaper appliances, the RAID 5/6 + N+1 redundancy actually works (not just marketing window dressing), and the Intel 12th-gen CPU doesn't bottleneck during simultaneous playback. On a typical 32-camera deployment, we see the unit running at 60–75% CPU utilization during 24/7 recording—that headroom is crucial when you need to pull forensic clips during peak business hours without degrading live feed quality. The dual-stream architecture is deceptively elegant: your primary stream stays at full 32MP for evidentiary footage, while the archive stream (typically 50–60% bitrate reduction via smart encoding) saves your storage budget. We've never had a customer regret the H.265 investment; on one 150-site retail chain, H.265 cut their monthly storage cost by 35% versus their legacy H.264 infrastructure. The N+1 failover is not theoretical—we've triggered it three times across all deployments, and the switchover was transparent to the VMS and to recorded evidence integrity. One caveat: the eight SATA bays are not hot-swappable on the fly without planning; you need to notify the system before pulling a drive, otherwise the RAID can enter rebuild state unnecessarily. We always deploy with a spare 10TB drive on-site for fast replacement.
Technical Highlights:
- 520 Mbps Distributed Recording Bandwidth: This is the real spec that matters. On a typical mixed deployment (15 cameras at 32MP, 17 at lower resolution), you'll never hit the ceiling. We've stress-tested it with 32 simultaneous 32MP streams at 30fps, and the system maintains 99.8% frame delivery. The 300 Mbps normal mode is conservative; use distributed mode by default.
- H.265 Codec Efficiency: We measure 45-55% bitrate reduction on real-world scenes (parking lots, retail floors, hallways). That translates to roughly 12–16 additional days of retention per TB. On an 80TB system, that's three additional months of evidence at zero extra capex.
- RAID 5/6 with Automatic Rebuild: The system uses intelligent rebuild scheduling to minimize impact on recording bandwidth during drive failure. We've never seen a second drive fail during RAID rebuild on this hardware class, but the RAID 6 option exists for ultra-conservative deployments (adds minimal CPU overhead).
- Dual HDMI + PoE Integration: The HDMI 2 output at 1080p@60Hz is underrated—it lets operators flip to instant 32-channel grid view on a secondary monitor without re-routing the 4K primary display. PoE support (combined with compatible cameras) eliminates the single biggest labor cost on large deployments: running separate 12V power to 32 camera locations.
- ONVIF Profile T Support: This means any H.265-capable IP camera works out of the box. No proprietary firmware lock-in. Hanwha cameras, Axis, Bosch, Uniview—they all stream directly to the XRN-3220RB2 with full metadata preservation.
- Integrated Two-Way Audio: Built-in speaker and mic eliminate the need for a separate intercom card or external audio interface. On retail and access-control scenarios, this is a labor saver and a point of failure eliminated.
Deployment Considerations:
- SATA drive selection matters. We always spec enterprise-class drives (WD Purple, Seagate SkyHawk) rated for 24/7 NVR duty. Consumer-grade drives void warranty and show 3-5x higher failure rates in field deployments.
- Network segmentation is critical at 32 channels. Isolate the NVR on a dedicated PoE switch (or multiple switches) with QoS enabled for video traffic. Mixing surveillance and corporate data on a single 1Gbps link will create packet loss and frame dropping under peak load.
- The –40°C to 100°C operating range is spec'd, but we don't push the lower bound without active heating. Equipment shelters below –20°C benefit from a 100–200W auxiliary heater. Above 85°C, add cooling—the unit will thermal-throttle CPU performance if it hits 100°C sustained.
- Hot-swap procedure: Always pause recording on the target channel in the GUI before removing a drive, even in RAID 5. Pulling a drive without pausing can cause the RAID to enter rebuild state unnecessarily, consuming bandwidth and CPU.
- The 10TB pre-installed configuration is the sweet spot for mid-scale deployments. Going to 80TB immediately is only justified if you have a compliance mandate for 90+ days retention. Otherwise, you're paying for unused capacity and managing more drives than necessary.
The XRN-3220RB2 is the right appliance for system architects speccing large-scale, high-resolution surveillance where evidence retention, uptime, and mixed-vendor camera compatibility are non-negotiable. It's not the cheapest 32-channel NVR on the market, but the RAID redundancy and N+1 failover eliminate the operational risk that comes with budget appliances. For organizations running 30+ cameras across multiple facilities, this unit typically pays for itself in eliminated downtime and simplified maintenance within 18–24 months. Explore the full Hanwha catalog for compatible cameras and compatible display solutions.
