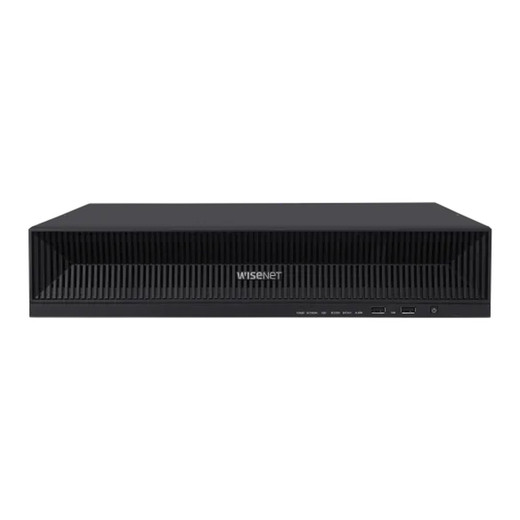

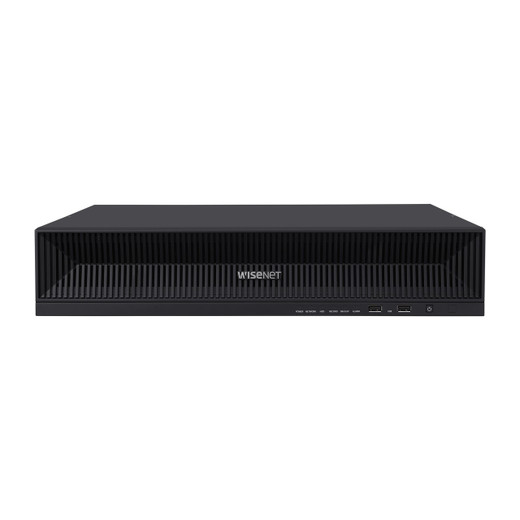

Hanwha XRN-1620B2-2TB 16-Channel 8K NVR
The Hanwha XRN-1620B2-2TB is an Intel-based 16-channel network video recorder engineered for mid-to-large scale surveillance deployments requiring high-resolution 32MP camera support. Featuring 140Mbps recording bandwidth, advanced H.265/H.264/MJPEG codec support, and 2TB factory-installed storage expandable to 80TB, this NVR delivers enterprise-grade performance with flexible scalability for growing security infrastructures.
Key Features
- 16-channel network camera input with SUNAPI and ONVIF protocol support
- 32MP maximum resolution with support for 12MP, 8.3MP, 1080p, and D1 playback modes
- 140Mbps maximum recording bandwidth and 32Mbps playback bandwidth
- H.265, H.264, and MJPEG video compression for optimized storage efficiency
- Dual stream recording with Normal, Schedule, Event, and Bookmark modes
- WiseStream bandwidth and storage optimization technology
- 2TB pre-installed storage with eight internal SATA HDD slots (expandable to 80TB at 10TB per drive)
- Dual monitor output: HDMI (FHD/UHD) and VGA (FHD)
- Web UI 2.0 with no plugin requirements and flexible multi-screen layouts
- Fisheye dewarping support on web and CMS interfaces
Recording & Event Management
The XRN-1620B2-2TB supports comprehensive event triggering including alarm inputs, video loss detection, camera sensor events, motion detection, video analytics, defocus alerts, and audio triggers. Dual stream recording enables simultaneous capture of different quality levels, while pre- and post-buffer modes preserve critical events. The embedded Linux operating system ensures stability, with Automatic Recovery Backup (ARB) and N+1 redundancy safeguarding against system failures.
Display & User Access
Dual monitor connectivity provides flexible control room configurations with independent HDMI and VGA outputs supporting both FHD and UHD resolutions. Local monitoring includes Clone mode (up to 16-division) and Expand mode (up to 9-division) for multi-screen viewing. The plugin-free Web UI 2.0 supports 1/2H/2V/3V/4/6/8/9 layout options, enabling up to 4 simultaneous users (1 local, 3 remote) with 64-channel remote playback capacity across 16 channels per user.
Applications
Ideal for retail complexes, transportation hubs, enterprise campuses, and large-scale commercial facilities requiring high-resolution surveillance with extended storage and advanced analytics integration.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XRN-1620B2-2TB represents a capable mid-tier solution for organizations requiring 16-channel capacity with 32MP support. The 140Mbps bandwidth ceiling accommodates high-resolution streams efficiently, while H.265 compression reduces storage demands—critical for the expandable 80TB maximum capacity. WiseStream optimization further extends recording duration without sacrificing quality.
The dual monitor outputs and flexible UI layouts support sophisticated control room deployments, and N+1 redundancy addresses availability requirements in mission-critical applications. Organizations should verify compatibility with their existing camera infrastructure via SUNAPI/ONVIF protocols and assess bandwidth constraints in lower-speed network environments before deployment.
