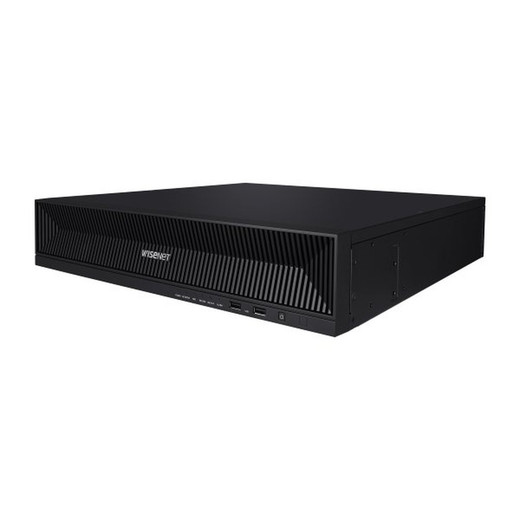

Hanwha XRN-1620B2-30TB 16-Channel 8K NVR
The Hanwha XRN-1620B2-30TB is an Intel-based network video recorder engineered for enterprise and integrator deployments requiring high-resolution 4K/8K recording with extended on-device storage capacity. This 16-channel NVR delivers professional-grade performance with support for up to 32 megapixel camera resolution, 140Mbps maximum recording bandwidth, and 30TB of pre-installed internal storage. Built on H.265, H.264, and MJPEG compression standards, the XRN-1620B2-30TB enables cost-effective retention of high-resolution video streams across all 16 channels with flexible scheduling and dual-stream recording capabilities.
Key Features
- 16-channel network camera input supporting SUNAPI and ONVIF protocols
- 32MP resolution support at 15fps H.265; 12MP at 30fps H.265; 8.3MP at 50fps
- 140Mbps maximum recording bandwidth; 32Mbps maximum playback bandwidth
- Dual-stream recording with continuous, event-driven, pre/post alarm scheduling
- 30TB internal storage (8 fixed SATA HDDs, expandable to 80TB raw capacity)
- Dual monitor output via HDMI and VGA for independent FHD/UHD display configuration
- Web UI 2.0 with multi-screen layouts supporting 1, 2H, 2V, 3V, 4, 6, 8, and 9-channel views
- Fisheye dewarping support on web interface and CMS
- N+1 failover redundancy and Automatic Recovery Backup (ARB)
Recording and Display Capabilities
The XRN-1620B2-30TB supports flexible local display modes including Clone mode (up to 16 divisions) and Expand mode (up to 9 divisions). Its dual monitor output allows independent configuration of HDMI and VGA connections for mixed resolution displays. Intelligent event triggering responds to alarm inputs, video loss, camera events (sensor, motion detection, video analytics, defocus, and audio), dynamic events, and user-defined triggers with configurable actions including email notifications and event logging.
Storage and Reliability
With 30TB of pre-installed storage and a maximum expandable capacity of 80TB raw, the XRN-1620B2-30TB accommodates extended retention periods for high-resolution streams. The recorder features N+1 failover redundancy and Automatic Recovery Backup to ensure critical surveillance data protection. Event-triggered actions enable proactive system responses and rapid incident investigation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XRN-1620B2-30TB positions itself as a mid-to-large scale NVR solution for organizations deploying 32MP or 8K-capable camera systems. The 140Mbps recording bandwidth is optimized for H.265 compression, delivering significant storage efficiency compared to H.264 without sacrificing frame rate or resolution. The dual-stream architecture enables simultaneous high-resolution recording and lower-bitrate playback/streaming, critical for real-time monitoring during active investigations.
N+1 redundancy and ARB provide enterprise-grade reliability for deployments where continuous recording availability is non-negotiable. The Intel-based processor ensures compatibility with third-party integrations and software ecosystems common in large security installations.
