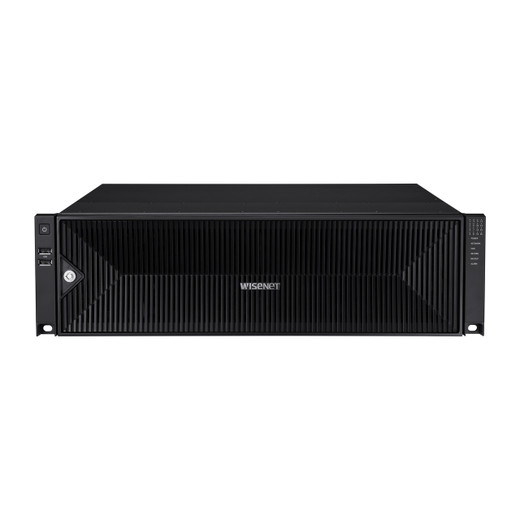

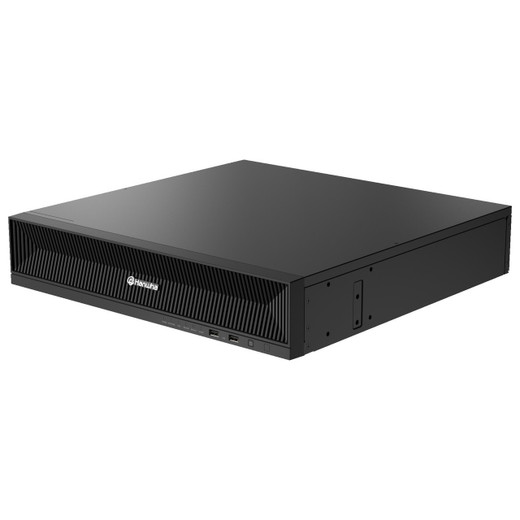

The Hanwha PRN-3200B4-160TB is a high-capacity 32-channel network video recorder engineered for large-scale surveillance deployments requiring maximum storage and processing power. Built on embedded Linux architecture, this NVR delivers robust performance for organizations managing extensive camera networks across multiple sites or large facilities.
Image Quality and Recording Capabilities
Supporting up to 32 MP resolution input, the PRN-3200B4-160TB accommodates next-generation high-definition and ultra-high-definition camera feeds. Multiple compression standards—including H.265, H.264, and MJPEG—provide flexibility in bandwidth management and storage optimization. The 160TB native storage capacity enables extended retention periods for compliance-driven environments, with efficient codec selection reducing storage demands without compromising image fidelity.
Built for Enterprise Deployment
Constructed from durable metal housing in black finish, the unit measures 17.32" wide × 5.2" high × 22.48" deep, fitting standard 19-inch rack configurations for data center and server room installations. Operating across 0°C to +40°C (32°F to 104°F), the recorder handles diverse environmental conditions typical of institutional deployments. Triple RJ-45 Gigabit Ethernet ports (1 Gbps each) support LAN/WAN connectivity for distributed camera architecture and remote management scenarios.
Integration and System Flexibility
Full ONVIF compliance ensures vendor-neutral camera compatibility and seamless integration with third-party VMS platforms and security ecosystems. Embedded analytics capabilities—including defocus detection, dynamic event triggers, and user-defined event rules—enable intelligent alerting without external software dependencies. Audio compression via G.711, G.726, and AAC (16/48 kHz) supports two-way communication and forensic audio reconstruction where required.
Key Features:
- 32-channel, 32 MP maximum resolution input
- 160TB storage capacity for extended retention
- H.265 compression for bandwidth efficiency
- ONVIF-certified for multi-brand camera support
- Triple Gigabit Ethernet ports for redundant connectivity
- Embedded Linux OS with native analytics (defocus, event detection)
This NVR is suitable for retail chains, transportation hubs, casino and hospitality venues, municipal facilities, and corporate campuses where centralized recording, long-term archival, and regulatory compliance drive system requirements.
The 160TB capacity and 32-channel architecture make this platform ideal for mission-critical installations where storage scalability and multi-site management are non-negotiable. H.265 codec support is critical for organizations already investing in 4K and higher-resolution cameras; the bandwidth savings translate directly to reduced network strain and lower infrastructure costs. Verify your camera mix against ONVIF specs before deployment to avoid compatibility surprises in large rollouts.
