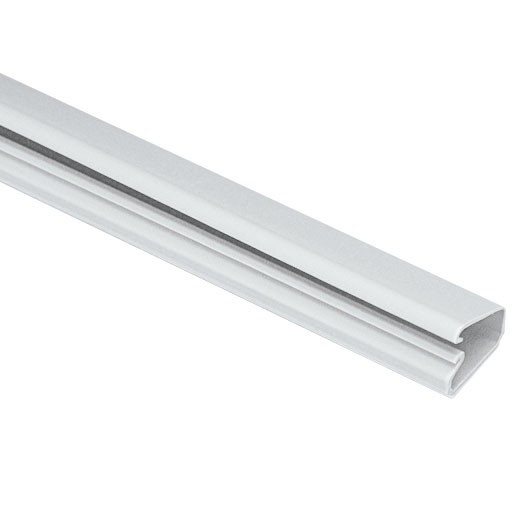

Panduit LD5WH8-A Pan-Way 8-Foot Low Voltage Surface Mount Raceway
The Panduit Pan-Way LD5 series raceway provides a clean, professional solution for routing low-voltage data, voice, and video cables in retrofit and new construction where in-wall conduit isn't practical. This 8-foot white PVC channel features a one-piece snap-on design with integrated hinged cover and factory-applied adhesive backing, eliminating the need for mechanical fasteners on smooth wall, baseboard, or ceiling surfaces. At 1.01 inches wide and 0.58 inches deep, it offers adequate capacity for typical low-voltage cable bundles while maintaining a low-profile appearance.
Key Features
- One-piece hinged design with integrated snap-on cover for easy cable access and secure closure
- Factory-applied adhesive backing accelerates installation on smooth surfaces
- 1.01" W × 0.58" H internal dimensions (25.8mm × 14.7mm) accommodate typical low-voltage cable bundles
- 8-foot length (2.4m) reduces the number of joints and fittings required
- Rigid white PVC construction maintains shape under cable load
- UL94V-0 flame rating and FT4 compliance for commercial installations
- TIA/EIA compliant for structured cabling systems
- Compatible with Panduit Mini-Com modules and surface mount electrical boxes
The LD5 channel uses a hinged one-piece construction where the cover snaps closed over the cable bundle after installation, eliminating separate cover strips and the fasteners typically required to secure them. The factory-applied adhesive backing bonds to painted drywall, wood trim, and other smooth finished surfaces, though mechanical fastening is recommended for textured walls or high-vibration environments. The 1.01" × 0.58" cross-section provides room for multiple Cat6 cables, coax runs, or speaker wire while keeping the profile under an inch from the wall surface. White PVC matches standard trim and blends into most commercial and residential environments.
Pan-Way LD5 raceway is designed for commercial AV installations, office data retrofits, conference room buildouts, and any low-voltage application where surface routing is more practical than cutting into existing walls. It's commonly used along baseboards to distribute network drops in open office layouts, around ceiling perimeters for overhead camera and access control runs, or along columns and door frames where conduit would be visually intrusive. The rigid PVC construction resists sagging between mounting points and maintains a clean appearance over long runs.
UL listed and TIA/EIA compliant, the LD5 raceway meets commercial building requirements for low-voltage pathway systems. The UL94V-0 flame rating and FT4 compliance ensure it performs appropriately in plenum-adjacent spaces and commercial fire zones. As part of Panduit's Pan-Way ecosystem, it integrates with matching elbows, tees, termination boxes, and Mini-Com surface mount housings for a complete surface routing solution. The rigid PVC formulation maintains dimensional stability across typical HVAC temperature swings and resists impact during installation and building use.
