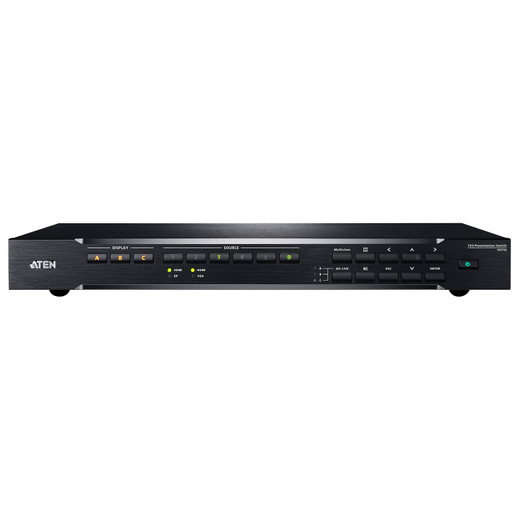

ATEN VP2730 7x3 Seamless Presentation Matrix Switch with Streaming

The ATEN VP2730 is a rack-mount 7-input, 3-output seamless presentation matrix switch designed for conference rooms, lecture halls, and AV integration environments where multiple signal sources need to be routed to multiple displays — including a live streaming output — without cuts, flickers, or signal renegotiation delays. Seven inputs span the full range of modern and legacy connector types: five HDMI, one DisplayPort, and one VGA (HDB-15), so you can connect a laptop, a videoconferencing codec, a Blu-ray player, and a legacy PC to the same switcher without adapters. Explore the full ATEN AV and KVM product line for complementary switching and extension hardware.

When This Is the Correct Choice

Deploy the VP2730 when you need to feed three independent outputs simultaneously — two local displays plus a live stream destination — while retaining clean seamless switching between sources. The built-in streaming output (3 amber Go Live indicators on the front panel confirm active stream status) eliminates the need for a separate encoder appliance in rooms that routinely broadcast presentations to remote participants. HDCP 1.4 compliance on both HDMI and DisplayPort inputs means copy-protected content from Blu-ray or streaming sticks passes through without stripping, which is a recurring headache on cheaper matrix switchers that drop HDCP negotiation mid-session.

When to Choose a Different Model

If your installation requires more than three simultaneous outputs, or if you need 4K60 4:4:4 signal integrity at distances beyond 15 meters on all outputs, consider a higher-channel-count variant in the ATEN presentation matrix switch family. The VP2730's HDBassT output supports 1080p at up to 60 meters on Cat 5e/6 or 70 meters on Cat 6a or ATEN 2L-2910 cable — useful for conference rooms with distant secondary displays, but if your primary requirement is 4K over long runs, evaluate a model specifically rated for 4K HDBassT transmission.

Key Features

• 7 Inputs, Mixed Connector Ecosystem: Five HDMI Type A, one DisplayPort, and one HDB-15 (VGA) female inputs let you accommodate every source type in a typical enterprise meeting room — modern laptops via HDMI or DP, legacy PCs via VGA — without a breakout adapter box. Fewer adapters in the rack means fewer failure points during a live meeting.
• HDBassT Long-Run Output: The HDBassT output carries 1080p video up to 60 meters on Cat 5e/6 cabling, or up to 70 meters on Cat 6a or ATEN 2L-2910 Cat 6 cable — critical for boardrooms or auditoriums where the secondary display is across the room from the rack. This eliminates the cost of running new HDMI cable through finished walls.
• 3 Simultaneous Outputs with Live Streaming: Three amber Go Live indicators on the front panel confirm which outputs are active. The dedicated streaming output means you can feed two local displays and a streaming encoder path concurrently, making the VP2730 appropriate for hybrid meetings where in-room and remote audiences share the same presentation feed.
• Seamless Switching: Source transitions happen without black-frame drops or EDID renegotiation, which matters in live presentation environments where a momentary blank screen breaks audience focus. EDID management includes ATEN Default and Display A modes, giving integrators control over what resolution the source device negotiates on connection.
• Full Audio Breakout: Optical (Toslink), coaxial (RCA), and stereo analog (dual RCA white/red) audio outputs are all present simultaneously. This allows you to feed a DSP, a recording system, and a local amplifier from a single switcher without splitting or converting audio downstream. Phantom power via a slide switch supports condenser microphone inputs where applicable.
• CEC Pass-Through: Consumer Electronics Control on both HDMI and DisplayPort inputs allows connected displays to be powered on/off via the switcher, reducing the manual steps AV operators must handle at the start and end of a meeting.
• Network Control via RJ-45: The single RJ-45 Ethernet port enables IP-based control and integration with room automation systems or third-party control processors. This is the path for scheduling-driven automation (lights out, source select, display power) in managed conference environments.
• Wide Voltage Input: 100–240 VAC, 50–60 Hz at 1.0A means the VP2730 deploys globally without a step-down transformer — relevant for international installations or mixed-voltage facilities.

Integration and Compatibility

The VP2730 integrates with AV-over-IP and control infrastructure via its RJ-45 Ethernet port, supporting IP-based command and control from room automation systems. HDCP 1.4 compatibility on HDMI and DisplayPort inputs ensures pass-through of protected content. EDID management (ATEN Default or Display A modes) lets integrators lock the handshake resolution so sources always output at the correct spec regardless of which display is connected downstream — a common source of resolution drift in multi-display installs. The firmware was last updated to v1.4.131 (released 2024-12-16), indicating active software support. For installations requiring audio routing to a separate DSP or amplifier, the simultaneous Toslink, coaxial, and stereo analog audio outputs remove the need for a standalone audio extractor. Pair with an HDBassT receiver at the far-end display for the long-run Cat cable output.

Frequently Asked Questions

Q: How many video inputs does the VP2730 support, and what connector types?

A: The VP2730 accepts 7 video inputs: five HDMI Type A female, one DisplayPort female, and one HDB-15 (VGA) female. This covers modern and legacy PC/laptop sources without requiring adapters.

Q: What is the maximum HDBassT transmission distance?

A: The HDBassT output supports 1080p video at up to 60 meters on Cat 5e or Cat 6 cabling, and up to 70 meters on Cat 6a or ATEN 2L-2910 Cat 6 cable.

Q: Does the VP2730 support live streaming?

A: Yes. The VP2730 has 3 Go Live outputs (indicated by amber front-panel LEDs), enabling simultaneous local display and streaming encoder feeds from a single unit.

Q: What audio outputs are available on the VP2730?

A: The VP2730 provides three simultaneous audio outputs: one optical (Toslink), one coaxial (RCA), and stereo analog (two RCA, white and red). A phantom power slide switch is also present for microphone inputs.

Q: What EDID management modes are available?

A: The VP2730 supports two EDID modes: ATEN Default and Display A. This allows integrators to fix the source resolution handshake and prevent resolution drift when displays are changed or powered off.

Q: What is the input voltage range for the VP2730?

A: The VP2730 accepts 100–240 VAC at 50–60 Hz, 1.0A, making it compatible with both North American and international power infrastructure without a voltage converter.

Jerry Tildsen

The VP2730 earns its place in enterprise AV racks specifically because of its simultaneous triple-output architecture — two local displays plus a Go Live streaming path, all active at once, all seamlessly switched. Most integrators deploying this in a 400-seat auditorium or a corporate boardroom are solving the same problem: the AV system needs to serve the room AND a remote audience simultaneously, without a second encoder appliance on the shelf.

Technical Highlights:

• HDBassT at 70m (Cat 6a): Running a secondary display 70 meters from the rack is achievable on Cat 6a without a signal amplifier or repeater — this is the spec that eliminates a balun pair on long conference room runs and keeps the rack clean.
• Audio Breakout Trio (Toslink + Coaxial + Stereo Analog): All three outputs are live simultaneously. In rooms with a DSP processor feeding ceiling speakers AND a recording system, you tap Toslink to the DSP, coaxial to the recorder, and the stereo pair to a local monitor amp — all from the same VP2730 rear panel, no passive splitter needed.
• EDID Modes — ATEN Default vs. Display A: This is the detail that saves a service call. Locking EDID to ATEN Default means a presenter's laptop always negotiates to the same resolution regardless of which display is powered on downstream. Display A mode mirrors the primary display's EDID for environments where the source needs to match the primary screen exactly.

Deployment Considerations:

• The HDBassT long-run spec (70m) is specifically tied to Cat 6a or ATEN's own 2L-2910 Cat 6 cable — standard Cat 5e gets you 60m. Spec the cable run correctly at design time or you'll be troubleshooting signal degradation during commissioning.
• HDCP 1.4 is supported, but integrators using content from platforms that require HDCP 2.2 (some streaming services, newer UHD Blu-ray) should verify the source device's HDCP version before finalizing the signal chain — the VP2730's HDCP 1.4 ceiling may require a handshake workaround.

The VP2730 is the right tool for hybrid meeting rooms and live-broadcast auditoriums where the integrator needs one device to handle source selection, display routing, audio breakout, and streaming feed — all from a single rack unit with IP control already wired in.
