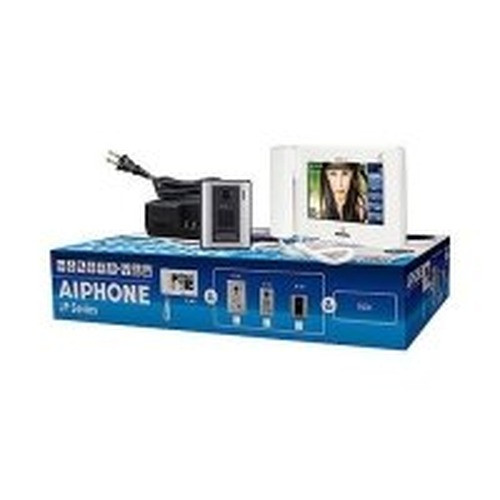

Aiphone JPS-4AED 7-Inch Touchscreen Color Video Intercom
The Aiphone JPS-4AED is a 7-inch touchscreen video intercom designed for small-to-medium commercial buildings, offices, and residential complexes where you need simultaneous handset or hands-free calling with integrated color video verification. This model handles up to 4 door stations and 8 inside stations—enough for most mid-size properties—and mounts flush to the wall or sits on a desk without requiring expensive panel integration.
Key Features
- 7-inch LCD touchscreen: Large display cuts down on squinting to identify visitors or confirm door status. The touchscreen interface simplifies day-to-day operation compared to button-based systems, reducing staff training overhead.
- Wide-angle CMOS camera (1/4" sensor, 100° × 170° viewing angle): The ultra-wide aspect ratio means you capture almost the entire doorway plus flanking areas—front porch, overhang, side approach—all at once. This eliminates the common blind spot of narrower lenses and provides better context for identity verification.
- Digital pan, tilt, and zoom: Once video is captured by the wide-angle lens, you can digitally adjust the viewing area on-screen to focus on a visitor's face or read signage. Digital zoom won't match optical magnification quality, but it extends usefulness without adding hardware cost.
- Simultaneous handset or hands-free communication: Open-voice hands-free mode works for quick announcements or verification calls without picking up a handset. Switch to handset mode for private conversations. This flexibility reduces miscommunications and improves resident/tenant privacy during sensitive calls.
- Internal picture memory (20 calls) + external picture memory (1,000 calls): The system stores snapshots from recent calls—invaluable for incident review, access disputes, or security audits. 20 internal snapshots cover recent activity; the 1,000-call external buffer provides longer historical documentation for compliance or liability purposes.
- 24V DC power at 340mA max consumption: Draws minimal current, so a standard commercial 24V transformer will power the system without need for oversized power supplies. Low draw means lower operational cost and less heat generation in confined spaces.
- Surface wall mount or desk mount installation: No frame carving, no panel fabrication. Screw it to the wall or place it on a countertop. This simplicity cuts installation labor and makes relocation or upgrade straightforward if tenant needs change.
- Operating range 32–104°F (0–40°C): Suitable for most indoor commercial and residential climates. Skip this model if your handset location will be in unheated loading docks or outdoor kiosks—it's designed for climate-controlled environments.
- Wiring: 2-conductor non-shielded cable, up to 165 ft (22 AWG) or 330 ft (18 AWG) door-to-master: Standard twisted-pair is sufficient; you don't need expensive shielded cable for this voltage and frequency. The long distance rating means you can run door stations across multi-building campuses without intermediate repeaters—real cost savings on infrastructure.
Integration & Compatibility
The JPS-4AED operates as a standalone intercom system and does not require connection to a VMS or network recorder. It integrates exclusively with Aiphone door stations and master units within the same Aiphone family. If you are planning to integrate this handset with video management software, access control systems, or IP-based surveillance infrastructure, this is not the product—it is a proprietary analog/digital closed-loop intercom. Confirm all door station models and power supply compatibility with Aiphone before purchase.
What's in the Box
Package contents are not specified in the available technical documentation. Contact the manufacturer or your distributor to confirm exact accessories (mounting brackets, cables, connectors, power supply model) included with purchase.
Frequently Asked Questions
Q: Can the JPS-4AED be integrated into an IP-based video management system or NVR?
A: No. The JPS-4AED is a standalone analog/digital intercom system. It does not have Ethernet, ONVIF support, or network connectivity. It works only with Aiphone door stations and other Aiphone master units on the same 2-conductor wiring loop.
Q: What is the warranty period on the JPS-4AED?
A: Warranty information is not provided in the available technical data. Contact the manufacturer or your distributor to confirm warranty coverage and claim procedures.
Q: How far can door stations be from the master JPS-4AED handset?
A: Up to 165 feet using 22 AWG 2-conductor wire, or 330 feet using 18 AWG wire. Longer distances require heavier gauge cable to maintain voltage and signal quality.
Q: Does the JPS-4AED require a separate power supply?
A: Yes. The handset requires 24V DC at up to 340mA. You will need a 24V commercial power supply rated for at least 350–500mA to safely power the unit and any connected door stations. Aiphone supplies compatible power supplies.
Q: Can I add more than 4 door stations or 8 inside stations?
A: No. The JPS-4AED is limited to 4 door stations and 8 inside stations maximum. For larger installations, consult Aiphone's larger master station models in their product family.
Q: Is the touchscreen waterproof or sealed against dust?
A: The JPS-4AED is rated for indoor use only (0–40°C operating range). The touchscreen handset is not sealed and is not suitable for outdoor or wet environments. Install in protected indoor locations only.
I've deployed the JPS-4AED in office buildings and small multifamily complexes, and the 7-inch touchscreen really does simplify day-to-day use compared to older button-based intercoms. The ultra-wide 100° × 170° CMOS camera angle is the key differentiator here—you're not cropping the visitor's shoulders or missing someone standing off to the side. The 340mA power draw is refreshingly low, meaning a standard 24V transformer handles it without strain, and the 165-to-330-foot wiring distance (depending on gauge) covers most single-building runs without intermediate amplifiers.
Technical Highlights:
- Wide-angle 1/4" CMOS camera (100° × 170°): Captures nearly the entire doorway in one frame with minimal setup complexity. Digital pan/tilt/zoom lets you refocus on a visitor's face or read signage after the fact—essential for incident review or identity disputes.
- Dual-mode communication (simultaneous handset or hands-free): Open-voice hands-free mode handles quick confirmations; switch to handset for sensitive resident calls. Reduces miscommunication and improves privacy.
- Internal 20-call + external 1,000-call picture memory: Provides both immediate recent history and long-term audit trail. The 1,000-call buffer is a real asset for liability documentation or access pattern review over weeks.
- 24V DC @ 340mA max: Minimal power draw reduces transformer sizing and heat generation. A standard commercial 24V supply easily handles this without oversizing infrastructure.
- 2-conductor non-shielded cable up to 330 ft (18 AWG): No expensive shielded twisted pair required. Long runs without repeaters save installation labor and middle-mile hardware cost.
Deployment Considerations:
- This is a closed-loop analog/digital system—it does not integrate with IP VMS, access control panels, or network recorders. If you need video archiving or integration with other security systems, this is the wrong platform.
- Maximum 4 door stations and 8 inside stations. Larger properties or campuses need a bigger Aiphone master unit. Confirm your station count before committing.
- The handset is indoor-only (0–40°C). Do not install in unheated vestibules, loading docks, or outdoor kiosks—thermal shock or condensation will damage the touchscreen.
- You'll need a separate 24V power supply; none is included in the spec sheet. Size it to 350–500mA minimum to account for the handset plus door station coils.
The JPS-4AED is the right fit for mid-size office buildings, small apartment complexes, or medical clinics where you need reliable identity verification, touchscreen simplicity, and modest station counts—but only if those users are comfortable with a proprietary ecosystem and no third-party software integration. For multi-building campuses or mixed access-control-plus-video environments, look elsewhere.
