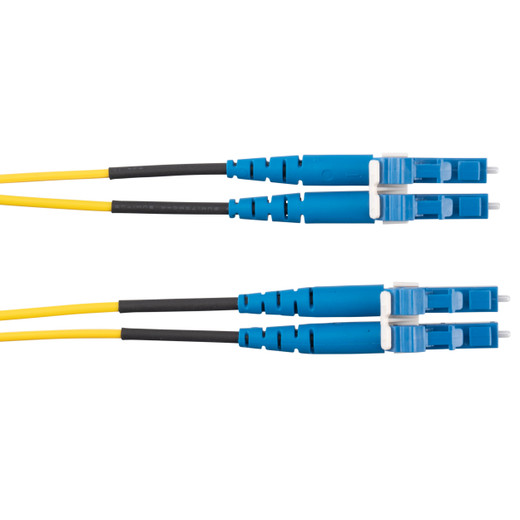

Panduit F92ERLNLNSNM006 6M LC Duplex SM Fiber Patch Cord

Panduit F92ERLNLNSNM006 Opti-Core OS1/OS2 Duplex LC Single-Mode Fiber Patch Cord

The Panduit F92ERLNLNSNM006 delivers enterprise-grade single-mode fiber connectivity for high-bandwidth security networks, datacenter backbone runs, and IP surveillance infrastructure. This 6-meter duplex LC patch cord uses OS1/OS2 9-micron fiber rated for multi-kilometer transmission distances and supports 10GbE, 40GbE, and 100GbE protocols without wavelength limitations. Riser-rated (OFNR) jacket construction meets NEC Article 770 requirements for vertical cable runs between floors, eliminating the need for conduit in plenum-to-IDF drops. Yellow PVC jacket follows TIA-598-C color coding for instant single-mode identification during MAC work.

Key Features

• OS1/OS2 single-mode fiber supports 10G/40G/100G transmission over multi-kilometer distances with minimal chromatic dispersion
• Duplex LC connectors on both ends—industry-standard SFF interface for switches, media converters, SFP+ transceivers, and fiber enclosures
• 6-meter (19.7 ft) length handles rack-to-rack connections, cross-aisle runs, and inter-floor pathways in telecom rooms and equipment spaces
• OFNR riser-rated jacket complies with NEC 770.154(A) for vertical installations in non-plenum shafts and risers
• 1.6 mm cable diameter and 2-fiber count minimize pathway congestion in high-density fiber trunks
• Standard insertion loss specification ensures compatibility with structured cabling link budgets per TIA-568-C.3
• Yellow jacket color provides immediate visual differentiation from multimode (orange/aqua) fiber in mixed-mode installations
• Factory-terminated LC connectors eliminate field-polishing labor and deliver consistent sub-0.3 dB insertion loss

Single-mode fiber is the backbone choice for IP security installations requiring sustained 4K/8K camera streams, NVR-to-NVR replication, or campus-wide PoE++ switch uplinks. The F92ERLNLNSNM006 uses 9-micron core fiber that propagates a single light mode at 1310 nm and 1550 nm wavelengths, supporting transmission distances exceeding 10 km on 10GBASE-LR optics and 40 km on 10GBASE-ER without repeaters. This makes it ideal for connecting building-to-building security networks, linking remote camera clusters to centralized recording infrastructure, or trunking VMS traffic between geographically separated datacenters. The duplex LC interface is the de facto standard for enterprise SFP/SFP+/SFP28 transceivers—Cisco, Ubiquiti, Aruba, Juniper, and Axis all use LC ports on their fiber-enabled switches and media converters. Each connector uses a ceramic ferrule with physical-contact (PC) polish to minimize back reflection and maintain insertion loss below 0.5 dB across the mated pair, ensuring optical power budgets remain within specification even after multiple reconnections during MAC operations.

The riser-rated OFNR jacket is UL 1666-tested for flame propagation resistance in vertical shafts, making this cable code-compliant for runs from basement MDFs to upper-floor IDFs without requiring plenum-rated cable or metal conduit. This reduces material cost and installation labor in buildings where riser pathways do not share airflow with HVAC systems. The 1.6 mm outer diameter keeps bundle size manageable when running multiple patch cords through ladder rack, J-hooks, or vertical cable managers—six of these cables occupy less space than a single Cat6A trunk. Yellow PVC jacket follows the TIA-598-C color standard for OS1/OS2 fiber, preventing accidental cross-connection with OM3/OM4 multimode links during adds and changes. The 6-meter length is practical for same-row equipment connections in 42U racks with overhead or underfloor cable management, cross-connects between adjacent racks in hot-aisle/cold-aisle layouts, and floor-to-floor jumpers in stacked IDF closets.

Panduit Opti-Core patch cords are factory-tested to ISO/IEC 11801 and TIA-568-C.3 insertion loss limits, ship with individually serialized test reports, and include removable dust caps on all LC connectors to protect ferrule end-faces during storage and pre-installation staging. The duplex LC form factor is push-pull latching—no tools required for connection or disconnection—and the connector boot is strain-relieved to prevent kinking at the cable exit point during repeated flexing in swing-out patch panels or sliding rack trays. For integrators deploying fiber-connected PoE switches, 10G storage arrays, or fiber-based building automation backbones, this patch cord provides plug-and-play connectivity with verifiable performance and NEC-compliant fire rating in a single off-the-shelf assembly.
