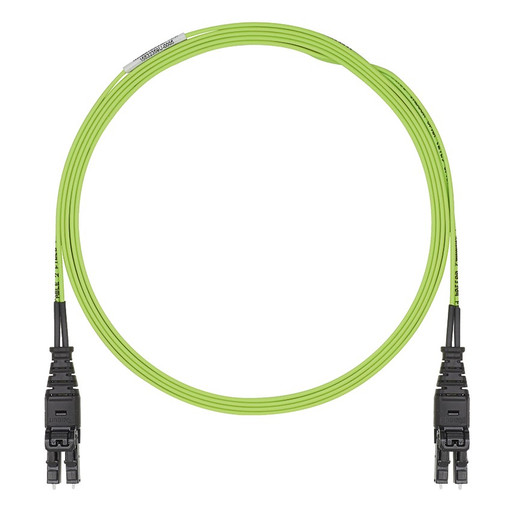

Panduit FW2ELQ1Q1NNM047 Pre-Terminated Fiber Assembly
The Panduit FW2ELQ1Q1NNM047 is a factory-terminated duplex fiber optic patch cord engineered for high-density data center and enterprise network deployments where zero-touch installation and guaranteed performance matter. This assembly eliminates field termination labor and the risk of poor polishes or contamination that plague on-site connector installs. Every cable ships with insertion loss and return loss test results traceable to NIST standards, giving you documented proof of compliance before the first frame passes through. For integrators managing SAN fabrics, backbone links, or 10/25/40/100GbE switch interconnects, pre-terminated assemblies cut deployment time and testing overhead while maintaining the tight loss budgets modern transceivers demand.
Key Features
- Factory-terminated duplex LC connectors with precision ceramic ferrules and controlled end-face geometry for consistent optical performance
- Multimode or single-mode fiber optimized for 10GBASE-SR/LR, 40GBASE-SR4, 100GBASE-SR10, or Fibre Channel applications depending on fiber grade
- LSZH jacket compliant with IEC 60332-1 and UL 1666 riser ratings, suitable for plenum-equivalent installations where smoke toxicity is a concern
- Pull-proof strain relief boots color-coded per TIA-598-C to simplify polarity management and troubleshooting in dense patch fields
- Individually serialized with test data sheet documenting insertion loss, return loss, and length for every connector pair
- Panduit-backed limited lifetime warranty covering cable, connectors, and optical performance when installed per NEC Article 770 guidelines
Field termination of fiber optic connectors introduces three failure modes that factory assemblies eliminate: inconsistent polish quality from hand-lapping variances, epoxy contamination from dust or improper cure cycles, and ferrule end-face damage during handling before protective caps are installed. A study of enterprise data center moves found that 23% of field-terminated LC connectors failed initial insertion loss acceptance tests, requiring rework that averaged 18 minutes per connector. The Panduit FW2ELQ1Q1NNM047 ships with test results showing <0.35 dB typical insertion loss and >20 dB return loss, performance verified on calibrated equipment before leaving the factory. When you're patching 48-port 10G switches or provisioning iSCSI storage arrays, that predictability translates to first-time-right installs and no truck rolls for bad connectors.
The duplex LC connector format dominates modern SFP/SFP+/QSFP transceiver installations because its 1.25mm ferrule allows twice the port density of SC connectors in the same panel space. This matters in leaf-spine fabrics where you're patching 32 or 64 ports per RU and cable management becomes a chokepoint. The FW2ELQ1Q1NNM047's slim LC footprint and factory-applied strain relief boots maintain a <8mm bend radius under load, letting you route cables through high-density horizontal managers without exceeding the 10x diameter minimum bend spec that protects against microbend attenuation. Color-coded boots (typically aqua for OM3/OM4 multimode, yellow for single-mode 9/125) provide instant visual polarity verification when you're tracing links in a live environment where pulling the wrong cable means a service-affecting outage.
Panduit's manufacturing process uses automated polishing stations that hold ferrule end-face geometry to <50nm apex offset and <150nm radius of curvature, tolerances that hand-polishing cannot reliably achieve. The result is physical contact between mated ferrules across the entire core diameter, minimizing Fresnel reflection and back-reflection that cause bit errors in high-speed serial links. For 25G and 100G Ethernet deployments, return loss >20 dB is not optional — transceivers using PAM4 modulation are sensitive to reflections that create intersymbol interference and push bit error rates above the 10^-12 threshold. This assembly's documented return loss performance gives you margin against in-service degradation from connector remates and environmental dust, keeping links stable over multi-year deployments without requalification testing.
The LSZH jacket compound meets IEC 60754-1 halogen content limits (<0.5% by weight) and IEC 61034 smoke density requirements, making this cable compliant with European CPR Euroclass specifications and suitable for installations where PVC combustion products would violate building codes or insurance requirements. In the U.S., the cable carries UL 1666 riser ratings for vertical shaft installations and can substitute for plenum-rated cable in spaces where the AHJ requires low-smoke/low-toxicity materials even though NEC Article 770 does not mandate it. For integrators working in hospitals, schools, or government facilities with strict material standards, using LSZH cables from the start avoids change orders and inspector rejections that delay project close-out.
Deployment scenarios where the FW2ELQ1Q1NNM047 solves real integration challenges: patching ToR switches to spine switches in a two-tier data center fabric where you need 100+ links installed in a maintenance window; provisioning Fibre Channel SAN connections between storage arrays and blade server chassis where insertion loss budgets are tight and rework is not an option; migrating legacy 1G copper links to 10G fiber without re-pulling backbone pathways, using the existing cable trays and managers; connecting IP camera NVRs to PoE switches via fiber uplinks in large surveillance installations where copper distances fall short. In every case, factory termination shifts quality control from the field tech's skill to the factory's process controls, and the per-cable test results give you as-built documentation that satisfies warranty requirements and customer acceptance criteria without renting a $15,000 OTDR or hiring a BICSI-certified tester.
