Panduit FZ2ERLNLNSNM002 OM4 Duplex LC Fiber Patch Cord

Panduit FZ2ERLNLNSNM002 Opti-Core OM4 Duplex LC Fiber Optic Patch Cord

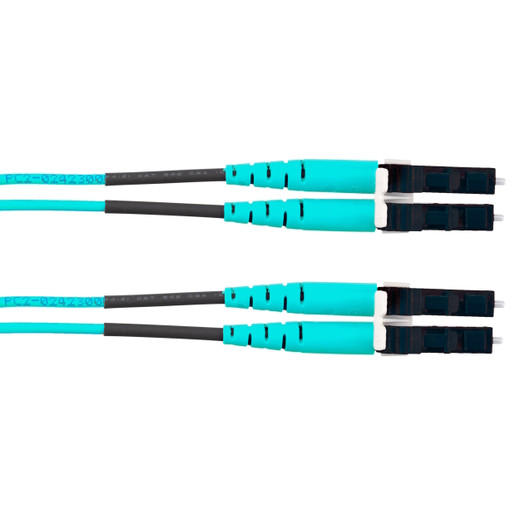

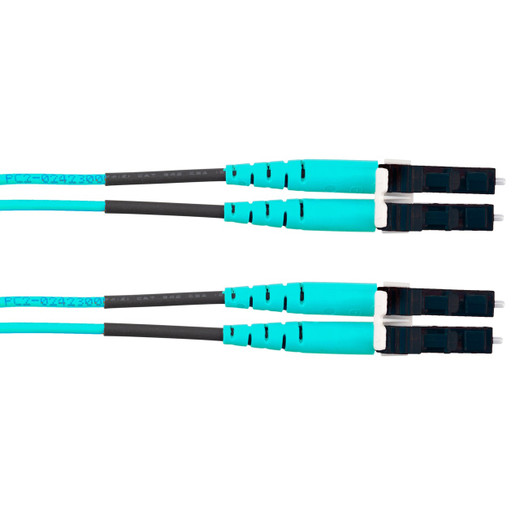

The Panduit FZ2ERLNLNSNM002 is a 2-meter OM4 duplex fiber patch cord designed for high-speed interconnection in data centers, telecom rooms, and enterprise network environments. Featuring duplex LC connectors on both ends and Opti-Core 50μm multimode fiber, this riser-rated cable supports 40GBASE-SR4 and 100GBASE-SR4 applications up to 150 meters. The aqua jacket provides immediate OM4 identification, while OFNR flammability rating qualifies the cable for vertical runs between floors in plenum-return buildings.

Key Features

• OM4 50μm multimode fiber supports 40G/100G Ethernet up to 150m and 10G up to 550m
• Duplex LC connectors on both ends for standard enterprise SFP+/QSFP+ transceiver interconnection
• 2-meter (6.5 ft) length ideal for rack-to-rack, panel-to-switch, or adjacent-equipment connections
• OFNR riser rating meets NEC vertical pathway requirements for non-plenum installations
• Aqua jacket follows TIA-598-D color coding standard for instant OM4 recognition
• 1.6mm cable diameter balances flexibility with durability in high-density pathway environments
• Factory-terminated with standard insertion loss ensures reliable link performance out of the box

OM4 laser-optimized multimode fiber delivers the bandwidth required for next-generation data center architectures. The 50μm core supports 40GBASE-SR4 and 100GBASE-SR4 applications at distances up to 150 meters—sufficient for the vast majority of intra-building horizontal and backbone runs. At 10G speeds, OM4 extends reach to 550 meters, providing headroom for campus distribution topologies without the cost and complexity of single-mode infrastructure. Duplex LC connectors are the de facto standard for enterprise transceivers; their small form factor supports high port density on switch faceplates and fiber panels, while the push-pull latch mechanism simplifies moves, adds, and changes in congested rack environments. The OFNR riser rating qualifies this cable for vertical pathways between floors where plenum rating is not required, covering the majority of riser and backbone installations in commercial buildings.

This patch cord is factory-terminated and tested, eliminating the labor, training, and equipment costs associated with field termination. Pre-terminated links also reduce insertion loss variability and installation errors—critical factors in 40G and 100G deployments where link budgets are tight. The 2-meter length is a common dimension for connections between adjacent racks, patch panel to top-of-rack switch, or storage array to SAN fabric interconnects. Panduit Opti-Core patch cords are built to the same mechanical and optical specifications as the company's structured cabling systems, ensuring compatibility with Opti-Core cassettes, panels, and enclosures deployed in main, horizontal, and equipment distribution areas. The aqua jacket is not decorative—it's a standards-based visual indicator that identifies OM4 performance at a glance, reducing the risk of mismatched fiber types during maintenance or expansion projects.

The FZ2ERLNLNSNM002 meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), and TIA-604-10 (FOCIS-10) specifications, ensuring interoperability with standards-compliant transceivers and infrastructure. For integrators managing multi-vendor environments, these compliance marks simplify procurement, reduce testing overhead, and provide defensible documentation for customer acceptance and warranty claims. Panduit's Opti-Core platform is engineered for mission-critical fiber deployments where uptime, performance, and long-term reliability are non-negotiable.
