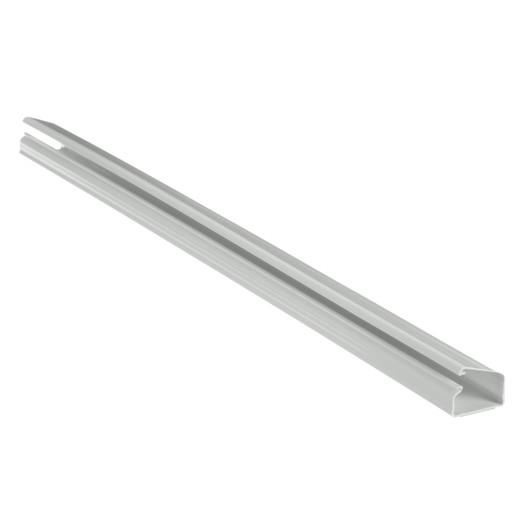

Panduit LD10IG6-A Pan-Way Single Channel Surface Raceway
The Panduit LD10IG6-A is a 6-foot single-channel surface raceway designed for commercial integrators and IT installers routing low-voltage data, voice, and video cabling in retrofit or surface-mount applications. The one-piece hinged LD10 channel combines a latching cover with factory-applied adhesive backing, eliminating the need for separate mounting hardware and cutting installation time on office walls, conference rooms, retail spaces, and datacenter perimeter runs where in-wall routing isn't feasible.
Key Features
- One-piece hinged design with integrated latching cover — lay cables in without disassembly
- 1.51" W × 0.94" D internal cross-section (38.4 mm × 24.0 mm) accommodates Cat 6A, fiber, and multi-conductor bundles
- Factory-applied 3M VHB adhesive backing bonds to painted drywall, metal, and sealed concrete — no screws or anchors required
- 6-foot continuous length reduces visible seams and joints on long wall runs
- Rigid PVC construction with UL94V-0 flame rating and FT4 fire test compliance
- International Gray finish matches standard office and datacenter environments
- TIA/EIA standards compliant for structured cabling installations up to 50 V
- Terminates directly with Panduit Mini-Com surface mount boxes or LD raceway fittings
The LD10 raceway solves the visible-cable problem in spaces where pulling new conduit or opening walls isn't an option. The hinged cover snaps open along its length, letting you lay cable bundles into the channel without threading from one end — critical when retrofitting live spaces or adding circuits to occupied floors. The adhesive backing is rated for permanent interior mounting on clean, dry surfaces; for high-vibration or outdoor-adjacent areas, supplement with mechanical fasteners through the base every 24 inches. The 0.94-inch depth handles up to eight Cat 6A cables or a mixed bundle of copper and fiber without overfilling, maintaining bend-radius compliance per TIA-568. Rigid PVC construction provides impact protection in high-traffic corridors and elevator lobbies where flex tubing would sag or kink.
Panduit's LD raceway system includes matching elbows, tees, and surface boxes, so you can build complete pathways from telecom closets to workstations without exposing cable. The International Gray color is Pantone-neutral and blends with most commercial paint schemes; for custom environments, the PVC surface accepts latex paint after light sanding. Each 6-foot section ships with protective film over the adhesive — peel and press in place, then snap the cover shut. No cutting or drilling during installation means zero drywall dust and faster job-site cleanup. This raceway meets TIA/EIA structured cabling standards and is rated for low-voltage applications up to 50 V, making it compliant for PoE+ trunk lines, AV control wiring, IP camera drops, and access-control home runs in enterprise installations where code-compliant cable concealment is non-negotiable.
