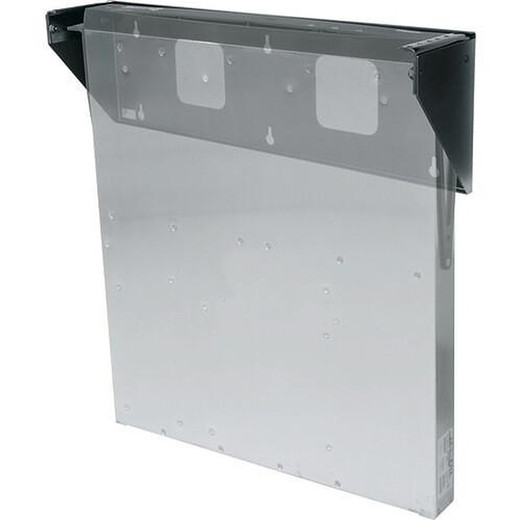

Middle Atlantic VPM-6 6RU Vertical Panel Mount
Overview
The Middle Atlantic VPM-6 is a 6-rack-unit vertical panel mount designed to put standard 19-inch rack equipment on the wall without the footprint of a full enclosure. At 19.25 inches wide and just 6 inches deep, the VPM-6 fits flush where space is tight — AV closets, security head-end rooms, and small IT spaces where a full rack enclosure would be overkill. The 200 lb weight capacity means it handles NVRs, patch panels, and power distribution units without needing supplemental support, making it a practical mounting solution for a compact network video recorder and associated network gear. TAA-compliant and sourced from Mexico, it satisfies federal procurement requirements. The 10-32 threaded rail accepts standard rack hardware throughout the 10.5-inch usable height — no cage nuts required, which simplifies installation.
Compatibility
The VPM-6 accepts any standard EIA 19-inch rack equipment up to 6U in height. Compatible device categories include 1U and 2U NVRs, 1U patch panels, power strips, and AV distribution equipment using 10-32 rack screws. Works with Middle Atlantic rack accessories and panels designed for 10-32 rail systems. Not compatible with square-hole or round-hole (12-24) threaded rail equipment without adapter hardware. Verify that mounted equipment does not exceed the 200 lb aggregate load limit across all 6U.
Installation Notes
Wall mounting requires hardware suitable for the wall substrate — studs or masonry anchors rated for the 200 lb load capacity plus the mount's own weight (10 lbs shipping weight; verify net weight before anchor selection). The 6-inch depth extends equipment 6 inches from the wall surface; confirm clearance for cable management and rear-panel access before mounting. The 10-32 threaded rail eliminates cage nut installation steps, but rack screws are not included — use standard 10-32 rack screws matched to the equipment being installed. Review local building and electrical codes for any requirements specific to wall-mounted rack installations in your jurisdiction. See the full rack mounting accessories category for complementary hardware.
