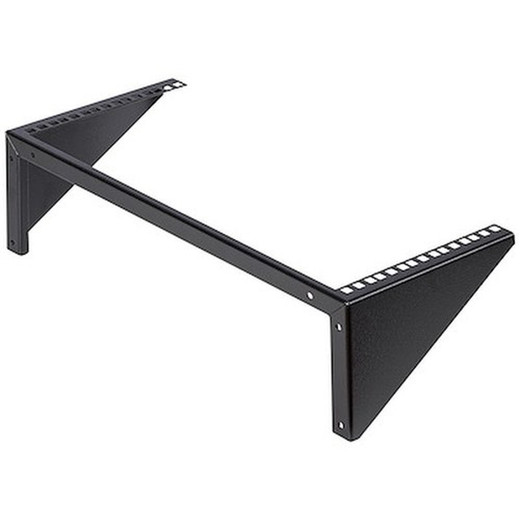

StarTech RK519WALLV 5U Open Frame Wall Mount 2-Post Rack Bracket

Overview

The StarTech RK519WALLV is a 5U open frame, 2-post wall mount rack bracket engineered for installations where floor space is at a premium and a full enclosed cabinet isn't justified. Sized at 19.7 in (L) × 9.3 in (W) × 5.9 in (H) and weighing just 3.0 lb, it installs cleanly on any structural wall surface to support up to 198.4 lb (90 kg) of IT equipment — enough headroom for a typical edge closet or wiring room housing a patch panel, small switch, and a 1U server simultaneously. If you're deploying network switches, patch panels, or compact servers in a branch office, retail back room, or security equipment closet where a full 4-post rack would be overkill, this is the bracket to reach for.

Key Features

• 5U Capacity: Five rack units of usable space in a bracket that sits flush to the wall — enough for a 24-port patch panel plus a PoE switch, without committing floor real estate. Pair this with a rackmount accessory like a blanking panel to keep airflow managed in the remaining space.
• 198.4 lb (90 kg) Weight Capacity: Heavier than most competitors at this form factor. A typical 24-port managed switch runs 4–8 lb; a 1U server can reach 25–35 lb. The 198.4 lb rating gives you genuine flexibility to populate all 5U with production equipment rather than babying the load.
• EIA/ECA-310-E Compliance: The standard 19-inch rack spacing is confirmed by independent EIA/ECA-310-E certification. Any 1U–5U equipment built to this standard will align correctly to the mounting holes — no shimming, no adapters.
• Square-Hole (Cage Nut) Mounting Rails: L-shaped rails with square holes accept standard cage nuts, which means you can use the same M6 cage nut and screw kit already in your parts bin. Threaded-hole racks lock you into a single vendor's hardware; cage nut rails don't.
• 2-Post Open Frame Design: Open frame means full access to cable routing from every side after mounting — critical when you're adding runs post-installation or troubleshooting without pulling equipment. No enclosed cabinet panels to remove.
• Steel Construction, Black Finish: The steel frame handles racking torque and vibration better than aluminum alternatives at this price point. The black finish is consistent with standard equipment room aesthetics and hides minor surface scuffs from cable management work.
• Compact Footprint — 19.7 × 9.3 × 5.9 in: The 9.3 in depth accommodates shallow equipment like patch panels and unmanaged switches. Deeper 1U servers (typically 16–28 in) will require rear support — factor that into your mounting plan before ordering.
• 3.0 lb Bracket Weight: Lightweight enough for a single installer to handle, position, and template on the wall without assistance.
• Lifetime Warranty: StarTech backs the RK519WALLV with a lifetime warranty — a meaningful differentiator for a passive infrastructure component that you're unlikely to ever service once installed.

Integration and Compatibility

The RK519WALLV follows the StarTech rack infrastructure line's standard approach: EIA/ECA-310-E-compliant 19-inch spacing with square-hole cage nut rails means it's compatible with virtually all standard 1U–5U rackmount equipment from any vendor. Confirm your equipment's depth against the 9.3 in (23.5 cm) bracket depth before installing; equipment significantly deeper than the bracket will need a secondary rear support rail or shelf. This bracket does not include cage nuts or mounting screws — use M6 cage nuts with M6 screws, which are available separately as part of standard rack hardware kits. For wall anchoring, use fasteners rated for the wall construction type (concrete anchors for CMU block, structural lag bolts for wood stud) sized to handle the combined 198.4 lb equipment load plus bracket weight. The open frame design is also compatible with standard cable management accessories including horizontal lacing bars and Velcro tie-down strips.

Frequently Asked Questions

Q: What type of mounting holes does the RK519WALLV use?

A: The RK519WALLV uses square holes designed for standard cage nuts (M6). It does not use round threaded holes, so you will need cage nuts and compatible screws — these are not included with the bracket.

Q: What is the maximum weight capacity of the RK519WALLV?

A: The RK519WALLV is rated for up to 198.4 lb (90 kg) of equipment load. This is sufficient for fully populating all 5U with production switches, patch panels, or compact 1U servers.

Q: Will standard 19-inch rackmount equipment fit the RK519WALLV?

A: Yes. The RK519WALLV is EIA/ECA-310-E compliant, which confirms standard 19-inch rack spacing. Any equipment built to this industry standard will mount correctly.

Q: What is the depth of the RK519WALLV, and will deep servers fit?

A: The bracket is 9.3 in (23.5 cm) deep. Shallow equipment like patch panels and unmanaged switches fit without issue. Deep 1U servers (16–28 in) will extend past the bracket and require a rear support solution — the bracket alone is not sufficient for unsupported deep equipment.

Q: What warranty does the RK519WALLV carry?

A: StarTech covers the RK519WALLV with a lifetime warranty.

Q: Does the RK519WALLV include cage nuts and wall anchors?

A: No. Cage nuts, rack screws, and wall anchors are not included. Source M6 cage nuts and screws separately, and select wall anchors appropriate for your specific wall construction type.

Ted Perry

The RK519WALLV is the bracket I reach for when a site has a legitimate 5U equipment load but no floor space and no budget justification for a full wall-mount enclosure. The 198.4 lb capacity is the spec that stands out here — a lot of shallow-depth open frame brackets in this category are rated closer to 55–65 lb, which forces you to think hard about what goes in. At 198.4 lb, you can stop counting ounces and just install the equipment you need.

Technical Highlights:

• 198.4 lb Load Rating: Real headroom for mixed IT loads — a populated 24-port patch panel, a managed PoE switch, and a 1U NVR or server can all coexist without approaching the limit.
• EIA/ECA-310-E Compliance: Confirmed 19-inch spacing means no alignment surprises when you slide in equipment from any vendor. This is the spec that prevents the call-back visit.
• Lifetime Warranty: Passive steel infrastructure with a lifetime warranty is the correct value calculation — you're not paying for an extended service contract on a bracket that has no moving parts and no firmware to update.

Deployment Considerations:

• At 9.3 in (23.5 cm) depth, this bracket is sized for shallow equipment. Verify your switch or server depth before installation — anything over 12 in will overhang and needs rear rail support that this bracket doesn't provide.
• Cage nuts and wall anchors are not in the box. On concrete or CMU walls, allow time for the anchor selection — the 198.4 lb equipment rating means your wall fasteners need to be spec'd accordingly, not just grabbed from the utility drawer.

The RK519WALLV is the right answer for a branch office wiring closet, retail back-of-house network drop, or security equipment room where you're mounting a switch and patch panel and want EIA-compliant, warranted infrastructure without the footprint of a full rack enclosure.
