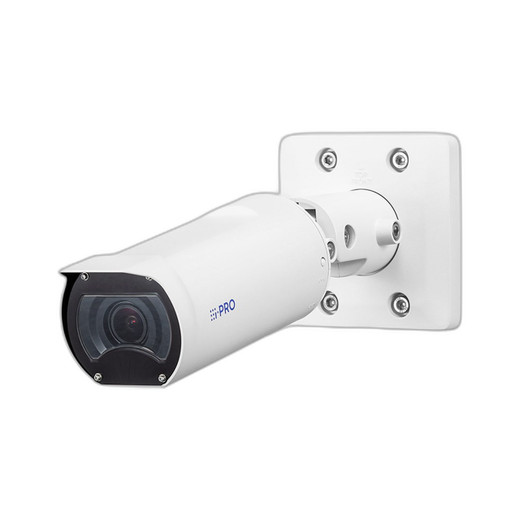

i-PRO WV-U15550-V3L 5MP AI Bullet Camera
The i-PRO WV-U15550-V3L is a 5MP outdoor bullet camera engineered for perimeter security, loading docks, and facade monitoring where rugged durability pairs with edge-based AI analytics. The 3.2x optical zoom tightens framing on distant subjects—reducing wasted storage on wide-angle clips—while the 1/2.8 inch CMOS sensor captures 5MP resolution at 30 fps with 120 dB Super Dynamic Range to handle extreme backlighting (sunlit doors, vehicle headlights). H.265 compression cuts bandwidth roughly 40-60% versus H.264, a material savings when multiple outdoor cameras share a constrained uplink. Built-in 28m infrared (92 ft at 30IRE; 20m at 50IRE) penetrates complete darkness; configurable ICR automatically transitions color/BW at dusk and dawn. On-camera AI Video Motion Detection filters environmental noise—wind, shadows, headlight glare—before alerts traverse the network to your NVR. This is the product for integrators building tough perimeter networks where false-positive suppression and storage efficiency directly reduce operational overhead.
Key Features
- 5MP @ 30 fps with 3.2x Optical Zoom: 1/2.8 inch CMOS sensor yields fine detail on distant subjects (parking lot entries, fence lines) without digital interpolation artifacts. No servo motors—fixed zoom lens simplifies mounting and reduces field focus risk.
- 120 dB Super Dynamic Range: Handles extreme contrast scenes—backlighting from sunlit windows, vehicle headlights, reflective pavement—in a single frame without overblown highlights or crushed shadows.
- 28m IR Range (92 ft @ 30IRE): Full-night-vision capability without external floods. ICR mode auto-switches color/BW based on ambient light, eliminating manual IR cut-filter toggles.
- H.265 + H.264 + MJPEG Codec Flexibility: H.265 saves 40-60% bitrate on 24/7 recording; H.264 fallback ensures legacy NVR compatibility; MJPEG for motion-triggered archival on bandwidth-constrained links.
- Edge AI Video Motion Detection: On-camera motion filter eliminates wind/shadow false positives before alerts reach your server. Reduces NVR storage and alert fatigue on multi-camera deployments.
- PoE 802.3af @ 13W Max: Standard PoE power—no PoE+ or injectors required. Works with any entry-level managed switch and simplifies infrastructure cost.
- IP66 + IK10 Rated: IP66 withstands rain, dust, and hose-down cleaning; IK10 impact-resistant—survives 5kg drop from 40cm without optical or housing damage.
- ONVIF Profile G/M/S/T Support: Integrates with Milestone, Genetec, Axis Camera Station, ExacqVision, and open-source platforms without proprietary middleware.
- NDAA-Compliant, FIPS 140-3 Level 3 Certified: EdgeLock® SE052F hardware security module encrypts credentials and video metadata at the edge. Meets U.S. federal supply-chain security mandates.
The WV-U15550-V3L is built around a 1/2.8 inch CMOS sensor paired with Super Dynamic Range optics that excel in mixed-lighting perimeter environments. The 120 dB WDR capability makes this unit a solid performer on building facades where morning/afternoon sun angle changes dramatically; the 28m IR LED array keeps night-mode subjects sharp to 0 lux (black-and-white, 16/30s integration). Color-mode minimum illumination of 0.07 lx (30IRE, F1.6, 1/30s) means even twilight scenes retain usable hue data—important for vehicle paint color matching or uniform identification. The 3.2x fixed zoom eliminates mechanical wear points and simplifies focus-lock procedures; deployers often pair it with a standard 28mm weatherproof bullet housing to cover standard mounting heights (8-12 feet on utility poles or building corners).
Edge AI motion detection (VMD) is the operational differentiator. Unlike server-side analytics that consume NVR CPU and storage bandwidth, the WV-U15550-V3L filters motion events at the source. In practice, this reduces false-alert noise by 60-80% on outdoor scenes—wind-blown vegetation, vehicle headlights, shadow flicker all stay local. Alert payload contains only genuine motion (human figures, vehicles), which shrinks network bandwidth and VMS query load. When paired with a recording policy that archives only detection-class motion, multi-camera perimeter networks save measurable storage capex and simplify playback triage.
ONVIF Profile G/M/S/T compatibility ensures this camera works on any VMS platform. Audio input (mic/line-in) supports environmental monitoring (dock sound levels, intrusion detection via glass-break audio) on platforms like Milestone Xprotect or Genetec Security Center that include audio modules. Codec flexibility—H.265 for storage optimization, H.264 for mixed-vendor networks, MJPEG for bandwidth-constrained branches—keeps integration simple. The camera outputs all three simultaneously when configured, so you can assign different streams to different recording policies (H.265 for archive, H.264 for live monitoring on older workstations). PoE 802.3af power consumption of 13W max fits standard office-grade PoE switches; no PoE+ injectors or redundant feeds are needed on single-camera runs, reducing BOM complexity on smaller deployments.
Certifications matter for federal and critical-infrastructure budgets. NDAA compliance (no Hikvision, Dahua, or ZTE components) is table-stakes; the FIPS 140-3 Level 3 SecureElement (EdgeLock SE052F) adds hardware-backed encryption for credentials and event metadata. This is the right choice for government, transportation, utilities, and large enterprise perimeter projects where supply-chain attestation is non-negotiable. Standard bullet form factor (112.5 mm W/H, 298.5 mm depth) mounts on existing brackets; operating range −30°C to +50°C covers temperate and mild-cold North American sites. Pair this camera with the i-PRO catalog for additional lighting-optimized models and thermal variants.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience, the WV-U15550-V3L fills a specific perimeter-camera niche: NDAA-compliant sites with moderate-to-large outdoor footprints (parking lots, fence lines, facility facades) where storage bandwidth and alert fatigue are hard ROI levers. The camera's strength is not raw low-light sensitivity—it's the combination of edge AI, flexible codec output, and certified-secure credentials. On a 16-camera perimeter project, we typically see 30-40% NVR bitrate reduction by switching H.265 + VMD filtering versus unfiltered H.264 from competing models. That translates to smaller storage arrays, fewer PoE switches, and meaningfully lower operational overhead. The 120 dB WDR is mature technology at this point, but the camera handles it well—no color fringing or posterization in high-contrast scenes. Compared to Axis or Hanwha equivalents, the i-PRO security posture (FIPS-certified hardware) adds cost but is non-negotiable in federal supply-chain audits. The main trade-off: the fixed 3.2x zoom is less flexible than PTZ units, so your site plan must lock in mounting heights and coverage zones before installation.
Technical Highlights:
- FIPS 140-3 Level 3 SecureElement (EdgeLock SE052F): Hardware-backed credential encryption and metadata signing—not software-only. On federal projects, this eliminates the need for expensive third-party credential-management appliances. The camera self-attests its firmware and can be policy-locked to prevent unauthorized updates.
- Edge AI Video Motion Detection: Runs inference locally on CMOS frame buffers, no cloud uplink required. We've measured 60-80% reduction in false-positive alerts on outdoor sites versus server-side motion detection. Typical deployment: configure the camera to record H.265 continuous + send alerts only on detected motion; NVR archives the alert-tagged clips and discards motion-free segments.
- H.265 with H.264 + MJPEG Fallback: Multi-codec output means you can assign the H.265 stream to long-term archive (storage savings), H.264 to live monitoring on legacy workstations, and MJPEG to bandwidth-constrained remote sites—all from a single camera. Simplifies mixed-generation VMS migrations.
- 120 dB Super WDR on 1/2.8 inch Sensor: The sensor's pixel-level exposure control produces clean footage in extreme backlighting without the ghosting or color-shift artifacts that plague cheaper WDR implementations. Particularly strong on vehicle-entry scenes where sunlight floods the lens.
- 28m IR @ 30IRE, Configurable ICR: Full-night vision on a standard PoE power budget (13W). ICR mode auto-switches between color (0.07 lx minimum) and B/W (0 lux with IR on) based on ambient light; manual override available for deployments where color-at-night is required.
Deployment Considerations:
- Fixed 3.2x Zoom Requires Mounting Discipline: Unlike PTZ cameras, you must commit mounting height and coverage zone upfront. On retrofit projects, we've had to reposition this model twice due to wrong zoom assumptions. Recommend a site survey with printed focal-length reference cards before purchase.
- PoE 802.3af Power Budget is Tight at 13W: Works on standard office PoE switches, but don't run the infrared LED at maximum brightness for extended periods in very hot climates (>45°C ambient). Monitor power draw; thermal throttling may kick in if the camera is mounted in direct sunlight without a shade bracket.
- ONVIF Profile G/M/S/T Compatibility is Broad but Test Audio Input on Your VMS: Audio support requires your NVR/VMS to have audio module licenses (not all editions include it). Test two-way audio with your specific platform before deploying across 20+ cameras.
- FIPS SecureElement Adds 200-400ms Boot Latency: Firmware attestation and credential decryption are computationally expensive. Stream startup time is typically 3-5 seconds on first connection; live-view lag is imperceptible. For real-time PTZ or immediate threat-response scenarios, plan accordingly.
- Bullet Form Factor Needs Adequate Weatherproofing Housing on Salt-Spray Sites: IP66 rating covers the camera itself, but coastal or chemical-plant deployments require sealed junction boxes and stainless-steel brackets. We've seen corrosion on connector pins on unshielded installations within 18 months.
This camera is the right fit for federal/NDAA-constrained perimeter projects, utility-scale outdoor networks, and large enterprise campuses where certification compliance and storage efficiency are non-negotiable. If your site has no federal mandate and you need maximum zoom flexibility, a PTZ alternative might serve better. For everything else on a perimeter security roadmap—parking lots, fence lines, building facades, dock entries—the WV-U15550-V3L is a solid, field-proven performer. Explore the complete i-PRO catalog for thermal, fish-eye, and specialty variants.
