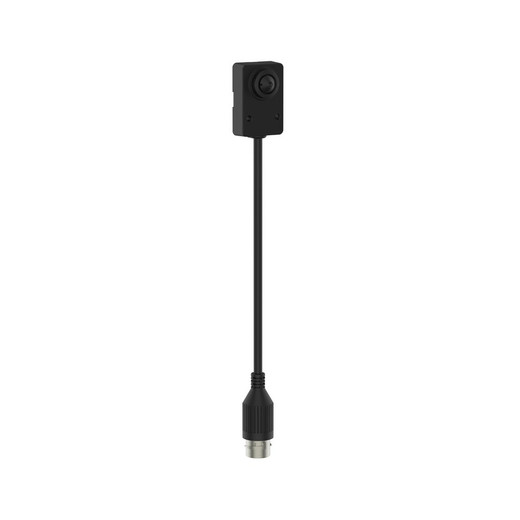

Hanwha SLA-F4780VA 5MP Fixed Lens Module

Hanwha SLA-F4780VA 5MP Fixed Lens Module

The Hanwha SLA-F4780VA is a 5MP fixed lens module engineered for seamless integration with the PNM-C20000QB remote head camera system. This compact cube-type pinhole lens delivers professional-grade imaging in a form factor designed for discreet installation in security-critical environments.

Key Features

• 5MP resolution with 1/2.8" CMOS sensor for sharp detail capture
• 4.72mm fixed focal length with F2.07 maximum aperture
• 70° horizontal field of view (50° vertical, 96° diagonal)
• Compact cube design: 30×20.5×45mm body dimensions
• RJ12 connection with fixed focus control
• Includes 8-meter lens cable for flexible camera positioning

Technical Specifications

• Sensor: 1/2.8" CMOS, 5MP resolution
• Optical Performance: 4.72mm focal length, F2.07 aperture, 70° horizontal FOV
• Low-Light Capability: 0.09 lux minimum illumination (color and B/W at 1/30sec, 30 IRE)
• Operating Temperature: -10°C to +55°C
• Interface: RJ12 connection with fixed focus
• Cable Length: 8 meters (26.2 feet)

Applications

Ideal for covert surveillance, retail monitoring, and access control installations where a compact, high-resolution lens module is required. The SLA-F4780VA integrates directly into Hanwha remote head camera systems, making it suitable for concealed mounting in confined spaces while maintaining 5MP image quality and low-light performance.
