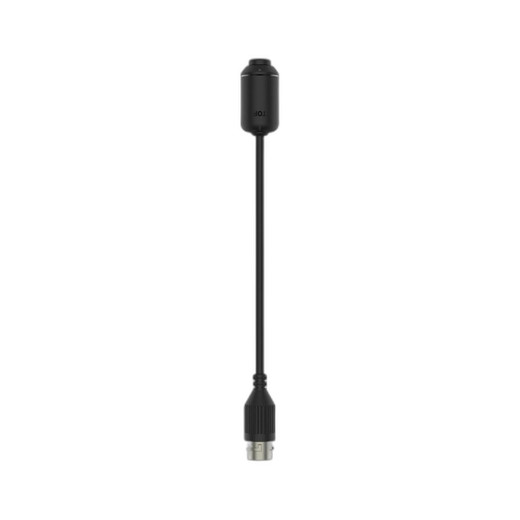

Hanwha SLA-F2480A 5MP Fixed Lens Module
The Hanwha SLA-F2480A is a 5MP fixed lens accessory designed for seamless integration with the PNM-C20000QB remote head. This compact straight-body lens module delivers exceptional wide-angle coverage with a 2.45mm focal length, making it ideal for surveillance applications requiring extended field of view and reliable performance in low-light conditions.
Key Features
- 5MP resolution with 1/2.8" CMOS imaging sensor
- 2.45mm fixed focal length with F2.0 maximum aperture
- 122° horizontal, 90° vertical, 158° diagonal field of view
- 0.08 lux minimum illumination for day/night imaging
- Compact 24mm diameter × 46.6mm length cylindrical design
- 8-meter lens cable included for flexible installation
- Fixed focus mount with RJ12 connection
- Operating temperature range: -10°C to +55°C
- 0–95% RH humidity rating for demanding environments
Technical Specifications
This lens module excels in indoor surveillance deployments where extended coverage and low-light sensitivity are critical. The 122° horizontal field of view ensures comprehensive monitoring of large areas, while the F2.0 aperture and 0.08 lux performance deliver clear imagery in dimly lit spaces without auxiliary lighting. The fixed focus design eliminates maintenance concerns, and the lightweight construction (35g) simplifies installation on remote head systems.
Compliance & Durability
The SLA-F2480A meets stringent international standards including FCC 47 CFR 15 Subpart B Class A, CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2/3-3, and UL 62368-1 safety certifications. Its sealed black plastic body withstands humidity up to 95% RH and extended temperature ranges typical of industrial and commercial environments.
Ideal Applications
- Indoor retail and commercial surveillance
- Low-light facility monitoring
- Wide-angle panoramic coverage systems
- Integrated remote head installations
