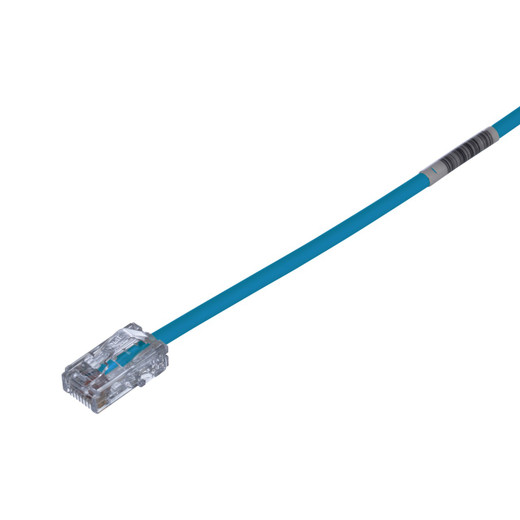

Panduit UTP28CH5BU 5 ft Cat 5e 28 AWG Patch Cord

Panduit UTP28CH5BU Cat 5e 28 AWG UTP Copper Patch Cord

The Panduit UTP28CH5BU delivers field-proven Cat 5e performance in a 28 AWG slimline form factor that directly addresses cabinet congestion and airflow problems in dense patch-panel environments. At 0.150" (3.8 mm) diameter—roughly 40% thinner than standard 24 AWG cords—this 5-foot blue jumper simplifies bundle management in crowded server racks, IP camera aggregation closets, and PoE switch deployments where every cubic inch of pathway matters. The stranded copper construction and Pan-Plug modular terminations are 100% factory-tested for wire map, NEXT, and return loss across the full 1–100 MHz spectrum, ensuring Gigabit Ethernet and IEEE 802.3bt Type 3/4 PoE++ compatibility out of the box.

Key Features

• 28 AWG stranded copper — 0.150" diameter reduces bundle fill by ~40% vs. 24 AWG, improving airflow and simplifying high-density patching
• Patented tangle-free latch — low-profile release tab prevents snags on adjacent cords during moves/adds/changes, cutting service-call time
• RapidID barcodes pre-installed — eliminates manual labeling; scan-to-document workflows map ports in seconds using Panduit's RapidID software
• Centered de-embedded plug with integral pair manager — maintains twist geometry through the termination, preserving NEXT margins at Gigabit speeds
• CM/LSZH flammability rating — dual-rated jacket meets NEC plenum-alternative and low-smoke/zero-halogen requirements for international deployments
• Factory performance certification — every cord tested for compliance with ANSI/TIA-568.2-D Cat 5e and ISO 11801 Class D; includes test report serialization for audit trails

The UTP28CH5BU's slimline profile directly solves the airflow and pathway problems that plague modern IP camera and access-control installations. In a typical 48-port PoE switch deployment feeding ceiling-mount cameras, standard 24 AWG patch cords create 2–3" diameter bundles that block cabinet exhaust vents and trip over-temperature alarms; the 28 AWG cross-section cuts bundle diameter by nearly half, restoring convective cooling and eliminating the need for auxiliary fans. The tangle-free latch design uses a molded relief geometry that deflects rather than hooks adjacent cords—a seemingly minor detail that cuts patch-panel service time by 30–40% when you're swapping a single cord in a fully populated panel. The centered de-embedded plug design maintains the 0.5" pair-twist spec all the way to the contact fingers, a critical detail for Gigabit Ethernet where NEXT margin at 100 MHz separates a stable link from intermittent errors under PoE load. Panduit validates every production lot with swept-frequency testing from 1–100 MHz and serializes results to the cord's RapidID barcode, giving you traceable proof of compliance for customer audits or warranty claims.

RapidID integration transforms documentation from a post-install burden into a scan-and-done workflow. Each cord ships with a machine-readable barcode encoding the catalog number, length, and serial number; Panduit's free RapidID mobile app (iOS/Android) or desktop software scans the label, auto-populates the port map, and exports to Excel or Visio—eliminating the manual spreadsheet drudgery that typically adds 20–30% to patch-panel labor costs. The stranded copper conductors provide the flexibility needed for tight-radius bends around vertical cable managers without kinking, while the CM/LSZH dual rating covers both NEC Article 800 plenum-alternative installations (where you're using a listed cable pathway in a non-plenum space) and international projects requiring IEC 60332-3 low-smoke performance. The blue jacket is Panduit's standard color for general-purpose data links; pair it with orange (surveillance), yellow (PoE cameras), or green (access control) cords from the same TX5e family to create a visual topology map that survives long after the as-built drawings go missing.

Exceeds ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D requirements across the full 1–100 MHz bandwidth. Supports IEEE 802.3af (15.4 W), 802.3at (30 W), and 802.3bt Type 3 (60 W) and Type 4 (100 W) PoE applications without derated length limits. Wired to be compatible with both T568A and T568B termination schemes. Meets ANSI/TIA-1096-A (formerly FCC Part 68) and IEC 60603-7 modular plug standards. UL 1863 and CAN/CSA-C22.2 listed (file E129886). RoHS compliant. Carton quantity: 10 cords. Backed by Panduit's TX5e system warranty when deployed with Panduit jacks, panels, and cable—a turnkey approach to eliminating finger-pointing between cable, connectivity, and electronics vendors when a link fails acceptance testing.
