Panduit UTP28SP4YL Cat 6 28 AWG 4 ft Patch Cord

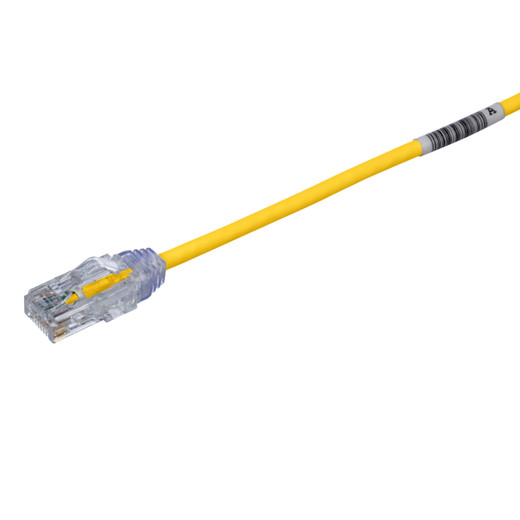

Panduit UTP28SP4YL Cat 6 28 AWG UTP Patch Cord

The Panduit TX6-28™ UTP28SP4YL is a 4-foot Category 6 UTP patch cord engineered for high-density network environments where space and cable management are critical. Built with 28 AWG stranded copper conductors, this yellow patch cord delivers a compact 0.150-inch (3.8 mm) diameter—up to 40% smaller than standard 24 AWG cables—allowing tighter bend radii and easier routing in crowded patch panels, server racks, and telecom closets. It supports 10GBASE-T Ethernet over limited distances, Gigabit Ethernet, and IEEE 802.3bt PoE++ (Type 3 and Type 4) for applications requiring up to 100W of power delivery, making it suitable for high-power access points, PTZ cameras, and VoIP systems.

Key Features

• 28 AWG stranded copper construction for 0.150" (3.8 mm) diameter—40% smaller than 24 AWG for improved airflow and cable management
• Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards, 1–250 MHz performance tested
• Patented tangle-free latch design prevents snags during installation and enables fast, tool-free release
• RapidID pre-installed barcodes for automated port mapping and documentation using RapidID software
• Supports IEEE 802.3bt PoE++ Type 3 (60W) and Type 4 (100W) for high-power endpoint devices
• CM/LSZH dual-rated jacket meets both plenum-equivalent and low-smoke zero-halogen fire safety requirements
• Compatible with T568A and T568B wiring schemes, RoHS compliant

In high-density data center and IDF deployments, cable congestion directly impacts airflow, serviceability, and troubleshooting speed. The UTP28SP4YL's 28 AWG stranded construction reduces bundle diameter by up to 40% compared to standard 24 AWG patch cords, allowing integrators to pack more connections into the same horizontal or vertical cable manager without exceeding fill ratios or blocking airflow. The centered de-embedded plug design and integral pair manager maintain consistent Category 6 performance across the full 250 MHz frequency range, with 100% factory testing for wire map, NEXT, and return loss. The tangle-free latch uses a low-profile design that prevents the release tab from catching on adjacent cables during moves, adds, and changes—a common issue in dense 48-port switch environments where cables are routed at acute angles.

RapidID integration accelerates documentation workflows for network teams managing hundreds or thousands of ports. Each patch cord ships with a pre-installed barcode on the boot, allowing technicians to scan connections with a mobile device running Panduit's RapidID software. The software automatically maps physical port locations to logical network addresses, eliminating manual spreadsheet entry and reducing documentation errors during initial deployments or MAC cycles. For PoE-intensive environments—such as IP surveillance networks with PTZ cameras, Wi-Fi 6E access points, or VoIP systems—the UTP28SP4YL meets IEEE 802.3bt Type 3 and Type 4 power delivery requirements, handling up to 100W per port without conductor overheating or voltage drop issues over the 4-foot run.

The CM/LSZH dual-rating provides installation flexibility across commercial and international projects. The cable meets UL 1863 and CAN/CSA-C22.2 flammability standards for communications cable (CM rating) suitable for horizontal runs in commercial buildings, while the LSZH (low-smoke zero-halogen) jacket complies with IEC 60332 and IEC 61034 for installations in enclosed spaces—telecom closets, underfloor pathways, or international projects where halogen-free materials are mandated. Pan-Net modular plugs feature gold-plated contacts for long-term reliability and are manufactured to exceed ANSI/TIA-1096-A (formerly FCC Part 68) and IEC 60603-7 mechanical and electrical specifications. Ships in cartons of 10, with each cord individually bagged for clean handling during installation.
