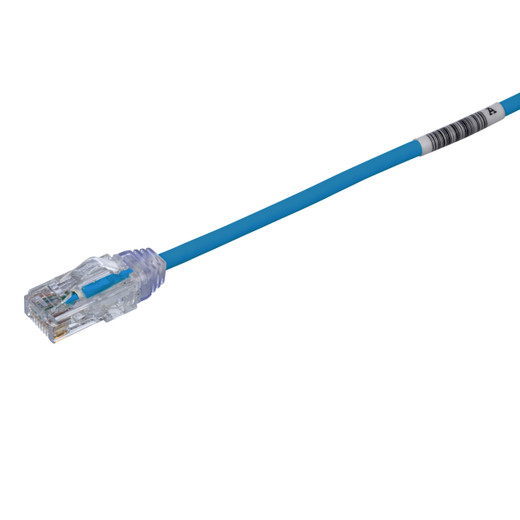

Panduit UTP28SP4BU Cat 6 28 AWG 4 ft Patch Cord

Panduit UTP28SP4BU Cat 6 28 AWG Patch Cord

The Panduit UTP28SP4BU delivers full Cat 6 performance in a slimmer 28 AWG profile that solves real rack and cabinet congestion problems. At 0.150" diameter—40% thinner than standard 24 AWG patch cords—this 4-foot cable reduces pathway fill by nearly half while meeting every ANSI/TIA-568.2-D Category 6 requirement from 1 to 250 MHz. The stranded copper construction handles repeated flexing in high-density switch environments where fat cables choke airflow and block access to rear ports. Installers managing 48-port switches in 19" racks gain immediate cable-management headroom: twenty-four 28 AWG cables occupy the same bundle diameter as fifteen legacy 24 AWG cords, freeing vertical managers and improving cooling efficiency in enclosed cabinets.

Key Features

• 28 AWG stranded copper construction—0.150" (3.8 mm) diameter reduces pathway congestion by 40% vs. standard Cat 6 patch cords
• Patented tangle-free latch design prevents snags during MACs and ensures fast, one-handed connector release in dense bundles
• Pre-installed RapidID barcodes enable automated port mapping and documentation via Panduit RapidID software
• Centered de-embedded plug with integral pair manager maintains geometry through the termination, preserving NEXT margins
• CM/LSZH dual-rated jacket meets NEC plenum alternatives and low-smoke requirements for international projects
• 100% factory tested for wire map, NEXT, and return loss—every cord ships with verified performance to 250 MHz
• Supports IEEE 802.3bt Type 3 and Type 4 PoE (up to 90W) for high-power devices without voltage drop concerns

The UTP28SP4BU uses Panduit's TX6-28™ modular plug platform, engineered specifically for 28 AWG conductor geometry. Standard RJ45 plugs designed for 24 AWG cable create inconsistent pair spacing when crimped onto thinner wire—this plug's integral pair manager holds all four pairs in the correct position through the termination zone, preventing crossed pairs and maintaining the 100-ohm impedance required for 10GBASE-T signaling. The centered de-embedded contact design pushes the electrical reference plane forward into the plug body, compensating for the impedance discontinuity at the wire-to-contact interface. Result: NEXT performance 6 dB better than the Cat 6 limit at 250 MHz, with enough margin to support 10 Gigabit Ethernet runs up to the distances specified in IEEE 802.3an (37–55 meters depending on alien crosstalk environment). Every cord ships with test data showing wire map continuity, near-end crosstalk, and return loss measured on calibrated Fluke or Ideal Networks analyzers—you're buying certified performance, not a gamble.

The patented tangle-free latch solves the cable-pulling nightmare every datacenter tech knows: standard snagless boots catch on adjacent cables during extraction, forcing you to disconnect three neighbors to pull one cord. Panduit's design uses a low-profile lever that sits flush with the plug body when released but lifts cleanly when pressed—no protruding edges to hook bundle ties or neighboring jacks. In a live 48-port switch stack with full population, you can pull any port without disturbing the rest. The latch also survives 750+ insertion cycles per TIA-1096-A durability testing, outlasting cheaper boots that crack after fifty plug/unplug events. For shops running continuous MAC operations—think hospitality networks with daily room reconfigurations or campus IT handling student moves—this durability translates to lower cord replacement costs and fewer service calls from broken latches jamming in the jack.

RapidID barcode integration addresses the documentation gap that kills troubleshooting speed in large installs. Each cord ships with a machine-readable label encoding the Panduit part number and a unique serial identifier. Scan the cord during installation with the RapidID mobile app, tap the switch port, and the software auto-populates your port map with location, cable type, length, and installation date. Six months later when a user reports a dead port, your tech pulls up the map, sees "Panduit UTP28SP4BU installed 2026-11-03 by J. Smith," and knows immediately whether to suspect the cord, the switch, or the wall jack—no tone-and-probe guesswork. The system also flags cords approaching the 5-year replacement cycle recommended for stranded patch cables in high-flex environments, letting you schedule preemptive swaps before failures cause downtime. For integrators billing maintenance contracts, this data-driven approach justifies proactive service visits and reduces emergency truck rolls.

The 4-foot length hits the sweet spot for top-of-rack switching: long enough to route from a rack-top switch down to a patch panel at mid-rack height with service loop, short enough to avoid the spaghetti mess created by 7-foot cords in 42U cabinets. The CM/LSZH jacket rating provides install flexibility—the CM (Communications) NEC rating allows use in general building spaces and raised-floor datacenters, while the LSZH (Low Smoke Zero Halogen) certification meets the IEC 60332-1 and IEC 61034 smoke/toxicity limits required in offshore projects, transportation hubs, and European Union installations where PVC combustion products are regulated. The blue jacket follows the TIA-606-B administration standard for horizontal cabling, helping techs visually distinguish patch-panel-to-switch cables from cross-connects or equipment cords in multi-color documentation schemes. The cord ships in 10-piece cartons, balancing order efficiency with storage footprint—a full 48-port switch kit requires five cartons, fitting neatly on a standard parts shelf.
