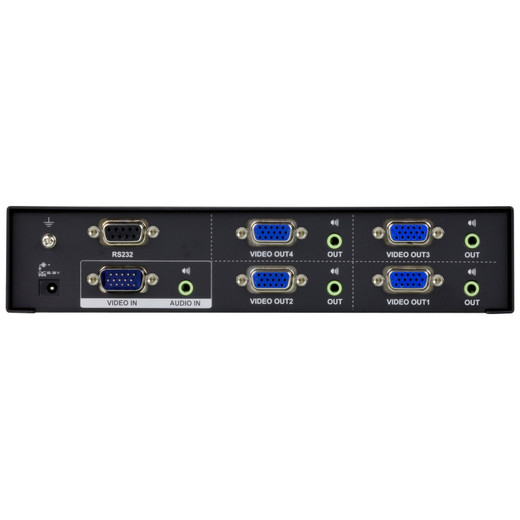

ATEN VS0104 4-Port VGA Video Switch with RS-232 Control
Overview
The ATEN VS0104 is a 4-port VGA video switch designed for AV installations and control rooms that need to distribute a single VGA video source to up to four displays simultaneously — without relying on software-based switching or dedicated PC management. With a DB-9 RS-232 serial port built in, the VS0104 integrates directly into KVM and AV switch control systems, room automation controllers, and matrix management platforms that communicate over serial. If your deployment uses a Crestron, AMX, or similar control system, the RS-232 port is how you automate source selection without touching the unit manually.
The VS0104 carries a 75 Ω impedance rating matched to standard VGA signal paths, and supports cable runs up to 1.8 m on its output side — sized for rackmount AV distribution where displays or downstream extenders are in close proximity. EDID management is handled through three selectable modes (Port 1, Auto, and Default), which matters in multi-display environments where mismatched EDID data is a routine cause of resolution handshake failures at boot.
Key Features
- RS-232 Serial Control (DB-9 Female): The single DB-9 Female RS-232 port lets room automation controllers and serial-capable AV management systems switch outputs programmatically. This eliminates the need for manual front-panel interaction in rack-mounted or concealed-install scenarios — a real time-saver during commissioning and day-to-day operation.
- Four Mini Stereo Audio Outputs (3.5mm Green): Each of the four output channels includes a dedicated 3.5mm Mini Stereo Jack (Female, Green), so audio follows video to all four destinations without a separate audio distribution amp for standard stereo signals. Useful in multi-zone AV setups where each display zone also needs audio.
- 75 Ω Impedance: Matched to the VGA signal standard, the 75 Ω impedance ensures signal integrity across the output path. Impedance mismatches in VGA chains are a common source of ghosting and signal degradation — this keeps the electrical path clean without external termination adapters.
- EDID Mode Selection — Port 1 / Auto / Default: Three EDID modes give you control over how the switch reports display capabilities to the source. Port 1 mode passes through the EDID from the first connected display; Auto selects based on connected displays dynamically; Default uses a built-in fallback EDID. In multi-display environments where monitors have different native resolutions, selecting the right EDID mode at setup prevents the source from negotiating a resolution incompatible with one or more outputs.
- 1.8 m Maximum Output Distance: The 1.8 m spec applies to the output cable runs on this unit. Plan your rack layout accordingly — this switch is designed to sit close to its downstream displays or extenders, not as a long-haul distribution point. For longer cable runs, pair it with a VGA signal extender downstream.
- 0–80% RH Non-Condensing Humidity Rating: Rated for standard climate-controlled indoor environments. The non-condensing qualifier means it handles typical HVAC-maintained server rooms and AV equipment closets without issue, but it is not suited for uncontrolled humidity environments or outdoor enclosures.
- DC Jack Power Input: Powered via a single DC Jack, keeping the installation clean and avoiding the need for IEC power connections in tight rack configurations. Verify the included power supply voltage before substituting a third-party adapter.
- Rackmount Form Factor: The VS0104 is designed for rack deployment — appropriate for AV head-end racks, control room equipment bays, and centralized distribution frames where density and cable management matter. Check the ATEN ATEN AV and KVM product line for compatible rack accessories.
Integration and Compatibility
The VS0104 fits into any AV distribution architecture where the source outputs VGA. The RS-232 control port is the key integration point: verify your control processor or automation system supports the ATEN command protocol for the VS0104 before finalizing the control system design. The three EDID modes are particularly important in mixed-display environments — take the time to identify the lowest common native resolution across all four connected displays and select the EDID mode that negotiates to that target. Mismatched EDID remains the most common setup issue in multi-output VGA distribution.
For installations requiring signal distribution over longer distances, the VS0104's 1.8 m output spec means you'll need downstream VGA extenders to reach displays more than a few feet from the rack. Pair with video extender hardware to push signal to remote displays without signal loss. For larger matrix switching requirements, review the broader AV video switch catalog for higher port-count options.
Frequently Asked Questions
Q: How does the VS0104 handle displays with different native resolutions?
A: The VS0104 offers three EDID modes — Port 1, Auto, and Default — to control how the source negotiates resolution. In mixed-resolution environments, selecting the Default EDID mode forces a known-good resolution that all connected displays can handle, preventing resolution handshake failures on lower-resolution outputs.
Q: Can the VS0104 be controlled remotely without physically accessing the unit?
A: Yes. The VS0104 includes a DB-9 Female RS-232 serial port for remote serial control, allowing integration with room automation controllers (such as Crestron or AMX systems) that can send switch commands over serial without manual front-panel access.
Q: What is the maximum cable run on the VS0104 outputs?
A: The VS0104 is rated for output cable runs up to 1.8 m. For longer distances, a VGA signal extender should be placed downstream of the switch's output ports.
Q: Does the VS0104 distribute audio as well as video?
A: Yes. Each of the four output channels includes a 3.5mm Mini Stereo Jack (Female, Green) for stereo audio distribution, so audio accompanies video to all four output destinations.
Q: What environments is the VS0104 rated for?
A: The VS0104 is rated for 0–80% relative humidity, non-condensing — suitable for climate-controlled indoor environments such as server rooms, AV equipment closets, and control rooms. It is not rated for outdoor or high-humidity uncontrolled environments.
Q: What EDID mode should I use if I do not know my displays' EDID data?
A: Use the Default EDID mode as a safe starting point. It applies a built-in fallback EDID that the source can reliably negotiate against, avoiding resolution mismatches when the connected displays have not yet been profiled.
The VS0104 is a straightforward 4-port VGA distribution switch, but the detail that drives most of my recommendations here is the RS-232 DB-9 serial control port — in a rack-mounted AV environment, that single port is what separates a unit you manage manually from one that integrates cleanly into a Crestron or AMX control system and gets switched automatically on room events. If you're building a control room or AV head-end where operators should never have to touch the distribution hardware, the VS0104's serial interface is the right tool for that job.
Technical Highlights:
- RS-232 DB-9 Female Port: Serial control over switching from any automation controller that supports ATEN's command set — eliminates manual intervention in automated AV environments.
- Three EDID Modes (Port 1 / Auto / Default): Directly addresses the most common multi-display VGA setup failure — EDID negotiation mismatch. Default mode is your safe fallback during initial commissioning before you've confirmed all display EDID profiles.
- 75 Ω Impedance, 1.8 m Output Distance: Spec'd to VGA signal standard for clean signal integrity on short rack-to-display runs. The 1.8 m limit is a layout constraint — position this switch within arm's reach of outputs or budget for extenders.
Deployment Considerations:
- Confirm your control processor supports ATEN's RS-232 command protocol for the VS0104 before finalizing the control system design — not all automation platforms have a pre-built driver for this unit.
- The 1.8 m output cable distance is a hard planning constraint. In a rack where displays are more than a few feet away, you will need VGA extenders on the output side — account for this in your cable schedule and budget before installation.
The VS0104 is a clean fit for fixed AV installations in corporate boardrooms, training facilities, and security monitoring stations where a single VGA source needs to feed multiple displays and the room control system handles switching automatically via RS-232 — not a general-purpose switcher for ad-hoc environments, but exactly right for structured, automated AV deployments.
