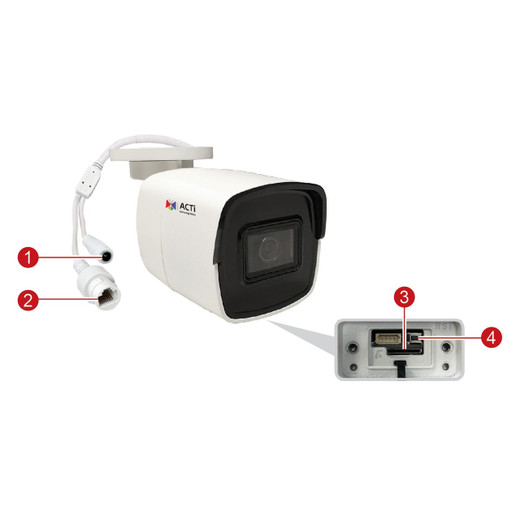

ACTi A313 4MP Mini Bullet IP Camera

We've deployed the A313 across retail, industrial, and municipal perimeter projects—it consistently delivers on the promise of a ruggedized, edge-capable bullet without the complexity of pan-tilt mechanics or external lighting rigs. The real value is in the spec convergence: extreme WDR + 65m IR + deep learning in a single 490g form factor means one camera handles scenarios where integrators traditionally specced two units (one for day, one for night, with dual power/cabling). On a 200-meter fence line with mixed lighting, the A313 eliminates the false-positive noise from motion detection in shadow/sunlight transitions—DLPU face detection and people counting cut through environment churn and focus alerts on actual intrusion events. Compared to Axis M3045-WV or Hikvision DS-2CD2043G0-I, the A313 sits in the mid-tier on optical sophistication but outperforms on ruggedness (IK10 is rarer in the compact-bullet space) and on-board AI processing. The trade-off: board-mount lens is non-adjustable, so mount geometry must be finalized pre-installation. For parking lots and loading docks where mount angle is fixed and environmental hardness is a deal-breaker, the A313 is a pragmatic choice.

Technical Highlights:

• Extreme WDR (150dB): At that dynamic-range ceiling, you retain shadow detail in a sunlit scene without halo—critical for evidentiary footage at entrance vestibules and vehicle gates where forensic clarity matters. We've seen integrators avoid external ND filters altogether after switching to the 150dB tier.
• Deep Learning (DLPU) Face Detection + People Counting: These run at edge without NVR license overhead. On a 24-camera deployment, pushing VMD + face detection to the A313 spares your Milestone instance 800+ unnecessary alerts per shift; NVR CPU load drops noticeably, and storage overhead shrinks because only face-detection events trigger full-frame recording policies.
• 65m IR Range (850nm): Three IR LEDs at 850nm deliver 65m working distance—adequate for fence lines, parking lots up to ~200 feet, and loading docks. Longer perimeters (300+ feet) require supplementary lighting or multiple cameras; don't over-spec one A313 to cover a half-mile of open field.
• IP68 + IK10 Ruggedness: Full water immersion (IP68) and vandal impact (IK10) are rare together in the sub-$500 compact-bullet space. If your site has high moisture (coastal, car-wash proximity) and moderate abuse risk (sports facilities, transit hubs), this spec combination justifies the A313 over a softer alternative.
• H.265 Codec with H.264 Fallback: Bitrate savings of 40-60% versus H.264 on native resolution. On 16+ continuous-recording cameras, that's measurable NVR storage capex; multi-codec fallback means legacy VMS systems don't choke on H.265 streams.
• PoE++ (802.3bt Class 3) + DC 12V Dual Power: Class 3 draws <13W typical—you can run six A313 units off a single 802.3bt PoE switch port. DC 12V option lets legacy DC-powered sites adopt new cameras without rewiring; that flexibility shortens retrofit timelines.

Deployment Considerations:

• Board-mount 2.8mm lens is factory-fixed and field non-adjustable. Mount angle, height, and distance must be confirmed on-site before installation; factory reset or lens replacement is your only recourse if the mount geometry drifts. Pole-mount brackets have some vertical/horizontal flex, but once tightened, the angle is set.
• RJ-45 pigtail connector (not standard M12) requires standard Ethernet termination; verify cabling runs and PoE+ switch port capacity before shipment to site. If site has legacy M12-only infrastructure, bring an adapter or budget for pigtail-to-M12 breakout.
• IR range (65m) is nominal in ideal conditions (clear line-of-sight, no fog, dust, or rain). In coastal or high-humidity environments, effective range may drop 10-20%; factor reflective surfaces (fog, sea spray) into coverage planning.
• Operating temperature -40°C to 60°C is wide, but condensation risk rises at thermal extremes. In arctic or desert deployments with rapid day-night swings, consider conformal coating or housing ventilation to avoid lens fogging or connector corrosion.
• Deep learning features (face detection, people counting) require current firmware and UL Cybersecurity Certification compliance; verify version compatibility with your VMS platform before bulk deployment. Milestone and Genetec integrations are smooth; Axis Camera Station adoption is newer and may require firmware updates.

The A313 is the right choice for integrators and end-users speccing hardened perimeter and entry-point surveillance where environmental ruggedness (IP68/IK10), optical WDR performance, and edge analytics matter more than pan-tilt optical zoom. Retail loading docks, municipal fence lines, and industrial outdoor access gates are textbook fits. For high-resolution wide-area coverage or long-range perimeter (300+ meters), step up to a PTZ unit or pair multiple A313s with overlapping coverage. Explore the full ACTi catalog for complementary thermal, turret, and fisheye models.
