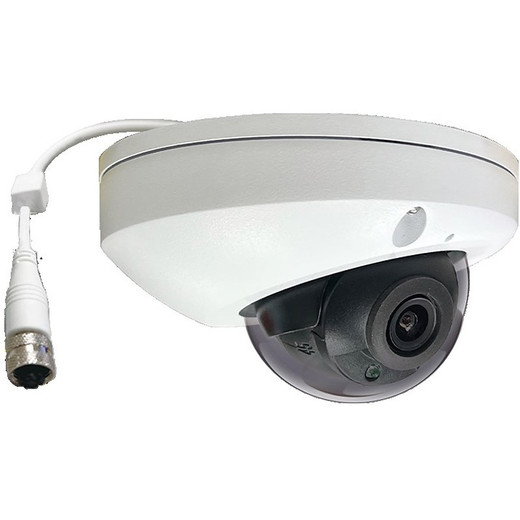

ACTi Z72 4MP Dome Camera
Overview
The ACTi Z72 is a 4MP fixed-lens dome camera built for all-weather surveillance in retail, warehouse, and outdoor environments. The Z72 combines adaptive infrared and wide dynamic range (WDR) processing to deliver usable footage across lighting extremes—from sun-blasted loading docks to complete darkness—without external lighting infrastructure. IP67 and IK10 ratings mean the camera tolerates dust, water ingress, and physical impact, making it suitable for high-traffic areas or uncontrolled outdoor spaces. PoE (802.3af) power eliminates separate infrastructure at the camera location.
Key Specifications
- Resolution and Compression: 4MP sensor with H.265 and H.264 codec support. H.265 cuts bandwidth and storage roughly in half compared to H.264—a real factor on constrained network links or multi-camera recorders running 24/7.
- Adaptive IR and WDR: Integrated infrared activates in low-light and extends into complete darkness; WDR processing handles extreme contrast (bright windows + dark interiors) without artifacts that confuse analytics. Useful when you cannot control scene lighting.
- Rugged Enclosure: IP67 sealing protects against rain, spray, and dust; IK10 impact resistance withstands physical abuse. Essential for outdoor canopies, loading docks, equipment rooms, or retail environments prone to vandalism.
- Fixed Lens (2.8mm f/1.6): 101.1° horizontal field of view. Fixed optics reduce moving parts and maintenance burden compared to varifocal designs, but require careful mounting to frame the target zone.
- Audio and Storage: Built-in microphone for two-way communication or incident documentation. MicroSD slot supports local buffering or clip export without a separate NVR.
- PoE Power Efficiency: Draws under 13W via standard 802.3af PoE—no power-supply strain on switches. Standard Cat5e or Cat6 cabling suffices.
Deployment Context
The Z72 is sized for fixed indoor and semi-outdoor coverage—retail floor entries, lobby corridors, parking structure ceilings, warehouse receiving areas. The dome form factor is low-profile and blends into commercial spaces. If you need long-range detail (parking lots, loading docks >20 feet), consider a higher-megapixel variant or turret form factor in the ACTi catalog. If audio capture or local storage is not required, evaluate lower-cost fixed models without microphone.
