ATEN KE8952T 4K HDMI KVM over IP PoE Transmitter
The ATEN KE8952T is the transmitter half of ATEN's 4K KVM-over-IP matrix system, purpose-built for AV and IT environments where operators need full 4K HDMI video, keyboard, and mouse control delivered across an IP network with sub-5ms latency. If you're centralizing server room or broadcast workstation access — keeping endpoints out of secure data halls while operators work from a remote console — the KE8952T is the source-side device you install at the target computer.
Key Features
- 4K HDMI at 60Hz (4:2:0) and 30Hz (4:4:4): The KE8952T transmits 3840×2160 resolution — enough pixel density to read fine text on a remote server console or manage detailed CAD/broadcast workflows without any perceptible quality loss. The 4:4:4 chroma subsampling mode at 30Hz preserves color accuracy for applications where banding or color shift is unacceptable; the 60Hz 4:2:0 mode is the right call for fluid motion and general IT console work.
- Sub-5ms latency: At under 5ms end-to-end, the KE8952T keeps keyboard and mouse response effectively instantaneous. Operators won't detect input lag during normal server administration, configuration, or media playback — a common pain point with older KVM-over-IP solutions that introduce noticeable cursor drag.
- Dual network interfaces — RJ-45 PoE + SFP: The black RJ-45 port accepts power via 802.3af PoE, eliminating the need for a local power adapter at each transmitter location — a real simplification when you're deploying dozens of units across a structured cabling plant. The SFP slot adds fiber connectivity for long-haul runs or network segments where copper distance limits would otherwise force a mid-span extender.
- PoE 802.3af powered: Drawing power from a standard 802.3af PoE switch means no additional power supplies, no outlet hunting in crowded equipment areas. Any compliant 802.3af switch port will power the KE8952T, and standard PoE budgeting applies — verify your switch's per-port and total PoE wattage before scaling to high unit counts.
- USB keyboard and mouse support: The KE8952T handles USB HID devices natively. Operators at the receiver end get transparent USB keyboard and mouse control of the remote source computer — no driver installation on the target host required for standard HID operation.
- Semi-recessed reset pushbutton: The recessed reset button prevents accidental factory resets during normal rack operations — a small but important design detail in dense rack environments where adjacent cables and panels can inadvertently trigger exposed buttons.
- Remote LED indicator: A single green remote LED gives at-a-glance confirmation of link status, reducing diagnostic time when troubleshooting connectivity between transmitter and receiver units in a matrix deployment.
- Rack and recessed mount support: The KE8952T supports both rack-mount and recessed installation, giving integrators flexibility to co-locate the transmitter at the source computer in a standard 19-inch rack or recess it into structured millwork or AV furniture.
- Firmware field-upgradeable to v2.1.201: The current firmware release (v2.1.201, dated 2025-02-11) is field-installable, meaning units already deployed in production can receive capability and security updates without hardware replacement or RMA. This matters for deployments with long refresh cycles.
- Operating humidity 0–95% RH non-condensing: The KE8952T tolerates the full humidity range typical of data centers, server closets, and broadcast facilities — including high-humidity environments — as long as condensation doesn't form. Not rated for outdoor or condensing environments.
Integration and Compatibility

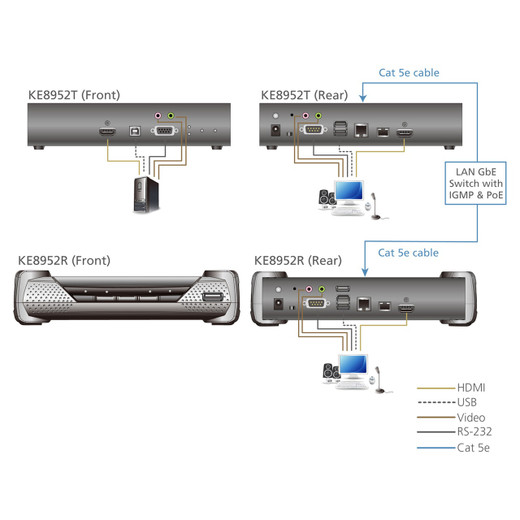

The KE8952T is designed to operate within ATEN's ATEN KVM over IP matrix ecosystem as a transmitter unit, pairing with compatible ATEN receiver units to complete point-to-point or matrix switching deployments. The SFP port enables integration with fiber-based network infrastructure for cross-building or campus-scale KVM extension. For integrators planning a full console management architecture, review ATEN's KVM switch lineup to determine whether a centralized matrix controller is appropriate for the target environment. The dual-LAN design (copper PoE + fiber SFP) means the KE8952T can adapt to mixed-media networks without additional media converters at each node — a tangible cost and complexity reduction in hybrid cable plants. Pair with a PoE switch with sufficient per-port PoE budget to power each transmitter unit. When planning a multi-node matrix, consult ATEN's KVM over IP configuration guides to validate bandwidth, switching latency, and VLAN segmentation requirements for your specific network topology.
Frequently Asked Questions
Q: What video resolution does the KE8952T support?
A: The KE8952T transmits 4K HDMI at 3840×2160 — up to 60Hz in 4:2:0 chroma subsampling for fluid motion, or 30Hz in 4:4:4 for full color accuracy in color-critical applications.
Q: Does the KE8952T require a separate power supply?
A: No. The KE8952T is powered via PoE on the RJ-45 port (802.3af standard), so any compliant 802.3af switch port supplies power. No local power adapter is needed at the transmitter location.
Q: What is the end-to-end latency of the KE8952T?
A: ATEN specifies latency of less than 5ms, which keeps keyboard and mouse response effectively transparent to the operator.
Q: Can the KE8952T connect over fiber?
A: Yes. In addition to the RJ-45 copper port, the KE8952T includes an SFP slot for fiber connectivity — useful for long-distance runs or network segments where copper distance limits apply.
Q: Is the KE8952T firmware field-upgradeable?
A: Yes. ATEN provides firmware updates downloadable from their support portal. The current release is v2.1.201 (2025-02-11), installable in the field without hardware replacement.
Q: What mounting options are available for the KE8952T?
A: The KE8952T supports rack mounting and recessed installation, giving integrators flexibility for both standard 19-inch rack deployments and custom AV furniture or millwork installations.
The KE8952T hits a specific sweet spot in the KVM-over-IP market: dual-interface (802.3af PoE copper + SFP fiber) in the transmitter unit, keeping cabling options open at the source-computer end of the deployment without adding a media converter to the BOM. That sub-5ms latency figure is the number I always check first on KVM-over-IP transmitters — anything above 10–15ms starts to feel sluggish on mouse-heavy workloads, and the KE8952T clears that bar with room to spare.
Technical Highlights:
- 4K 60Hz / 30Hz dual-mode output: 3840×2160 at 60Hz (4:2:0) handles general console work and video monitoring; drop to 30Hz 4:4:4 when color subsampling matters — broadcast grading or color-sensitive design workflows benefit from the full chroma data.
- 802.3af PoE on RJ-45: Standard PoE (not PoE+) powers the unit — plan your switch's PoE budget before deploying at scale. A 24-port 802.3af switch with a 185W total budget powers roughly 14 KE8952T units at full draw, not 24; calculate actual per-port draw from ATEN's published spec before finalizing switch selection.
- SFP slot for fiber runs: The SFP port on the KE8952T extends connectivity beyond copper's 100m Ethernet limit, practical for cross-building studio control rooms or data centers where transmitters and receivers are separated by more than a single cable run.
Deployment Considerations:
- The KE8952T is a transmitter-only unit — you need a compatible ATEN KVM-over-IP receiver at the operator console end to complete the link. Confirm receiver compatibility within ATEN's KE-series matrix before purchasing transmitters in bulk.
- The 802.3af PoE standard caps at 15.4W delivered; verify the KE8952T's actual power consumption from ATEN's full datasheet before sizing switch PoE budgets, particularly in high-density deployments where per-port limits compound quickly.
For broadcast control rooms and secure government or enterprise data center environments — where operators need 4K fidelity over routed IP networks without running dedicated display cables to the server floor — the KE8952T paired with its matching receiver and a managed PoE switch is a clean, low-infrastructure-overhead solution.
