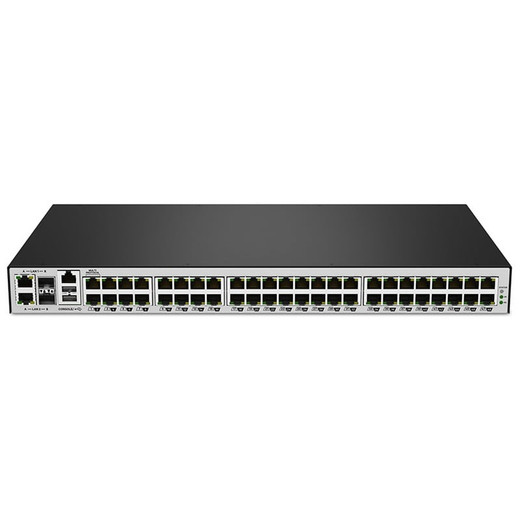

Vertiv ACS8048-NA-DAC-400 48-Port Console Server Dual AC TAA
Overview
The ACS8048-NA-DAC-400 is a 1U rack-mount console server from Vertiv's ACS8000 series, built for out-of-band management of 48 serial devices in data center and enterprise network environments. Dual AC power supplies eliminate single-supply risk on always-on management infrastructure — if one supply fails, the unit keeps every serial session alive without operator intervention. The unit ships TAA-compliant for federal, SLED, and government-contract deployments where country-of-origin restrictions apply.
Compatibility
Integrates into any rack environment requiring serial console access to routers, switches, firewalls, PDUs, or servers via RS-232/RS-422/RS-485 ports. Network uplinks via two 1GbE copper ports (10/100/1000BASE-T) or two SFP fiber ports — use fiber uplinks when the management network runs across a long or electrically noisy run, or when you want physical separation between the management plane and the production LAN. Eight USB 2.0 ports support external storage or peripheral devices; a full-size SD card slot provides local log or config storage without relying on network-attached storage. The unit has no internal modem but supports 4G/LTE connectivity via an external cellular router — pair with a compatible NA-band LTE router for out-of-band access when primary WAN links are down. Fits standard 19-inch EIA racks at 1U height (1.75 in). Part of the Vertiv ACS8000 console server line.
Installation Notes
Maximum input draw is 35W across both supplies — a modest load that won't stress a standard 15A PDU circuit even with multiple units on the same breaker. Unit dimensions are 1.75 in H × 17.25 in W × 9.5 in D and weight is 7.2 lbs; standard 1U shelf or rails required. No internal modem is present — plan for an external LTE router if cellular failover is part of the design. USB hub support is confirmed, allowing downstream USB device expansion from any of the eight USB 2.0 ports. See the full range of data center management solutions for compatible KVM and PDU accessories.
