Middle Atlantic BFD-41 41U Solid Front Door for BGR Series Racks

Overview

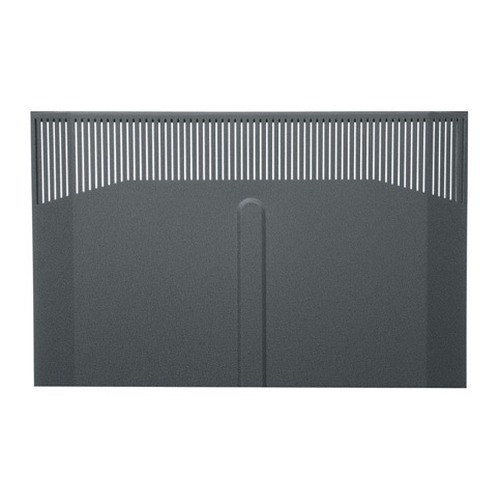

The Middle Atlantic BFD-41 is a 41U solid front door engineered specifically for the BGR series rack enclosure line. At 74.72 inches tall and 25.4 inches wide, it provides full front coverage for a 41-rack-unit bay — securing AV and security infrastructure from casual access while maintaining a clean, professional appearance in any equipment room or head-end closet. If you are speccing a Middle Atlantic rack enclosure and need a door that ships as a separate or replacement component, BFD-41 (often searched as BFD 41) is the part number to order.

Solid doors are the practical choice when your rack contains equipment that does not require significant front-to-back airflow through the door panel itself — think patch panels, cable management, UPS units, and control systems. For NVRs and servers that run hot and need convective airflow through a vented panel, a perforated or mesh door would be a different selection. The solid panel here is about physical access control and aesthetics, not ventilation.

Key Features

• 41U / 74.72-inch height: Matches the full face of a 41-rack-unit BGR enclosure — no gaps at top or bottom, no partial coverage that looks improvised. Installers working on tall floor-standing rack enclosures need the door to align precisely with the frame, and the 74.72-inch panel height is sized exactly for that.
• 25.4-inch width (64.5 cm): Covers the full front face of the BGR frame width. Oversized doors bind; undersized doors leave frame rails exposed. This dimension is purpose-matched to the BGR series so the fit is accurate without field modification.
• 1.41-inch depth profile: At just over an inch of projection from the rack face, the door adds minimal depth to the enclosure footprint — relevant in tight IDF closets or wall-recessed rack alcoves where every inch of clearance matters for cable routing around the front of the frame.
• Textured black powder coat finish: The textured surface hides fingerprints and minor scuffs better than a gloss finish — a practical consideration in operational environments where technicians open the door repeatedly during a project. The finish is consistent with standard rack aesthetics in broadcast, security, and enterprise AV installations.
• Integrated handles: Door handles are included, so you are not sourcing hardware separately or improvising a grip for a door that weighs 40 lbs (shipping weight). Proper handles matter on a door this size — easier to swing open cleanly without stressing the hinge attachment points.
• BGR series compatibility: Designed specifically for the BGR base series, which means the mounting points, swing clearance, and latch geometry are matched to that enclosure family. Mixing door models across rack series is a common source of misaligned hardware — specifying BFD-41 for a BGR frame eliminates that risk.
• 40 lb shipping weight: Factor this into lift planning during installation. A two-person hang is the right call when attaching a door of this size and weight to a frame that may not yet be fully anchored. Staging the door installation after the cabinet is bolted to floor rails prevents the enclosure from tipping during the hang.

Integration & Compatibility

The BFD-41 is purpose-built for the BGR enclosure series from Middle Atlantic. Verify your base enclosure model number begins with BGR before ordering — Middle Atlantic produces multiple rack frame series (WRK, BGR, WMRK among others) and door components are not universally cross-compatible across series. Dimensions are: 74.72 in H × 25.4 in W × 1.41 in D. If you are building out a complete rack system and need to pair this door with rack accessories such as cable management panels, side panels, or vented top caps, confirm those are also specified for the BGR series to ensure consistent fitment.

For security integrators deploying this in an equipment room alongside NVRs, managed switches, and access control panels, the solid door provides a basic physical access deterrent. It is not a locking security door in the traditional sense — if card-access or key-lock control of the rack itself is required, evaluate Middle Atlantic enclosure options that include integrated locking hardware. This door component addresses aesthetics and incidental access prevention, not hardened physical security.

Frequently Asked Questions

Q: What rack series is the BFD-41 compatible with?

A: The BFD-41 is designed for the BGR base series rack enclosures from Middle Atlantic. Verify your enclosure model number begins with BGR before ordering — door fitment is series-specific and not universally interchangeable across Middle Atlantic's product lines.

Q: Is the BFD-41 a solid or vented door?

A: Solid. The BFD-41 provides full coverage with no perforations or mesh panels. If front-to-back airflow through the door is required for thermal management of your rack equipment, consider a vented or mesh front door option instead.

Q: What are the exact dimensions of the BFD-41?

A: Height: 74.72 in (189.8 cm), Width: 25.4 in (64.5 cm), Depth: 1.41 in (3.6 cm). Shipping weight is 40 lbs (18.1 kg).

Q: Does the BFD-41 include handles?

A: Yes. Handles are included with the door — no separate hardware sourcing required.

Q: What finish does the BFD-41 have?

A: Textured black powder coat. The textured surface resists visible fingerprints and minor surface wear better than a gloss finish in active equipment room environments.

Q: How many rack units does the BFD-41 cover?

A: 41 rack units (41 RU), corresponding to the full height of a 41U BGR enclosure at 74.72 inches.
