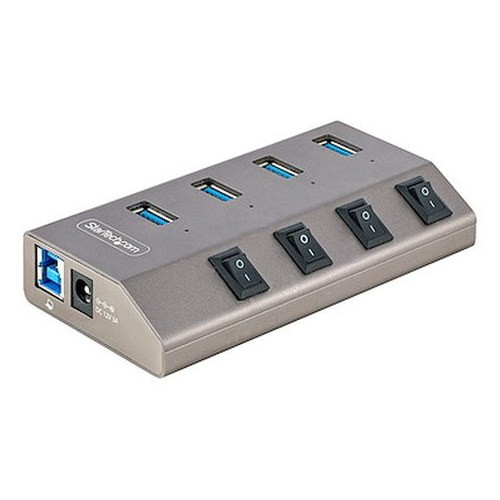

StarTech 5G4AIBS-USB-HUB-NA 4-Port USB 3.2 Gen 1 Hub with Individual Port Switches

Overview

The StarTech 5G4AIBS-USB-HUB-NA is a compact, aluminum-bodied USB 3.2 Gen 1 hub that expands a single host USB Type-B port into four powered USB 3.2 Type-A ports, each governed by its own on/off switch. At 5 Gbps per port, it delivers full SuperSpeed throughput to every connected device simultaneously — without the compromises of bus-powered or switch-less hubs. If you're running a workstation-side deployment where you need to power-cycle individual peripherals (external drives, USB capture cards, security dongles) without rebooting the host, this hub is built for exactly that workflow. The 36W included power adapter means the hub can deliver 7.5W per port — enough headroom for demanding devices that a typical bus-powered hub simply cannot sustain.

Measuring just 4.5 × 2.3 × 0.8 inches and weighing 4.5 oz, this hub sits flat on a desk, mounts cleanly in a rack-side accessory shelf, or tucks behind a monitor stand. The aluminum housing dissipates heat more effectively than plastic enclosures, which matters when multiple high-current devices are running continuously. For integrators working with StarTech connectivity products, this hub fits naturally into the same controlled-environment deployment philosophy as the rest of the line.

Key Features

• 5 Gbps USB 3.2 Gen 1 throughput per port: Each of the four USB 3.2 Type-A ports runs at full SuperSpeed 5 Gbps — not shared across the hub. That means a USB 3.2 SSD on port 1 doesn't throttle the capture device on port 2. Critical when you're pulling footage off multiple storage devices simultaneously or running concurrent USB 3.2 peripherals at a security workstation.
• Individual port on/off switches: Each port has a dedicated power switch, so you can hard-reset a misbehaving USB dongle or storage device without disconnecting the cable or rebooting the host system. In 24/7 operations environments — dispatch centers, NOC workstations, monitoring suites — this eliminates unnecessary system downtime for single-device resets.
• 7.5W per port from the 36W external adapter: The included 36W, 12V DC / 3A power supply provides enough headroom to drive 7.5W to every port simultaneously. Compare that to the 2.5W ceiling of a bus-powered hub — devices like portable SSDs, USB-powered cooling fans, and active USB capture adapters all need more than a bus-powered hub can supply. With this hub, you're not rationing power between ports.
• USB 3.2 Type-B host connection with 3.3 ft cable included: The upstream Type-B connector uses the included 3.3 ft host cable — long enough to reach a tower workstation under a desk or a rack-mounted server. No hunting for a compatible cable; the correct length ships in the box.
• Universal AC input (100–240V) on the power adapter: The power supply accepts any standard AC voltage, so this hub can be deployed in North American environments or internationally without a separate step-down transformer. Useful for organizations standardizing on one hub SKU across facilities in multiple regions.
• Aluminum construction: Metal housing versus comparable plastic hubs means better passive heat dissipation when all four ports are loaded with high-current devices over long shifts. The aluminum body also resists the flex and cracking that occurs when plastic hubs are repeatedly picked up, moved, and set down in field deployments.
• OS-independent operation: No driver installation required. The hub enumerates on Windows, macOS, Linux, and any OS with native USB 3.x support — deploy it in mixed-OS environments or alongside embedded systems without a compatibility headache.
• 50,000-hour MTBF: At continuous operation, that's over 5.7 years of rated reliability — appropriate for a device that will sit powered on 24/7 in a control room or security operations center.
• Operating temperature 0°C to 40°C: Suitable for standard indoor controlled environments. Not rated for unheated spaces or outdoor enclosures — plan hub placement inside climate-controlled rooms accordingly.

Integration and Compatibility

The 5G4AIBS-USB-HUB-NA connects to any host with a USB 3.2 Type-B receptacle or a Type-A port using the appropriate cable. Because the hub is OS-independent, it integrates directly into security workstations running Windows-based VMS platforms, Linux NVR appliances, or macOS-based editing and review stations. Integrators deploying USB hubs for workstation connectivity in video surveillance environments will find the per-port switching particularly useful for managing USB licensing dongles — a dongle that hangs can be power-cycled on the hub without disturbing the VMS session running on the host. For environments where multiple USB 3.2 storage devices are hot-swapped regularly (pulling footage from body cameras, importing SD card readers, connecting external archiving drives), the 7.5W-per-port power budget and individual switches make this a practical choice. Review your USB connectivity planning guide to size hub capacity against your workstation's total peripheral load. Pair this hub with a USB extension cable if your host port is more than 3.3 ft away from the ideal hub placement position.

Frequently Asked Questions

Q: Does the 5G4AIBS-USB-HUB-NA require any drivers to operate?

A: No. The hub is OS-independent and uses native USB 3.x drivers built into Windows, macOS, Linux, and most other operating systems. No additional driver installation is required.

Q: How much power can each port deliver simultaneously?

A: Each of the four USB Type-A ports can deliver 7.5W. The included 36W external power adapter (12V DC, 3A) provides enough total capacity to supply all four ports at full load simultaneously.

Q: Can I use the individual port switches to power-cycle a device without unplugging it?

A: Yes. Each port has its own dedicated on/off switch. Toggling a port off and back on cuts and restores power and data to that port only, allowing a hard reset of that connected device without affecting the other three ports or the host connection.

Q: What is the warranty on the 5G4AIBS-USB-HUB-NA?

A: StarTech provides a 2-year manufacturer warranty on this product.

Q: What host cable does the hub use, and is it included?

A: The hub uses a USB 3.2 Type-B upstream connection. A 3.3 ft (1m) host cable is included in the box.

Q: Is this hub suitable for outdoor or unheated space installation?

A: No. The rated operating temperature is 0°C to 40°C (32°F to 104°F), making it appropriate for standard indoor climate-controlled environments only. Unheated or outdoor deployments are outside the rated operating range.

Karl Wilson

The spec that stands out to me on the 5G4AIBS-USB-HUB-NA is the 7.5W-per-port power output backed by a dedicated 36W external supply. Most four-port USB hubs on a workstation desk are bus-powered — they cap out at around 2.5W per port shared across the hub, which causes enumeration failures and intermittent disconnects the moment you plug in a portable SSD or an active USB capture adapter. This hub sidesteps that entirely, and the per-port switching makes it genuinely useful in a live operations environment rather than just a desk tidying accessory.

Technical Highlights:

• 7.5W per port / 36W total: The external 12V DC, 3A power adapter supplies dedicated power — not borrowed from the host. Four high-current USB devices can run simultaneously without any port being starved, which eliminates the frustrating intermittent-disconnect pattern common with bus-powered hubs under load.
• Individual port switches: Per-port hardware switching lets you hard-reset a specific device — a hung USB dongle, a misbehaving capture card — without touching the host session or the other three ports. In a 24/7 control room that can't afford a full workstation reboot, this is a real operational advantage.
• 50,000-hour MTBF with aluminum housing: Rated for over 5.7 years of continuous operation, and the aluminum body handles thermal load better than plastic in enclosed rack-side or monitor-stand mounting scenarios where airflow is limited.

Deployment Considerations:

• The 3.3 ft included host cable is adequate for a desktop workstation but may fall short if the hub needs to reach a rack-mounted server or a tower positioned more than arm's length away — measure your run before install and source a USB 3.2 Type-B extension if needed.
• Operating range tops out at 40°C — plan hub placement inside climate-controlled rooms. Wiring closets, server rooms running hot, or enclosures without active cooling can push past that ceiling under sustained load.

This hub is the right fit for a security operations workstation where multiple USB 3.2 storage devices, licensing dongles, and capture adapters are connected simultaneously and a hard-reset capability per device is a genuine operational requirement — not an edge case.
