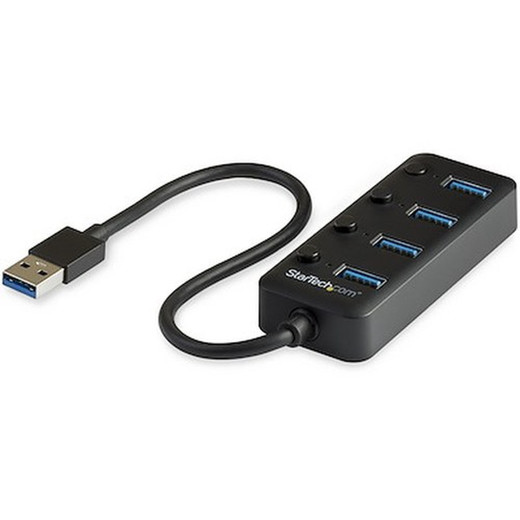

StarTech HB30A4AIB 4-Port USB 3.0 Hub with Individual Port Switches

Overview

The StarTech HB30A4AIB is a compact, bus-powered 4-port USB 3.2 Gen 1 hub that gives you per-port power switching without requiring a separate power supply. At 5 Gbps throughput on each of its four USB Type-A ports, it handles high-bandwidth peripherals — external drives, USB devices, capture cards, or security accessories — without creating a bottleneck at the host connection. The slim form factor (12.8 in × 1.4 in × 0.8 in) means it lays flat on a desk or mounts cleanly along a workstation edge without taking up meaningful real estate. If you've ever wanted to cut power to a single USB device without unplugging it or rebooting, the individual port switches on the HB30A4AIB are the direct answer.

Key Features

• 5 Gbps USB 3.2 Gen 1 per port: Each port runs at SuperSpeed USB 3.0 rates — fast enough to push an external SSD at near-full speed or stream uncompressed video capture data without dropping frames. You're not sharing a single slow pipe across all four ports the way older 2.0 hubs did.
• Individual port power switches: Each port has its own physical on/off switch. This means you can power-cycle a misbehaving USB device, disable a port entirely to prevent unauthorized device insertion, or simply cut power to idle peripherals — none of which require pulling a cable or touching host software.
• Bus-powered via host USB — no adapter required: The hub draws its 5V DC supply directly from the host port over the included 9.8 in (250 mm) cable. No wall adapter, no cable management headache. That said, bus power sets a ceiling on how much current is available across all four ports simultaneously — power-hungry devices like external spinning drives may need a self-powered alternative.
• 4× USB Type-A ports: All four downstream ports are standard Type-A, which covers the overwhelming majority of USB peripherals — flash drives, dongles, keyboards, barcode scanners, and USB-to-serial adapters — without requiring adapters.
• Compact, low-profile chassis: At 1.5 oz (43 g) and measuring just 0.8 in tall, this hub sits flat without obstructing adjacent ports or airflow paths. The 12.8 in length spreads the four ports enough that wide USB connectors won't block neighbors.
• Operating range 0°C to 55°C: Covers standard indoor commercial and industrial environments. Not rated for outdoor or uncontrolled-temperature deployments, but adequate for server rooms, workstations, and equipment racks operating within normal HVAC-controlled limits.
• 2-year manufacturer warranty: Two years of coverage on a peripheral that sees daily connect/disconnect cycles is a meaningful signal of build confidence for a commercial deployment.

Integration and Compatibility

The HB30A4AIB connects to any host system with a USB Type-A port running USB 3.2 Gen 1, USB 3.1 Gen 1, or USB 3.0 — those three designations describe the same 5 Gbps standard under different naming conventions. It is backward-compatible with USB 2.0 and USB 1.1 hosts, though throughput drops to the host port's rated speed. The hub is bus-powered, so host systems must supply adequate current on the upstream port — most modern desktop and laptop USB ports meet this requirement, but underpowered embedded systems or thin clients with strict per-port current limits may not sustain all four downstream ports at full load simultaneously.

For security workstation builds or NVR operator stations where you need to connect a mix of USB dongles, a keyboard, and perhaps a USB-to-serial adapter for legacy hardware, this hub fits cleanly into that role. Pair it with a KVM switch if you're consolidating peripherals across multiple hosts. If your deployment requires powering devices that draw more than standard bus power, review the device current requirements against your host port's output before committing to a bus-powered hub.

Integrators building out workstation peripheral management setups should note that the individual port switches add a hardware-level control layer that software USB disablement alone does not provide — useful in environments where port lockdown is a physical security consideration, not just a policy one.

Frequently Asked Questions

Q: Does the HB30A4AIB require an external power supply?

A: No. The HB30A4AIB is fully bus-powered — it draws 5V DC directly from the host USB port through the included 9.8 in cable. No wall adapter is needed. Keep in mind that bus power limits total current available across all four ports; high-draw devices like spinning hard drives may require a self-powered hub instead.

Q: What does USB 3.2 Gen 1 mean, and is it the same as USB 3.0?

A: Yes, USB 3.2 Gen 1, USB 3.1 Gen 1, and USB 3.0 are all the same 5 Gbps standard — the naming changed across USB specification revisions but the underlying performance is identical. The HB30A4AIB operates at 5 Gbps on each port and is backward-compatible with USB 2.0 and USB 1.1 devices.

Q: What do the individual port switches actually do?

A: Each switch cuts power and data to that specific port independently. You can power-cycle a misbehaving device, disable unused ports to block unauthorized device insertion, or save power on idle peripherals — all without unplugging cables or accessing host software.

Q: What is the warranty on the HB30A4AIB?

A: StarTech covers the HB30A4AIB with a 2-year manufacturer warranty.

Q: Can I use this hub with USB 2.0 devices?

A: Yes. The HB30A4AIB is backward-compatible with USB 2.0 and USB 1.1 devices. Those devices will operate at their native speed (480 Mbps for USB 2.0), not at 5 Gbps — that is expected behavior, not a defect.

Q: What are the physical dimensions of the HB30A4AIB?

A: The hub measures 12.8 in (32.5 cm) long × 1.4 in (3.5 cm) wide × 0.8 in (1.9 cm) tall, and weighs 1.5 oz (43 g). The attached upstream cable is 9.8 in (250 mm) long.

Karl Wilson

The feature I keep coming back to on the HB30A4AIB is the per-port physical switching — not because it's exotic, but because it solves a real problem on security workstations and NVR operator consoles where you want hardware-level port control without relying on OS-level USB disablement policies that can be overridden or don't survive reboots. At 5 Gbps per port over USB 3.2 Gen 1, throughput is not a limiting factor for the typical peripheral mix on this kind of station.

Technical Highlights:

• 5 Gbps per port: Full SuperSpeed throughput on each of the four Type-A ports — enough headroom for external storage, video capture dongles, or high-speed USB-to-Ethernet adapters without the hub becoming the choke point.
• Bus-powered at 5V DC: Zero additional wiring. The 9.8 in fixed cable routes cleanly to a host port without excess slack, which matters in tight rack-mount or under-desk installations where cable management is already strained.
• Operating temp 0°C to 55°C: Covers standard HVAC-controlled security operations centers and server rooms without qualification. You won't be deploying this outdoors, and you shouldn't need to.

Deployment Considerations:

• Bus power is the design constraint to plan around: if your operator station has multiple power-hungry USB devices (external drives, powered capture cards), check the host port's rated current output before assuming all four ports can run at full load simultaneously.
• The 9.8 in upstream cable is fixed — not removable. If your host port is more than about 10 inches away from where you want the hub to sit, plan for a USB extension or reconsider placement; you can't swap in a longer upstream cable.

For a security operations workstation or NVR console where the operator needs to connect a mix of USB license dongles, a keyboard, a barcode scanner, and occasional storage — and where disabling a port quickly without touching the OS matters — the HB30A4AIB fits that role cleanly at minimal cost and zero rack-unit impact.
