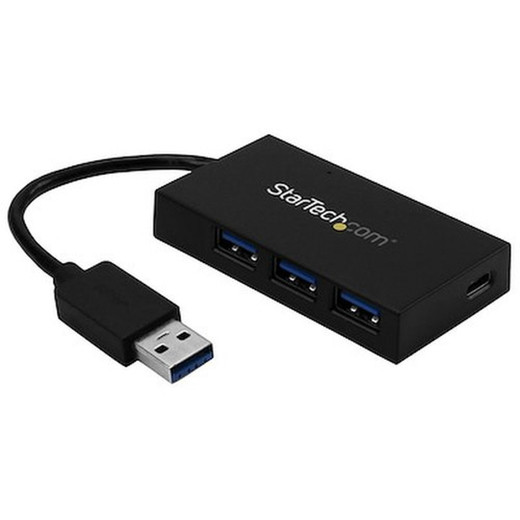

StarTech HB30A3A1CFB 4-Port Bus-Powered USB 3.2 Gen 1 Hub

Overview

The StarTech HB30A3A1CFB is a compact, bus-powered USB hub designed for laptop users and desk deployments where adding peripheral ports without a power adapter is the priority. It expands a single USB Type-A host port into three USB-A downstream ports and one USB-C port — all running at USB 3.2 Gen 1 speeds (5 Gbps) — making it a practical fit for field technicians, mobile workstations, and tidy desk setups where cable clutter is a genuine problem. At 3.0 in long and weighing just 1.4 oz, the HB30A3A1CFB slips into a laptop bag without adding meaningful bulk.

Because it draws all operating power directly from the host USB port, there is no power brick to source or lose. That convenience comes with a tradeoff worth understanding before you order: the 4.5W shared power budget across all four ports means this hub is suited for low-draw peripherals like keyboards, mice, flash drives, and barcode scanners — not for charging phones at speed or powering bus-hungry external drives simultaneously.

Key Features

• USB 3.2 Gen 1 at 5 Gbps: Each port operates at 5 Gbps — ten times the throughput of USB 2.0. Transferring a 10 GB surveillance clip or large file archive takes seconds rather than minutes, which matters when you are pulling footage from a local storage device in the field.
• Mixed Port Layout (3x USB-A + 1x USB-C): The single USB-C downstream port means you can connect a modern peripheral — a USB-C flash drive, a compact SSD, or a USB-C capture dongle — without carrying a separate adapter. The three USB-A ports handle legacy peripherals in parallel.
• Bus-Powered via 5.5 in Integrated Cable: The 5.5-inch attached host cable keeps the hub close to the laptop port without a dangling cord, and eliminates the need for a separate power supply. Deploy it anywhere without hunting for an outlet — useful in vehicle mounts, temporary command posts, or field kits.
• 4.5W Shared Power Output: Enough to run four low-draw USB devices simultaneously. Plan your connected peripherals accordingly — if one device needs more than roughly 1W sustained (e.g., a bus-powered hard drive), attach only that device and limit the others to passive peripherals.
• Compact Form Factor (3.0 x 1.6 x 0.5 in): The slim plastic housing fits in a shirt pocket. At 1.4 oz it adds essentially nothing to a field kit, and the low-profile 0.5-inch height keeps it clear of adjacent laptop ports on tight chassis layouts.
• Operating Temperature 0°C to 60°C: Handles typical office, vehicle cab, and light industrial environments without thermal concerns. Not rated for outdoor or sub-zero storage while powered — storage down to -20°C is acceptable, but do not expect it to initialize reliably in freezing ambient conditions while in use.
• 2-Year Manufacturer Warranty: StarTech backs the HB30A3A1CFB with a 2-year warranty, which aligns with standard IT accessory coverage expectations for B2B procurement.

Integration and Compatibility

The HB30A3A1CFB connects to any host with a standard USB Type-A port running USB 3.2 Gen 1, USB 3.1, USB 3.0, or USB 2.0 (backward compatible, though speeds drop to the host's maximum on older ports). It is OS-agnostic — Windows, macOS, Linux, and ChromeOS hosts recognize it as a standard USB hub with no driver installation required. In security integration contexts, it pairs well with USB hubs and peripheral expansion strategies for mobile workstations running VMS client software, allowing a technician to simultaneously connect a USB dongle, a programming cable, a backup drive, and a mouse from a single laptop port. For integrators building out NVR-based surveillance systems or camera configuration stations, the HB30A3A1CFB provides a no-fuss way to connect multiple USB config tools without occupying multiple host ports. Note that it is not a charging hub — downstream device charging is limited to the shared 4.5W bus budget, so do not spec it for tablet or smartphone charging in a client-facing kiosk. For higher-power peripheral needs, consider a powered USB hub with a dedicated AC adapter instead.

Frequently Asked Questions

Q: Does the HB30A3A1CFB require a separate power adapter?

A: No. It is fully bus-powered — it draws all operating power from the host USB Type-A port. No external power supply is needed or included.

Q: Can I charge my phone or tablet through the HB30A3A1CFB?

A: Not at meaningful speed. The hub shares 4.5W across all four downstream ports. That is enough for passive peripherals and low-draw devices, but insufficient for fast-charging a smartphone or powering a bus-hungry external hard drive. For charging use cases, a powered hub with a dedicated AC adapter is the correct choice.

Q: Is the HB30A3A1CFB compatible with USB 2.0 host ports?

A: Yes, it is backward compatible. Connect it to a USB 2.0 port and it will function, but throughput will be limited to USB 2.0 speeds (480 Mbps). To get the full 5 Gbps, your host port must support USB 3.0 or higher.

Q: What is the warranty on the HB30A3A1CFB?

A: StarTech provides a 2-year manufacturer warranty on the HB30A3A1CFB.

Q: What operating temperatures does the HB30A3A1CFB support?

A: Operating range is 0°C to 60°C (32°F to 140°F). Storage temperature range is -20°C to 60°C. It is not rated for powered operation in sub-zero ambient temperatures.

Q: How many devices can I connect simultaneously?

A: Up to four — three via USB-A ports and one via the USB-C port. All four can operate concurrently, subject to the shared 4.5W power constraint. Low-draw peripherals like keyboards, mice, flash drives, and small USB dongles will coexist without issue.

Karl Wilson

The spec I pay attention to first on any bus-powered hub is the shared power budget, and on the HB30A3A1CFB that number is 4.5W across all four ports. That single figure tells you exactly where this hub fits and where it does not — and it is worth being direct about that before a buyer discovers it on a job site.

Technical Highlights:

• 5 Gbps USB 3.2 Gen 1: Full 5 Gbps throughput on all four ports means pulling a 10 GB config backup or firmware image from a USB drive takes seconds, not minutes — a real time saver during multi-camera commissioning runs.
• Mixed USB-A / USB-C downstream layout: The single USB-C port on the HB30A3A1CFB eliminates a common adapter scramble when connecting a modern USB-C programming dongle or compact SSD alongside legacy USB-A tools — all from one hub.
• 1.4 oz / 3.0 in form factor: Small enough to live permanently in a field kit pouch without adding weight. The 5.5-inch integrated cable is the right length to bridge a laptop port without creating slack to manage.

Deployment Considerations:

• The 4.5W shared budget works cleanly for a mouse, a USB config dongle, a flash drive, and a small USB scanner running together — but add a bus-powered 2.5-inch hard drive and you will likely see intermittent disconnects. Know your peripheral draw before specifying this hub.
• Operating floor is 0°C — this hub is not suitable for powered use in cold-storage or outdoor sub-zero environments. Storage down to -20°C is fine, but it should be warmed to room temperature before initialization in cold-chain deployments.

The HB30A3A1CFB is the right call for a laptop-based VMS configuration station or a mobile security technician's field kit where the goal is clean peripheral expansion — not high-power device charging. Spec a powered hub if any attached device draws more than roughly 1W sustained.
